B&R COMPACT PLC

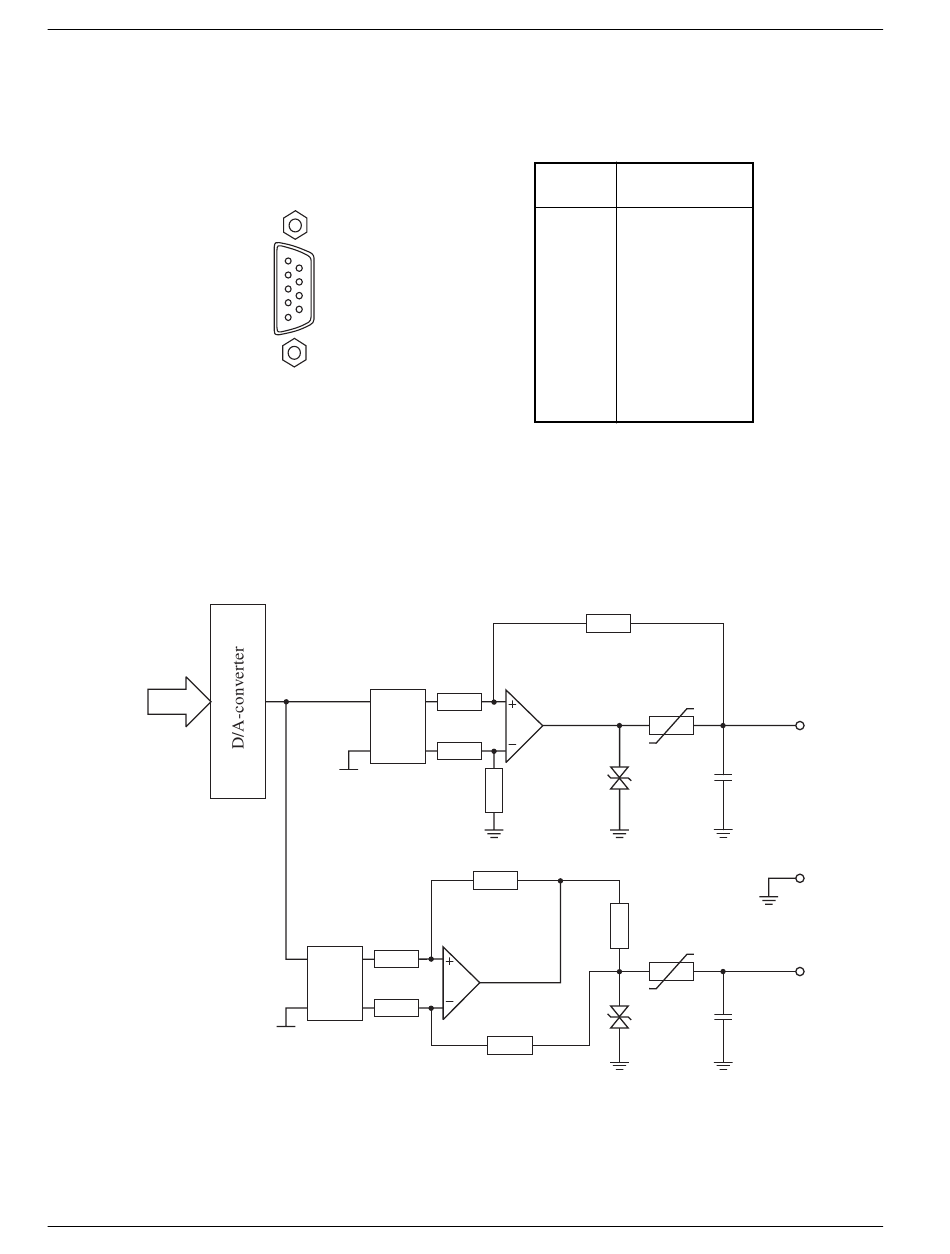

13.2 PIN-OUTS
9 pin D-type (female)
13.3 OUTPUT CIRCUIT
Address,
data
and
control bus
- 170 -
1
6
9
5
Filter
Filter
Pin Assignment
1 V output 1
2 I output 1
3 n.c.
4 V output 2
5 I output 2
6 GND
7 n.c.
8 n.c.
9 GND
PTC
PTC
V output
GND
I output
