B&R COMPACT PLC

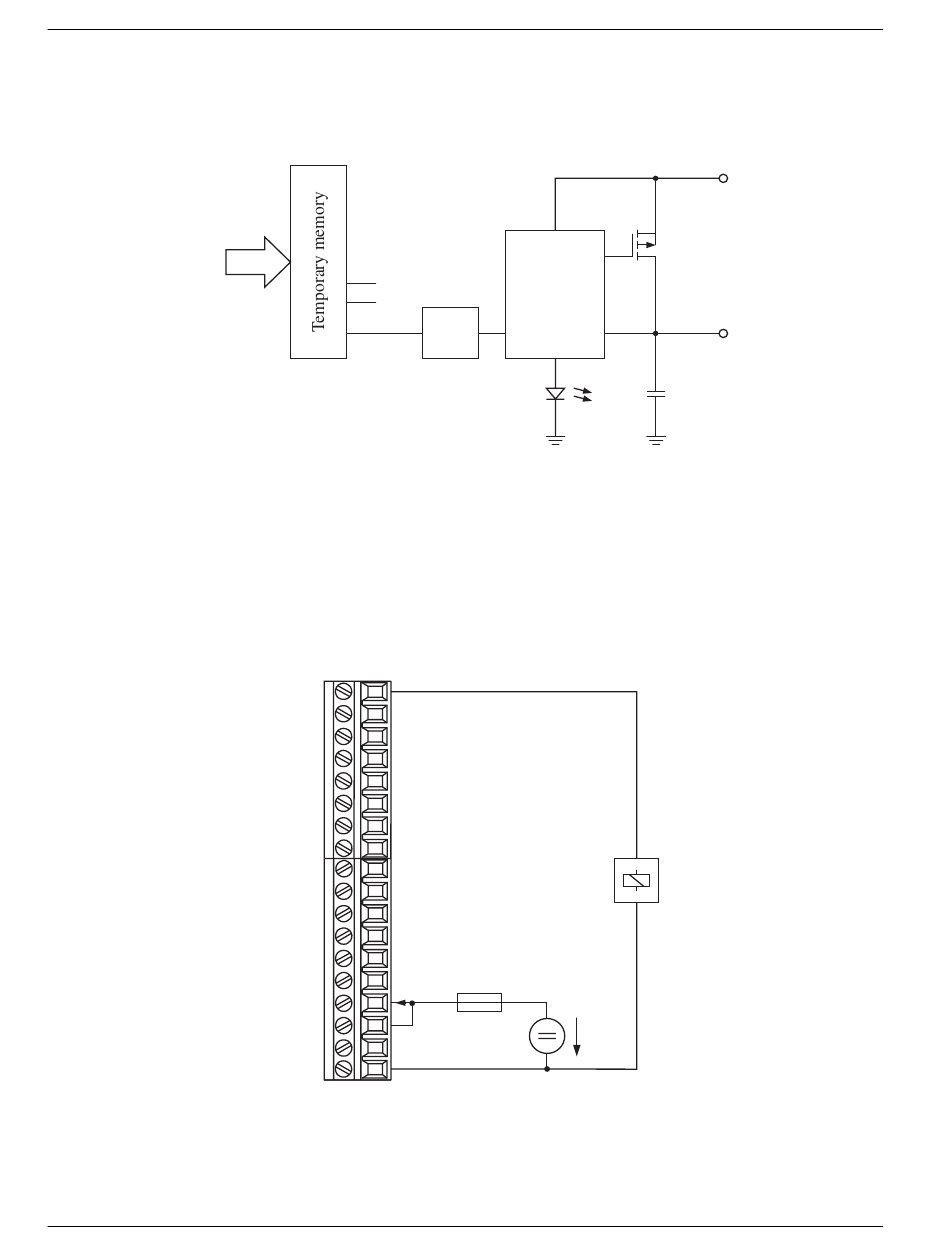

11.2 OUTPUT CIRCUIT

Address,
data
and
control bus
11.3 WIRING
Another wiring diagram is shown in section "7. Power Supply".
+24 V OUTPUTS
+24 VDC PLC
- 150 -
14 x
Filter
0
1
2
3
4
5
6
7
8
9
A
B
C
I 10 A slow
D
O
GND
GND
V ... 24 VDC / 1 A + I
I ... Total current of all outputs
O
Controller
LED
Relay
V
O
+24 V
Outputs
O 0-D
