Installation Orientation

Install the Inverter vertically so as not to reduce the cooling effect. When installing the Inverter,
always provide the following installation space to allow normal heat dissipation.
50mm min.
Air
120mm min.
30mm min.
30mm min.
120mm min.
50mm min.
Air

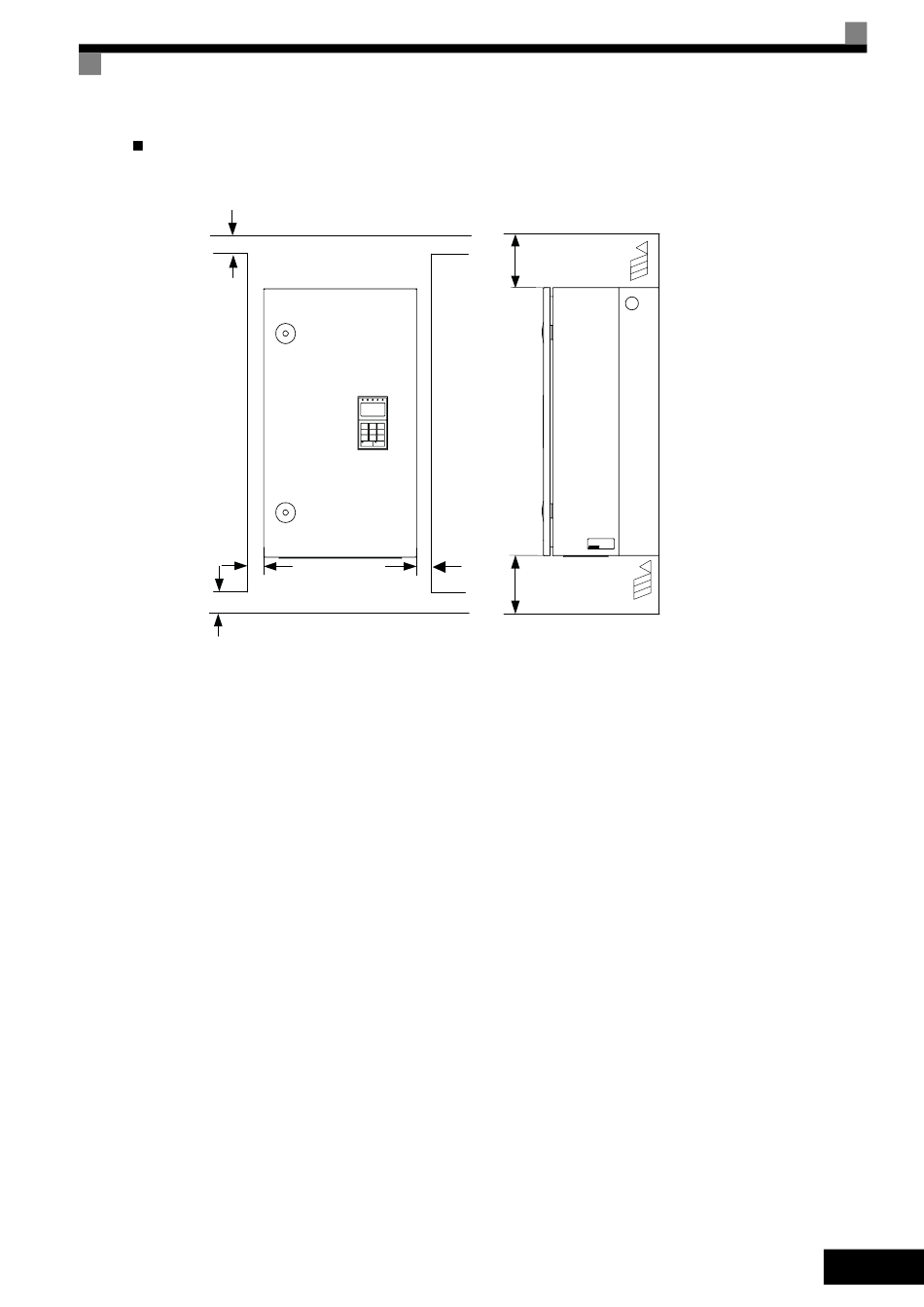

Horizontal Space
Vertical Space
Fig 1 Installation Space
