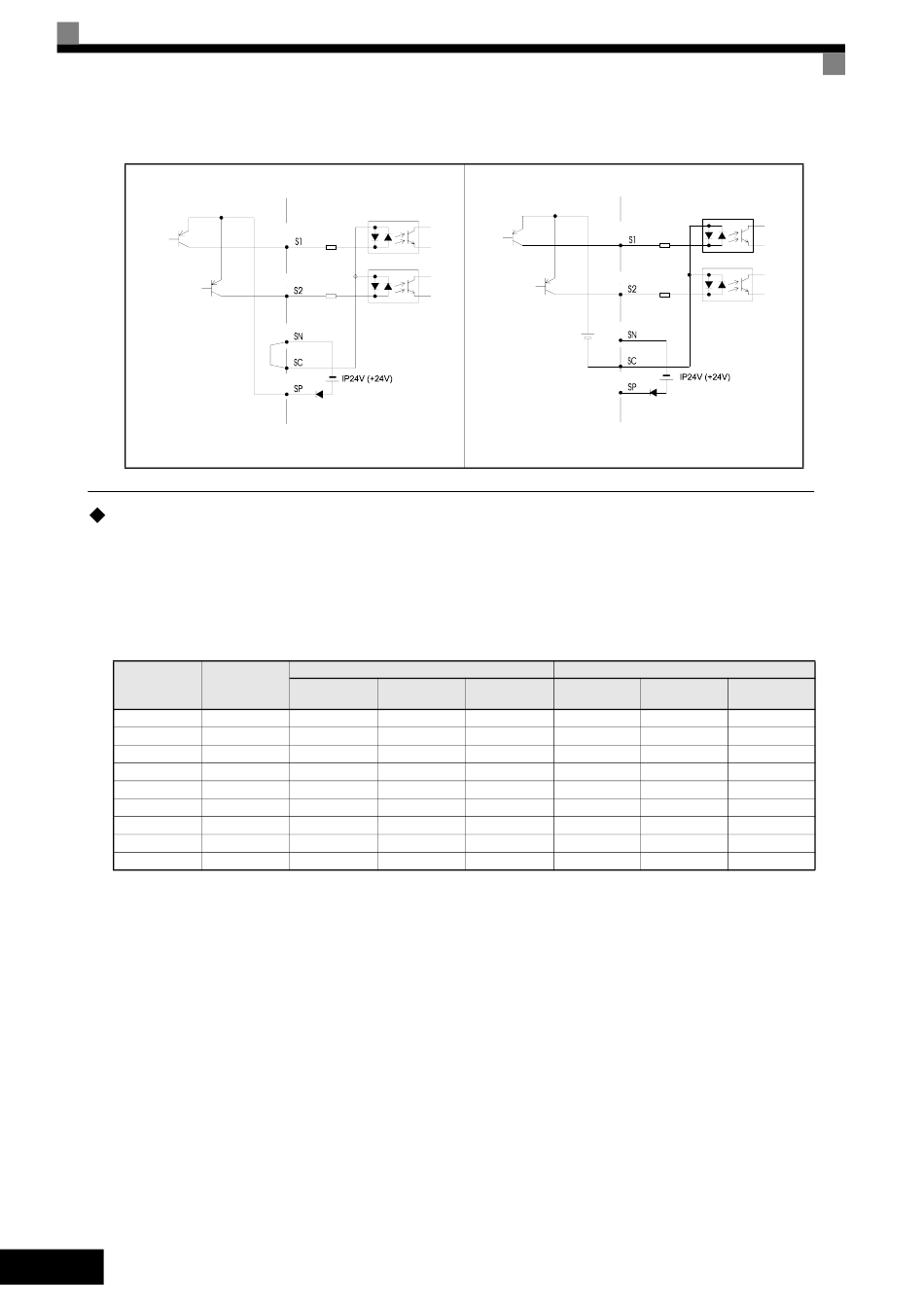

Internal Power Source - Sourcing Mode (PNP)

Wiring Main Circuit Inputs

Installing Fuses
To protect the inverter, it is recommended to use semiconductor fuses like they are shown in the
table below.
Inverter Type
47P5
4011
4015
4018
4022
4030
4037
4045
4055
Consider the following precautions for the main circuit power supply input.
•
If a moulded case circuit breaker is used for the power supply connection (R/L1, S/L2, and T/L3),
ensure that the circuit breaker is suitable for the Inverter.
•
If an earth leakage breaker is used, it should be able to detect all kinds of current should be used
in order to ensure a safe earth leakage current detection
•
A magnetic contactor or other switching device can be used at the inverter input. The inverter
should not be powered up more than once per hour.
•
The input phases (R/S/T) can be connected in any sequence.
•
If the Inverter is connected to a large-capacity power transformer (600 kW or more) or a phase
advancing capacitor is switched nearby, an excessive peak current could flow through the input
power circuit, causing an inverter damage. As a countermeasure install an optional AC Reactor
at the inverter input or a DC reactor at the DC reactor connection terminals.
•
Use a surge absorber or diode for inductive loads near the Inverter. Inductive loads include mag-
netic contactors, electromagnetic relays, solenoid valves, solenoids, and magnetic brakes.
EN-11
Table 3 Sinking / Sourcing Mode and Input Signals
Table 4 Input Fuse Selection
Rated Inverter Fuse Selection
Output
Voltage (V)
Current (A)
17 480
24 480
31 480
39 480
45 480
60 480
75 480
91 480
112 480
External Power Source - Sourcing Mode (PNP)
External +24 V
2 2
Current (A)
I t (A s)
30 100~640
50 150~1300
60 400~1800
70 700~4100
80 240~5800
100 500~5800
125 750~5800
150 920~13000
150 1500~13000
Selection Example (Ferraz)
Model Rating
A60Q30-2 600V / 30A
A70P50-4 700V / 50A
A70P70-4 700V / 70A
A70P80-4 700V / 80A
A70P80-4 700V / 80A
A70P100-4 700V / 100A
A70P125-4 700V / 125A
A70P150-4 700V / 150A
A70P200-4 700V / 200A
2 2
I t (A s)
132
300
590
770
770
1200
1900
2700
4800
