12.8 Torch

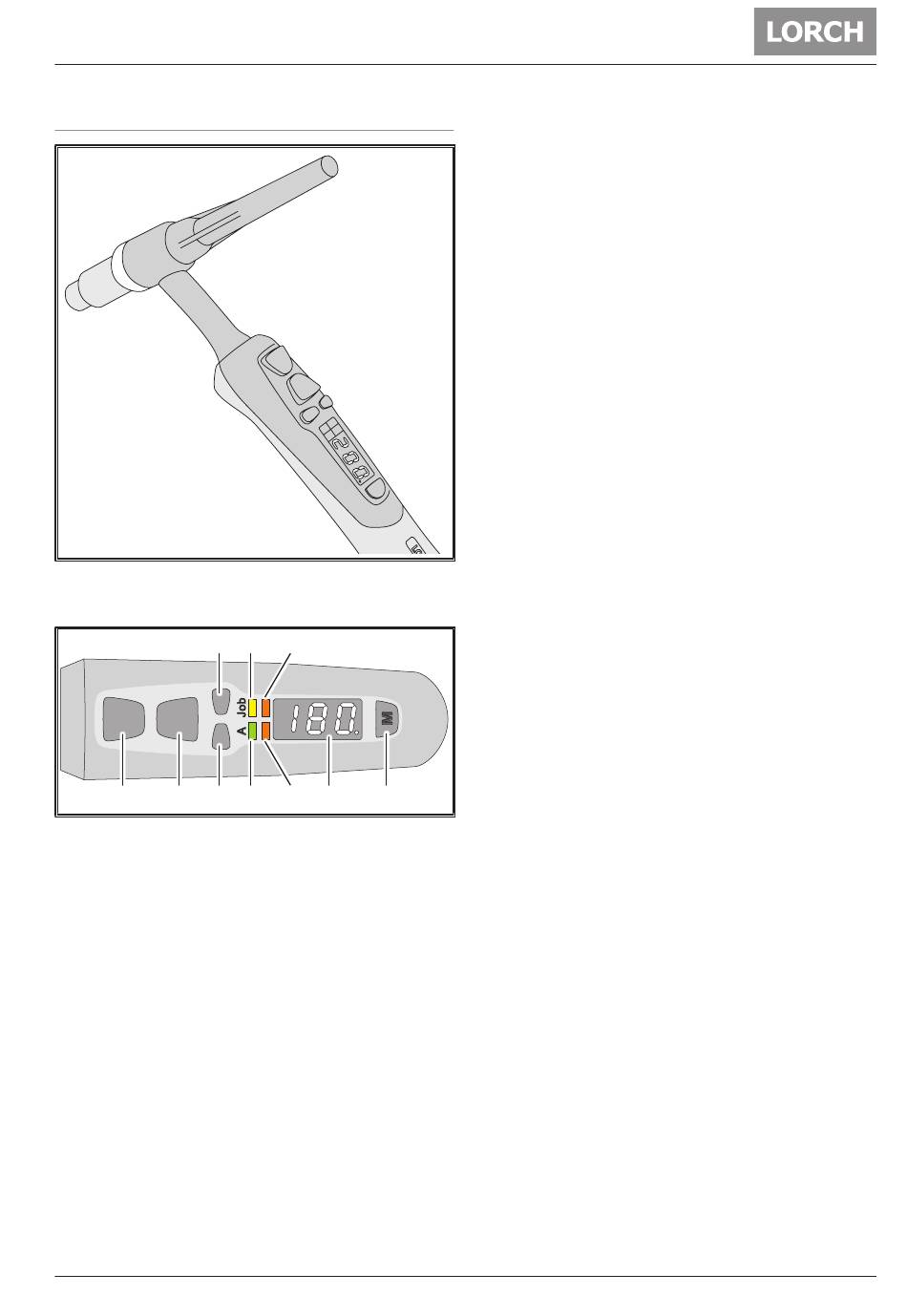

Abb. 9: Powermaster-torch of the i-LTG/i-LTW-series.
Torch switch functions
77
75 76 78
Abb. 10: Torch switches
75
Torch switch Start/Stop
for starting and stopping the welding process.
76
Torch switch second current
for calling up the second current I2.
77
Torch switch up
to increase the parameter values.
78
Torch switch down
to decrease the parameter values.
80
LED ampere:
is lit if the welding current is readable in the display
(84).
81
LED job:
is lit if a job is selected at the machine. The torch but-
ton Up 77 or Down 78 switch between Job 1 and Job
2. The welding current is shown in the display 84.
82
Powermaster LED 3:
Free selectable parameters can be saved here. Initial
parameter is "second current I2".
83
Powermaster LED 4:
Free selectable parameters can be saved here.
01.22
81 83
80 82 84 85
84
Display: shows parameter values.
85
Mode button:
switch between the parametes LED 80 to LED 83.
Press 7 seconds to change the display (84) to right or
left hand mode. Index is a dot at the bottom right.
Press 2 seconds to unlock the mode-button for 15
seconds (with activated sub-parameter "Powermas-
ter LED lock" (PLL)).
