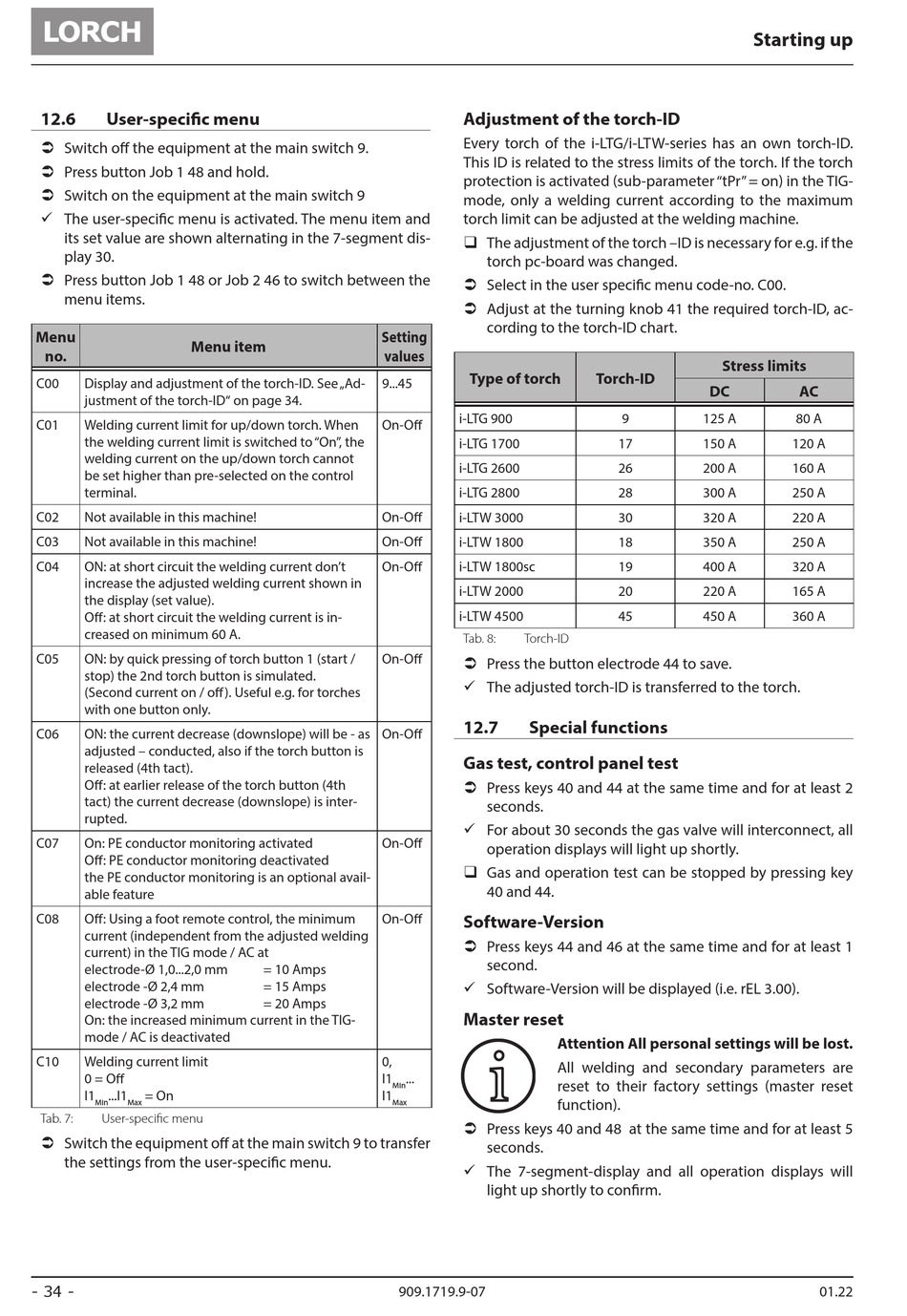

12.6 User-specific menu
 Switch off the equipment at the main switch 9.
 Press button Job 1 48 and hold.
 Switch on the equipment at the main switch 9
9 The user-specific menu is activated. The menu item and
its set value are shown alternating in the 7-segment dis-
play 30.
 Press button Job 1 48 or Job 2 46 to switch between the
menu items.
Menu
Menu item
no.
C00 Display and adjustment of the torch-ID. See „Ad-
justment of the torch-ID" on page 34.
C01 Welding current limit for up/down torch. When
the welding current limit is switched to "On", the
welding current on the up/down torch cannot
be set higher than pre-selected on the control
terminal.
C02 Not available in this machine!
C03 Not available in this machine!
C04 ON: at short circuit the welding current don't
increase the adjusted welding current shown in
the display (set value).
Off: at short circuit the welding current is in-
creased on minimum 60 A.
C05 ON: by quick pressing of torch button 1 (start /
stop) the 2nd torch button is simulated.
(Second current on / off ). Useful e.g. for torches
with one button only.
C06 ON: the current decrease (downslope) will be - as
adjusted – conducted, also if the torch button is
released (4th tact).
Off: at earlier release of the torch button (4th
tact) the current decrease (downslope) is inter-
rupted.
C07 On: PE conductor monitoring activated
Off: PE conductor monitoring deactivated
the PE conductor monitoring is an optional avail-
able feature
C08 Off: Using a foot remote control, the minimum
current (independent from the adjusted welding
current) in the TIG mode / AC at
electrode-Ø 1,0...2,0 mm
electrode -Ø 2,4 mm
electrode -Ø 3,2 mm
On: the increased minimum current in the TIG-
mode / AC is deactivated
C10 Welding current limit
0 = Off
I1 ...I1 = On
Min Max
Tab. 7: User-specific menu
 Switch the equipment off at the main switch 9 to transfer
the settings from the user-specific menu.
- 34 -
Setting
values
9...45
On-Off
On-Off
On-Off
On-Off
On-Off
On-Off
On-Off
On-Off
= 10 Amps
= 15 Amps
= 20 Amps
0,
I1 ...
Min
I1
Max
909.1719.9-07
Adjustment of the torch-ID
Every torch of the i-LTG/i-LTW-series has an own torch-ID.
This ID is related to the stress limits of the torch. If the torch
protection is activated (sub-parameter "tPr" = on) in the TIG-
mode, only a welding current according to the maximum
torch limit can be adjusted at the welding machine.
‰ The adjustment of the torch –ID is necessary for e.g. if the
torch pc-board was changed.
 Select in the user specific menu code-no. C00.
 Adjust at the turning knob 41 the required torch-ID, ac-
cording to the torch-ID chart.
Type of torch Torch-ID
i-LTG 900 9
i-LTG 1700 17
i-LTG 2600 26
i-LTG 2800 28
i-LTW 3000 30
i-LTW 1800 18
i-LTW 1800sc 19
i-LTW 2000 20
i-LTW 4500 45
Tab. 8: Torch-ID
 Press the button electrode 44 to save.
9 The adjusted torch-ID is transferred to the torch.
12.7 Special functions
Gas test, control panel test
 Press keys 40 and 44 at the same time and for at least 2
seconds.
9 For about 30 seconds the gas valve will interconnect, all
operation displays will light up shortly.
‰ Gas and operation test can be stopped by pressing key
40 and 44.
Software-Version
 Press keys 44 and 46 at the same time and for at least 1
second.
9 Software-Version will be displayed (i.e. rEL 3.00).
Master reset
Attention All personal settings will be lost.
i i
All welding and secondary parameters are
reset to their factory settings (master reset
function).
 Press keys 40 and 48 at the same time and for at least 5
seconds.
9 The 7-segment-display and all operation displays will
light up shortly to confirm.
Starting up
Stress limits
DC AC
125 A 80 A
150 A 120 A
200 A 160 A
300 A 250 A
320 A 220 A
350 A 250 A
400 A 320 A
220 A 165 A
450 A 360 A
