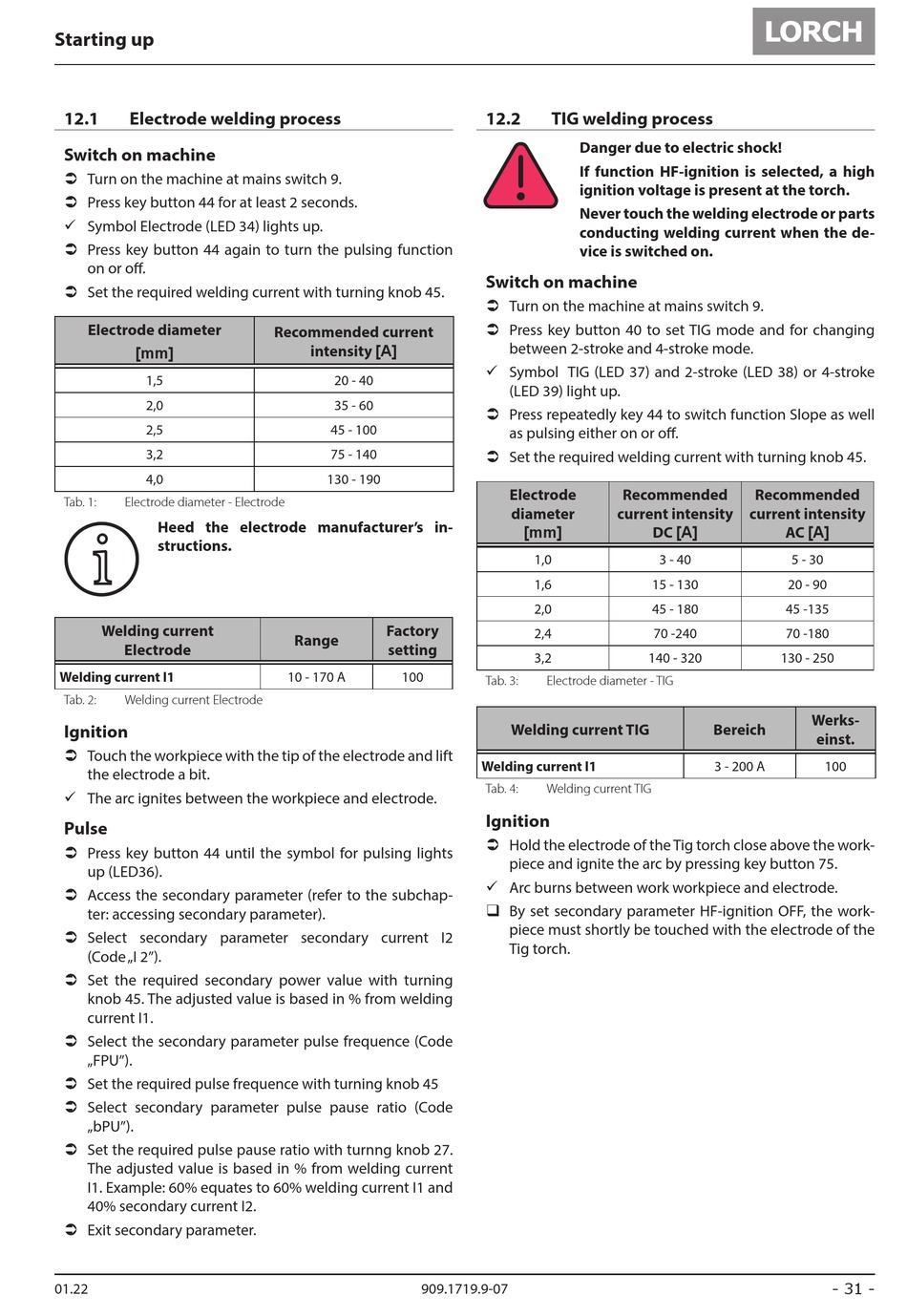

Starting up
12.1 Electrode welding process
Switch on machine
 Turn on the machine at mains switch 9.
 Press key button 44 for at least 2 seconds.
9 Symbol Electrode (LED 34) lights up.
 Press key button 44 again to turn the pulsing function
on or off.
 Set the required welding current with turning knob 45.
Electrode diameter
[mm]
1,5
2,0
2,5
3,2
4,0
Tab. 1: Electrode diameter - Electrode
Heed the electrode manufacturer's in-
i i
structions.
Welding current
Electrode
Welding current l1
Tab. 2: Welding current Electrode
Ignition
 Touch the workpiece with the tip of the electrode and lift
the electrode a bit.
9 The arc ignites between the workpiece and electrode.
Pulse
 Press key button 44 until the symbol for pulsing lights
up (LED36).
 Access the secondary parameter (refer to the subchap-
ter: accessing secondary parameter).
 Select secondary parameter secondary current I2
(Code „I 2").
 Set the required secondary power value with turning
knob 45. The adjusted value is based in % from welding
current I1.
 Select the secondary parameter pulse frequence (Code
„FPU").
 Set the required pulse frequence with turning knob 45
 Select secondary parameter pulse pause ratio (Code
„bPU").
 Set the required pulse pause ratio with turnng knob 27.
The adjusted value is based in % from welding current
I1. Example: 60% equates to 60% welding current I1 and
40% secondary current I2.
 Exit secondary parameter.
01.22
Recommended current
intensity [A]
20 - 40
35 - 60
45 - 100
75 - 140
130 - 190
Factory
Range
setting
10 - 170 A 100
909.1719.9-07
12.2 TIG welding process
Danger due to electric shock!
If function HF-ignition is selected, a high
ignition voltage is present at the torch.
Never touch the welding electrode or parts
conducting welding current when the de-
vice is switched on.
Switch on machine
 Turn on the machine at mains switch 9.
 Press key button 40 to set TIG mode and for changing
between 2-stroke and 4-stroke mode.
9 Symbol TIG (LED 37) and 2-stroke (LED 38) or 4-stroke
(LED 39) light up.
 Press repeatedly key 44 to switch function Slope as well
as pulsing either on or off.
 Set the required welding current with turning knob 45.
Electrode Recommended
diameter current intensity
[mm] DC [A]
1,0
1,6 15 - 130
2,0 45 - 180
2,4
3,2 140 - 320
Tab. 3: Electrode diameter - TIG
Welding current TIG
Welding current I1
Tab. 4: Welding current TIG
Ignition
 Hold the electrode of the Tig torch close above the work-
piece and ignite the arc by pressing key button 75.
9 Arc burns between work workpiece and electrode.
‰ By set secondary parameter HF-ignition OFF, the work-
piece must shortly be touched with the electrode of the
Tig torch.
Recommended
current intensity
AC [A]
3 - 40 5 - 30
20 - 90
45 -135
70 -240 70 -180
130 - 250
Werks-
Bereich
einst.
3 - 200 A 100
