12 Starting up

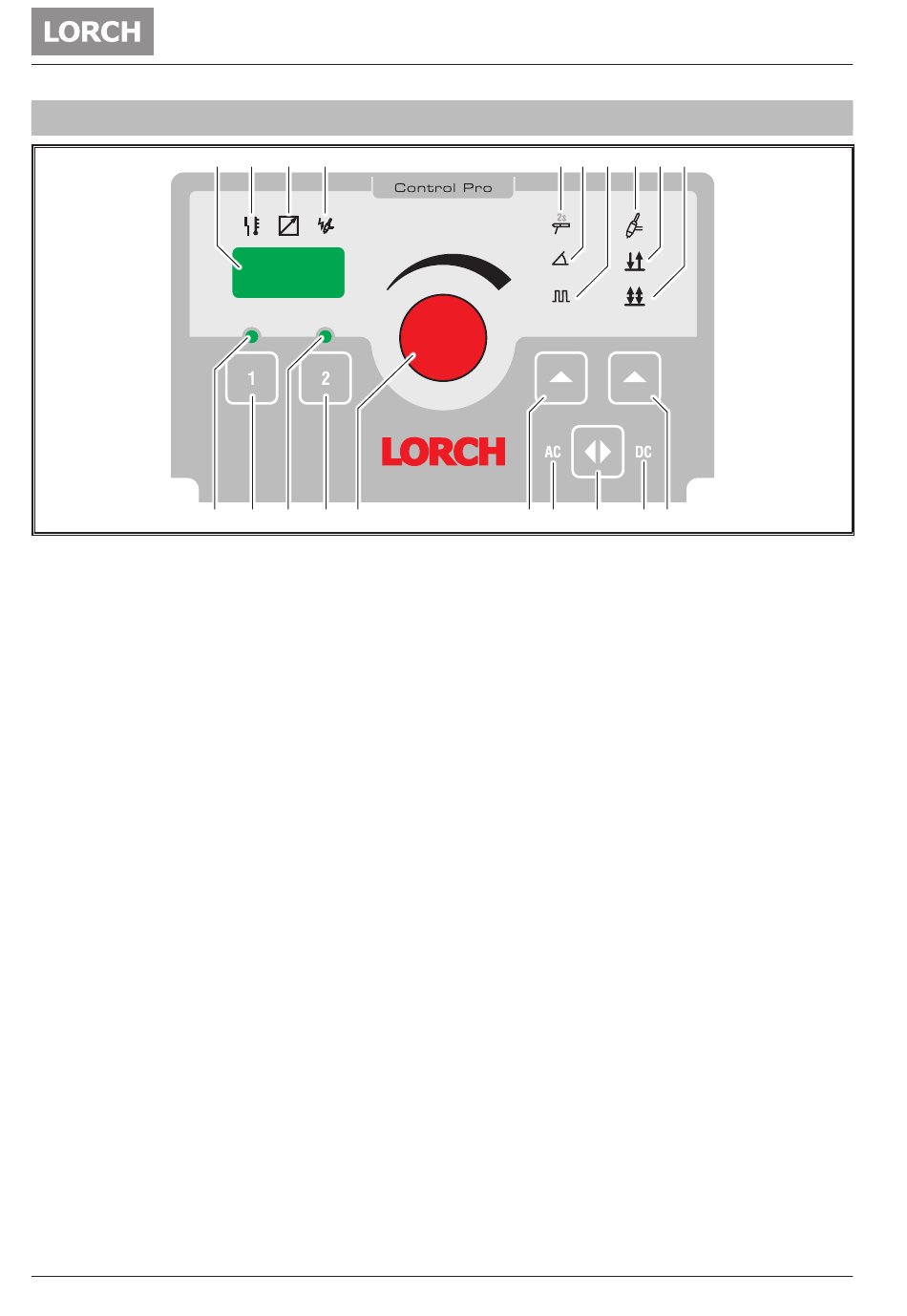

Abb. 8: Control panel HandyTIG 200 AC/DC
30
7-Segment-display
displays the selected current. Alternating display of
code and set value by activated secondary param-
eters.
31
LED malfunction
lights up permanently, 7-segment-display shows
error code 30.
32
LED remote control
Hand remote connected:
LED lights up permanently, turning knob welding
current 45 without any function, adjustment only
possible at hand remote control.
Foot remote connected:
LED lights up by activation, turning knob 45 displays
the foot control's maximum provided value setting.
I.e. if 100A is set, values of 5A-100A can be retrieved
with the foot remote.
33
LED HF
lights up if function HF is selected. (non-contact
ignition).
34
LED Electrode
lights up if function electrode is selected.
35
LED Slope
lights up if slope function is selected (slope / down
slope).
36
LED Pulse
lights up if pulsing is selected. (pulsing takes place
between welding current I1 and I2)
37
LED TIG
lights up if TIG mode is selected.
38
LED 2-stroke
lights up if 2-stroke mode is selected (only with TIG
welding procedure).
- 30 -
30 31 32 33
HandyTIG 200 HandyTIG 200
49 48 47 46 45
34 35 36 37 38 39
AC/DC AC/DC
44 43
39
LED 4-stroke
lights up if 4-stroke mode is selected (only with TIG
welding procedure).
40
Key button TIG/2-stroke/4-stroke
for the selection of TIG mode as well as 2-stroke and
4-stroke mode.
41
LED DC
lights up if direct current is selected.
42
Key button welding welding current
for the selection direct current or alternating current.
43
LED AC
lights up if alternating current is selected.
44
Key button electrode/slope/pulsing mode
for the selection of electrode mode as well as the
slope and pulsing modes.
To select the electrode mode, keep the key pressed
for at least 2 seconds.
45
Turning knob for welding current adjustment
for the stepless setting of welding current.
46
Key Job 2
press for at least 3 seconds to save/store the present
settings as job.
Quick press to retrieve saved job.
47
LED Job 2
lights up if Job 2 is selected., flashes if Job 2 settings
are saved/stored.
48
Key Job 1
press for at least 3 seconds, saves/stores the present
settings as job.
Quick press to retrieve saved job.
49
LED Job 1
lights up if Job 1 is selcted, flashes after saving/stor-
ing Job 1.
