"CHANGING THE CHARGING CURVE WITH ON-BOARD CHARGER"
!
CAUTION!
TO PREVENT DAMAGE TO THE CONNECTED BATTERIES, SELECT THE PROPER CURVE ASSOCIATED WITH THE BATTERY TYPE BY FOL-
LOWING THE INSTRUCTIONS INDICATED BELOW.
!
CAUTION!
IF GEL, LEAD, AGM OR OTHER BATTERIES HAVE BEEN INSTALLED IN THE SCRUBBER-DRYER, PERFORM THE SPECIFIC SETTINGS BY USING
THE SWITCHES "DIPSWITCHES" PLACED ON THE BATTERY CHARGER, REFERRING TO THE SPECIFIC CURVES AS DESCRIBED IN THE FOL-
LOWING TABLE.
Charging curves
The battery charger settings include eight charging curves (with NORDELETTRONICA charger) or four (with SPE charger) . Each setting is specifi c for a single type of battery (Lead, Gel and AGM), and is identifi ed by
a green LED fl ashing (with NORDELETTRONICA charger) or a led (with SPE charger). see also FIG.9A
To access to the Dipswitches 3, remove cap 2.
CHARGING CURVES SETTING TABLE WITH "NORDELETTRONICA" BATTERY CHARGER
DIPSWITCH
S1
S2
S4
Reference
OFF
OFF
OFF
1
ON
ON
OFF
2
OFF
ON
OFF
3
ON
OFF
OFF
4
OFF
OFF
ON
5
ON
ON
ON
6
OFF
ON
ON
7
ON
OFF
ON
8
S3
Function
-
none
CHARGING CURVES SETTING TABLE WITH "SPE" BATTERY CHARGER
DIPSWITCH SW1
DP1
Curve 1
->
ON
Curve 2
->
OFF
Curve 3
->
OFF
Curve 4
ON
DIPSWITCH SW2
DP1
Current
ON
8A
-> OFF
10A
CHARGING THE BATTERIES
Charging curve
IUI0-Pb for lead-acid battery
IUIa-Pb for lead-acid battery
IUa for AGM Zenith battery
IUI0 for AGM EV-Discover batter
IUoU for GEL AGM battery
IUoU for GEL Trojan battery
IUI0 for GEL Sonnenschein battery
IUIa for GEL Sonnenschein battery
Charging curve
DP2
OFF
IUIa - ACD, for lead-acid (wet) battery
OFF
IUIa - GEL, for Gel batteries of "Exide - Sonnenschein and Haze"
ON
IUOU - AGM, for battery "AGM full river"
ON
IUIUO - EV, for dry cell battery AGM Discover
DIPSWITCH SW2
DP2
battery voltage (VB)
ON
12V
-> OFF
24V
Status of the yellow LED at
switch on
OFF
OFF
OFF
OFF
ON
ON
ON
ON
3
ON
ON
S1
OFF
ON
DIPSWITCH
S3
OFF
3
SW2
SW1
ON
ON
ON
ON
OFF
OFF
OFF
OFF
80

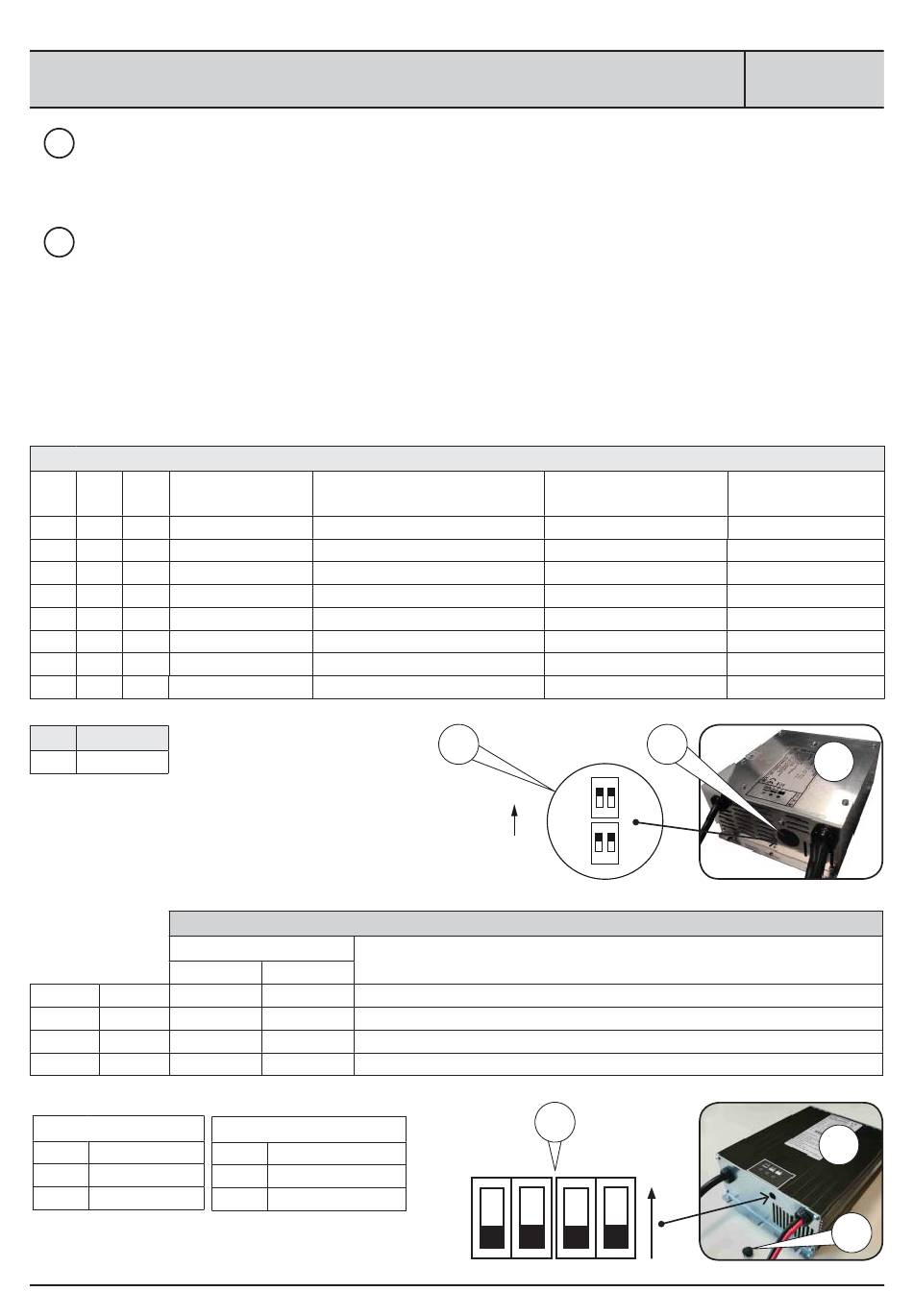

FIG.9B
OPTIONAL
Nr. of fl ashes of the green
LED at switch on
1
2
3
4
1
2
3
4
2
S2
S4
NORDELETTRONICA charger
ON
SPE charger
1
1
2
