ergoSURG
35
Aufstellen und
Bedienungshinweise

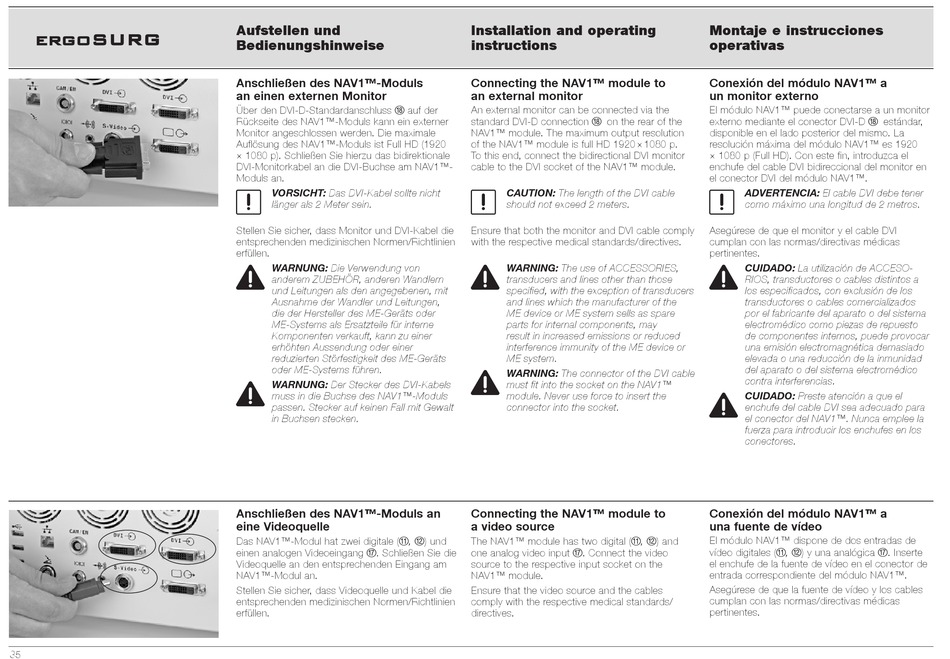

Anschließen des NAV1™-Moduls
an einen externen Monitor
Über den DVI­D­Standardanschluss i auf der
Rückseite des NAV1™­Moduls kann ein externer
Monitor angeschlossen werden. Die maximale
Auflösung des NAV1™­Moduls ist Full HD (1920
× 1080 p). Schließen Sie hierzu das bidirektionale
DVI­Monitorkabel an die DVI­Buchse am NAV1™­
Moduls an.
2
VorsiCht: Das DVI­Kabel sollte nicht
länger als 2 Meter sein.
Stellen Sie sicher, dass Monitor und DVI­Kabel die
entsprechenden medizinischen Normen/Richtlinien
erfüllen.
3
Warnung: Die Verwendung von
anderem ZUBEHÖR, anderen Wandlern
und Leitungen als den angegebenen, mit
Ausnahme der Wandler und Leitungen,
die der Hersteller des ME­Geräts oder
ME­Systems als Ersatzteile für interne
Komponenten verkauft, kann zu einer
erhöhten Aussendung oder einer
reduzierten Störfestigkeit des ME­Geräts
oder ME­Systems führen.
3
Warnung: Der Stecker des DVI­Kabels
muss in die Buchse des NAV1™­Moduls
passen. Stecker auf keinen Fall mit Gewalt
in Buchsen stecken.
Anschließen des NAV1™-Moduls an
eine Videoquelle
Das NAV1™­Modul hat zwei digitale (q, w) und
einen analogen Videoeingang u. Schließen Sie die
Videoquelle an den entsprechenden Eingang am
NAV1™­Modul an.
Stellen Sie sicher, dass Videoquelle und Kabel die
entsprechenden medizinischen Normen/Richtlinien
erfüllen.
Installation and operating
instructions
Connecting the NAV1™ module to
an external monitor
An external monitor can be connected via the
standard DVI­D connection i on the rear of the
NAV1™ module. The maximum output resolution
of the NAV1™ module is full HD 1920 × 1080 p.
To this end, connect the bidirectional DVI monitor
cable to the DVI socket of the NAV1™ module.
2
Caution: The length of the DVI cable
should not exceed 2 meters.
Ensure that both the monitor and DVI cable comply
with the respective medical standards/directives.
3
Warning: The use of ACCESSORIES,
transducers and lines other than those
specified, with the exception of transducers
and lines which the manufacturer of the
ME device or ME system sells as spare
parts for internal components, may
result in increased emissions or reduced
interference immunity of the ME device or
ME system.
3
Warning: The connector of the DVI cable
must fit into the socket on the NAV1™
module. Never use force to insert the
connector into the socket.
Connecting the NAV1™ module to
a video source
The NAV1™ module has two digital (q, w) and
one analog video input u. Connect the video
source to the respective input socket on the
NAV1™ module.
Ensure that the video source and the cables
comply with the respective medical standards/
directives.
Montaje e instrucciones
operativas
Conexión del módulo NAV1™ a
un monitor externo
El módulo NAV1™ puede conectarse a un monitor
externo mediante el conector DVI­D i estándar,
disponible en el lado posterior del mismo. La
resolución máxima del módulo NAV1™ es 1920
× 1080 p (Full HD). Con este fin, introduzca el
enchufe del cable DVI bidireccional del monitor en
el conector DVI del módulo NAV1™.
2
adVertenCia: El cable DVI debe tener
como máximo una longitud de 2 metros.
Asegúrese de que el monitor y el cable DVI
cumplan con las normas/directivas médicas
pertinentes.
3
Cuidado: La utilización de ACCESO-
RIOS, transductores o cables distintos a
los especificados, con exclusión de los
transductores o cables comercializados
por el fabricante del aparato o del sistema
electromédico como piezas de repuesto
de componentes internos, puede provocar
una emisión electromagnética demasiado
elevada o una reducción de la inmunidad
del aparato o del sistema electromédico
contra interferencias.
3
Cuidado: Preste atención a que el
enchufe del cable DVI sea adecuado para
el conector del NAV1™. Nunca emplee la
fuerza para introducir los enchufes en los
conectores.
Conexión del módulo NAV1™ a
una fuente de vídeo
El módulo NAV1™ dispone de dos entradas de
vídeo digitales (q, w) y una analógica u. Inserte
el enchufe de la fuente de vídeo en el conector de
entrada correspondiente del módulo NAV1™.
Asegúrese de que la fuente de vídeo y los cables
cumplan con las normas/directivas médicas
pertinentes.
