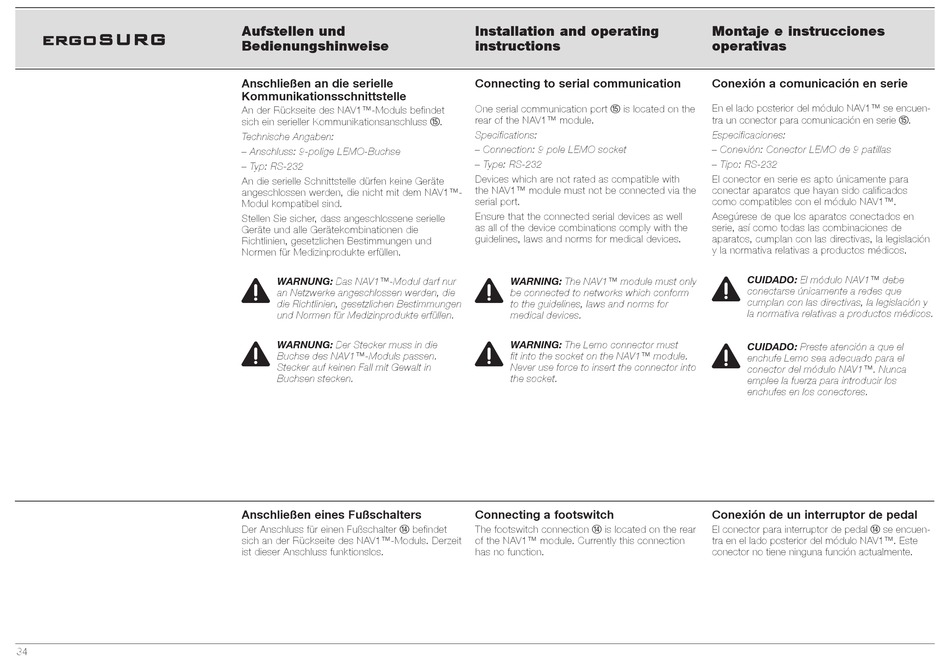

ergoSURG
34
Aufstellen und
Bedienungshinweise
Anschließen an die serielle
Kommunikationsschnittstelle
An der Rückseite des NAV1™­Moduls befindet
sich ein serieller Kommunikationsanschluss t.
Technische Angaben:
– Anschluss: 9­polige LEMO­Buchse
– Typ: RS­232
An die serielle Schnittstelle dürfen keine Geräte
angeschlossen werden, die nicht mit dem NAV1™­
Modul kompatibel sind.
Stellen Sie sicher, dass angeschlossene serielle
Geräte und alle Gerätekombinationen die
Richtlinien, gesetzlichen Bestimmungen und
Normen für Medizinprodukte erfüllen.
3
Warnung: Das NAV1™­Modul darf nur
an Netzwerke angeschlossen werden, die
die Richtlinien, gesetzlichen Bestimmungen
und Normen für Medizinprodukte erfüllen.
3
Warnung: Der Stecker muss in die
Buchse des NAV1™­Moduls passen.
Stecker auf keinen Fall mit Gewalt in
Buchsen stecken.
Anschließen eines Fußschalters
Der Anschluss für einen Fußschalter r befindet
sich an der Rückseite des NAV1™­Moduls. Derzeit
ist dieser Anschluss funktionslos.
Installation and operating
instructions

Connecting to serial communication

One serial communication port t is located on the
rear of the NAV1™ module.
Specifications:
– Connection: 9 pole LEMO socket
– Type: RS­232
Devices which are not rated as compatible with
the NAV1™ module must not be connected via the
serial port.
Ensure that the connected serial devices as well
as all of the device combinations comply with the
guidelines, laws and norms for medical devices.
3
Warning: The NAV1™ module must only
be connected to networks which conform
to the guidelines, laws and norms for
medical devices.
3
Warning: The Lemo connector must
fit into the socket on the NAV1™ module.
Never use force to insert the connector into
the socket.

Connecting a footswitch

The footswitch connection r is located on the rear
of the NAV1™ module. Currently this connection
has no function.
Montaje e instrucciones
operativas
Conexión a comunicación en serie
En el lado posterior del módulo NAV1™ se encuen­
tra un conector para comunicación en serie t.
Especificaciones:
– Conexión: Conector LEMO de 9 patillas
– Tipo: RS­232
El conector en serie es apto únicamente para
conectar aparatos que hayan sido calificados
como compatibles con el módulo NAV1™.
Asegúrese de que los aparatos conectados en
serie, así como todas las combinaciones de
aparatos, cumplan con las directivas, la legislación
y la normativa relativas a productos médicos.
3
Cuidado: El módulo NAV1™ debe
conectarse únicamente a redes que
cumplan con las directivas, la legislación y
la normativa relativas a productos médicos.
3
Cuidado: Preste atención a que el
enchufe Lemo sea adecuado para el
conector del módulo NAV1™. Nunca
emplee la fuerza para introducir los
enchufes en los conectores.
Conexión de un interruptor de pedal
El conector para interruptor de pedal r se encuen­
tra en el lado posterior del módulo NAV1™. Este
conector no tiene ninguna función actualmente.
