Aesculap
Quintex® anterior cervical plate system - Instruments
3 3
3
Fig. 10
K
Fig. 11
8
®
K
3
J
E
I
F
4.4.2

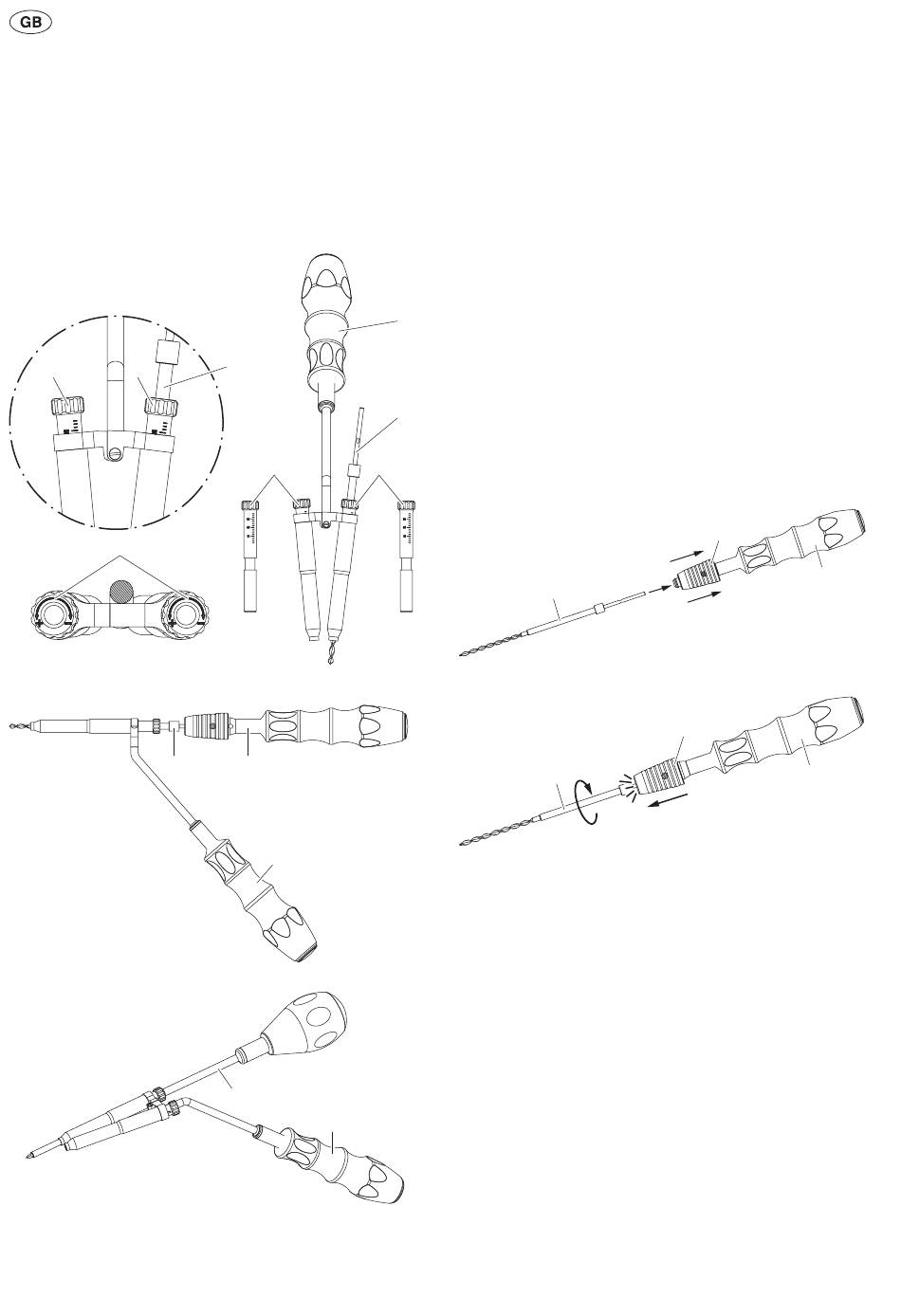

Assembling the drill and handle (optional)

The drill and handle only need assembling if manual drilling is to be carried
out.
F
►
Use drill handle J or Q for manual drilling.
►
Use the drill handle J or Q with the drill K only.
►
Insert the drill K into drill handle J or Q:
– Pull back locking sleeve 4 against the spring pressure, in the direc-
tion indicated by the arrow, and hold it there, see Fig. 12.
K
– Slide the drill K into the adapter of the drill handle J or Q as far as
it will go, see Fig. 13.
3
– Slightly turn drill K while simultaneously releasing locking sleeve 4.
The drill engages audibly.
Fig. 12
Fig. 13
4
K
4
click
K
J
J
