Quintex® anterior cervical plate system - Instruments
►

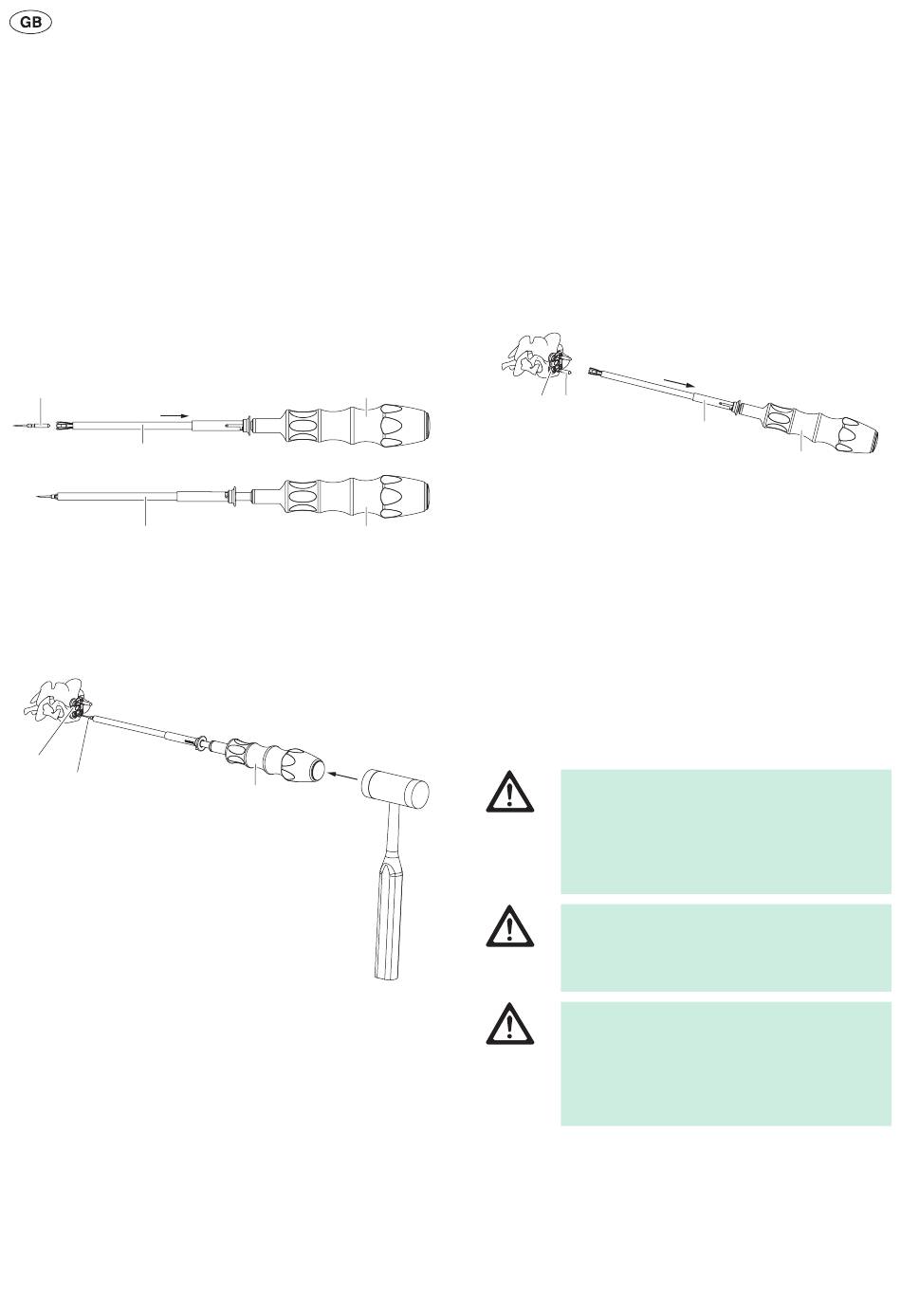

Insert the fixation pin C into the instrument for fixation pins D. To do
this, pull back the outer sleeve 10 of the instrument for fixation pins D,
see Fig. 5.
►
To secure the fixation pin C, release outer sleeve 10 of the instrument
for fixation pins D. The outer sleeve is then pushed forward by a spring
mechanism.
C
10
10
Fig. 5
►
Insert the fixation pin C through the fixation pin hole in the Quintex®
plate 1 into the vertebral body by applying a gentle hammer blow on
the instrument for fixation pins D, see Fig. 6.
1
C
Fig. 6
6
®
D
►
To release the fixation pin C from the instrument for fixation pins D,
pull back outer sleeve 10 fully and remove instrument for fixation
pins D from the fixation pin C, see Fig. 7.
D
Fig. 7
D
4.4 Preparing the holes for the Quintex® screws
The holes for the self-drilling and self-tapping Quintex® screws are pre-
pared using the self-centering cortical center punch I. Alternatively, the
outer sleeve of the cortical center punch I can also be removed and the
cortical center punch I can be used in combination with a drill guide for
preparing the holes. This opens up the cortical bone layer of the vertebral
body and the screw can be screwed in without drilling.
Or, the screw hole can be pre-drilled with drill K. To do this, position the
drill K with the drill guide and use it manually with drill handle J, Q or
mechanically with a motor system with Aesculap intra-handpiece (e.g.
GD450R/GD456R).
WARNING
WARNING
WARNING
1 C
10
Risk of tissue trauma and incorrect pilot hole if the
cortical center punch (without outer sleeve) or drill
is inserted!
►
Use the cortical center punch (without outer
sleeve) and drill only in combination with single
or double drill guides.
Incorrect pilot hole if drilling is carried out without
a drill guide!
►
Use the drill only in combination with the single
or double drill guides.
Incorrect pilot hole if the self-centering outer
sleeve of the cortical center punch or a drill guide
is not used!
►
Always use the self-centering outer sleeve of
the cortical center punch if the cortical center
punch is used without a drill guide.
