Replacing the tines (in case of repairs)

Pos: 37.31.2 /BA/Wartung/Schwader/Zinken / Zinkenarme/Zinken tauschen (im Reparaturfall) mit Abweisblech Bild mit Tabelle @ 224\mod_1392293941470_78.docx @ 1817087 @ @ 1
SW9070092_1

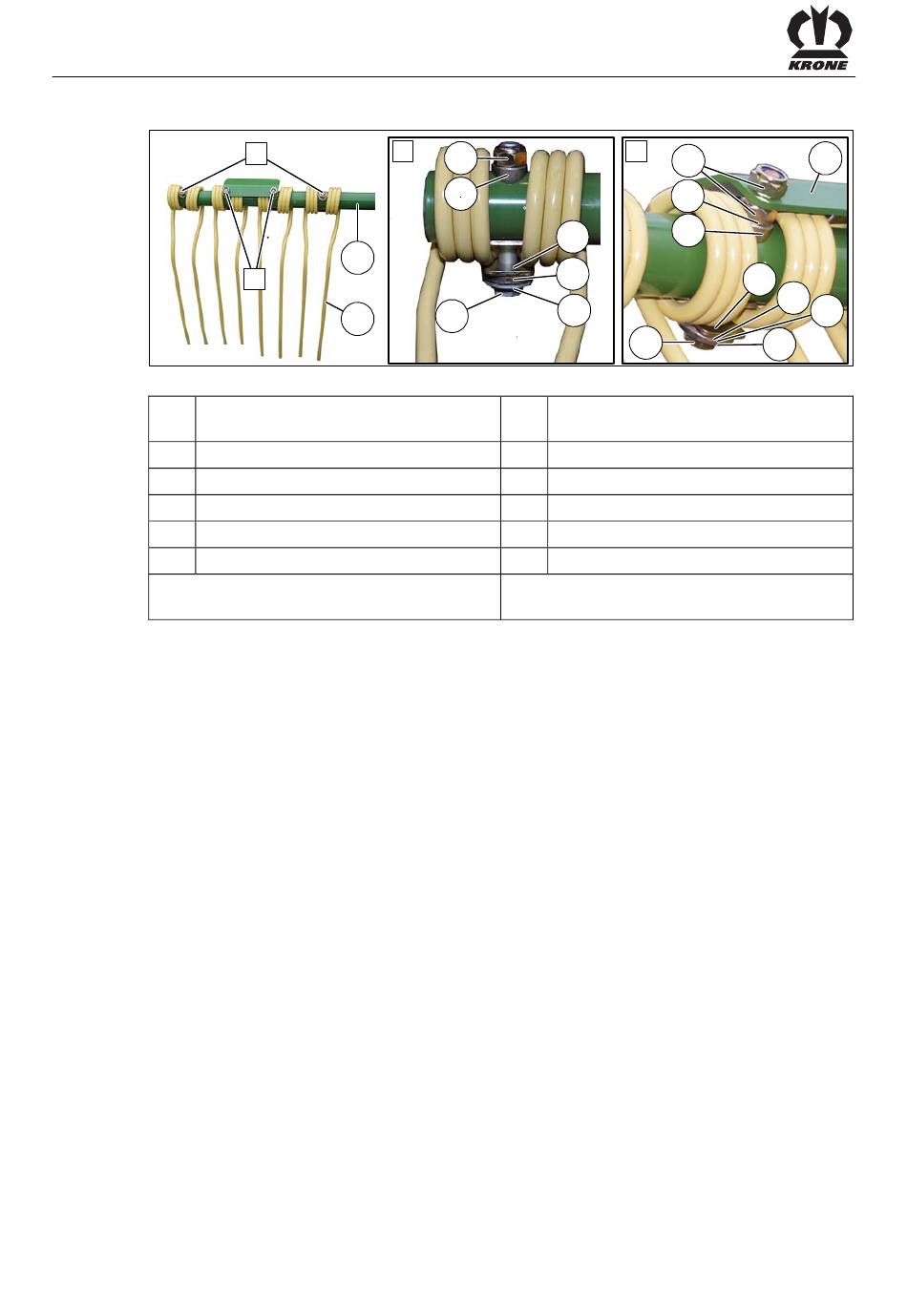

Fig. 53
1) Hexagonal head screw M12 x 90 -
10.9
3) Detent edged washer SKM 12
5) 12.5x35x8 washer
7) Support
9) Locknut M12
11) Tines
Adhesive (high strength) (order no. 938 627
0)
Pos: 37.31.3 /BA/Wartung/Schwader/Zinken / Zinkenarme/Zinken tauschen (im Reparaturfall) mit/ ohne Abweisblech_Text @ 224\mod_1392294092678_78.docx @ 1817145 @ @ 1
• Remove all tines in front of the broken tine to remove the broken tine.
• Remove the broken tine.
Installing New Tine
• Slide fastening clamp onto the tine.
• Slide tine onto the tine arm.
• Guide hex bolt with detent edged washer and washer from below through the fastening
clamp and the tine arm.
• Apply adhesive (high-strength) on the threading overhang of the screw.
• Install support, washer and locknut, raise tine on the tine end and tighten nut with torque (95
Nm).
Proceed as described above with all tines.
