Install the PTO shaft

Pos: 27.42 /BA/Erstinbetriebnahme/Gelenkwelle/Traktorwechsel Gelenkwellenlänge beachten @ 6\mod_1214996938591_78.docx @ 97742 @ @ 1
Caution! - Changing the tractor
Effect: Damage to the machine
When using the machine for the first time and whenever changing the tractor Check PTO shaft
for the correct length. If the length of the PTO shaft does not match the tractor, always observe
the chapter entitled "Adjusting the length of the PTO shaft".
Pos: 27.43 /BA/Inbetriebnahme/Schwader/Anbau Gelenkwelle/Anbau Gelenkwelle Bild SW 700#_800# @ 134\mod_1350458386270_78.docx @ 1186264 @ @ 1
2

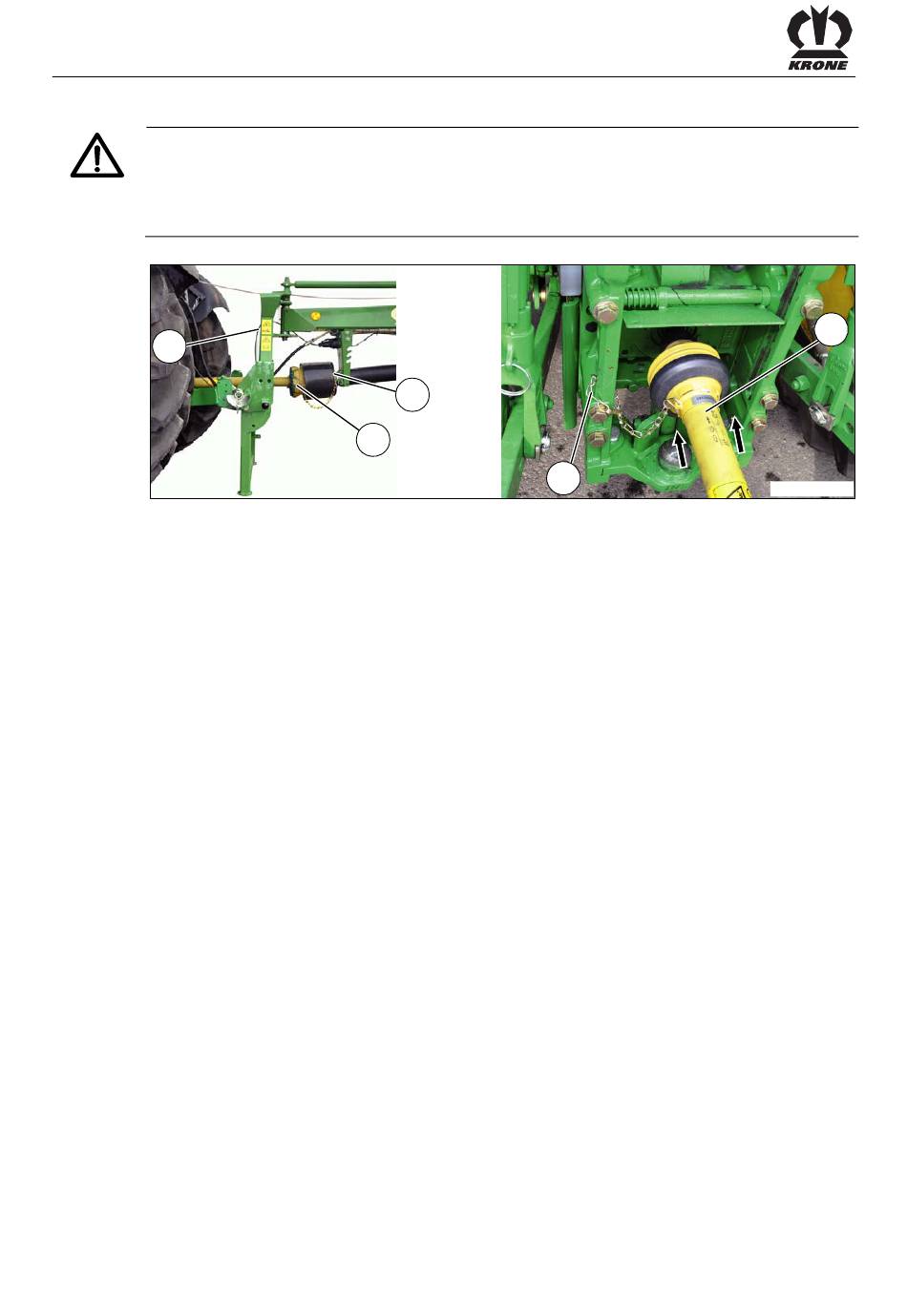

Fig. 19
Pos: 27.44 /BA/Inbetriebnahme/Schwader/Anbau Gelenkwelle/Anbau Gelenkwelle angehängte Schwader Text @ 37\mod_1263463772393_78.docx @ 339645 @ @ 1
• Switch off the engine and remove the ignition key.
• Install the PTO shaft (1) on the machine side (wide angle on machine side).
• Rotate the PTO shaft support (2) upwards.
• Then slide PTO shaft onto the PTO of the tractor. In doing this, ensure that the sliding pin is
securely engaged.
• Secure the PTO shaft guard against turning with the retaining chain (3).
