Pos: 35.6.14 /Überschriften/Überschriften 3/A-E/B/Bei Ausführung nachlaufende Tasträder (optional) @ 305\mod_1415611377646_78.docx @ 2370272 @ 3 @ 1
12.1.2

For the Version with Trailing Guide Wheels (optional)

Pos: 35.6.15 /BA/Einstellungen/Schwader/Kreiselfahrwerk/Kreiselfahrwerk Bild nachlaufendes Rad Swadro TC 680_TC 760_TS 620_TS 680 @ 247\mod_1396423997182_78.docx @ 1925374 @ @ 1
I
III

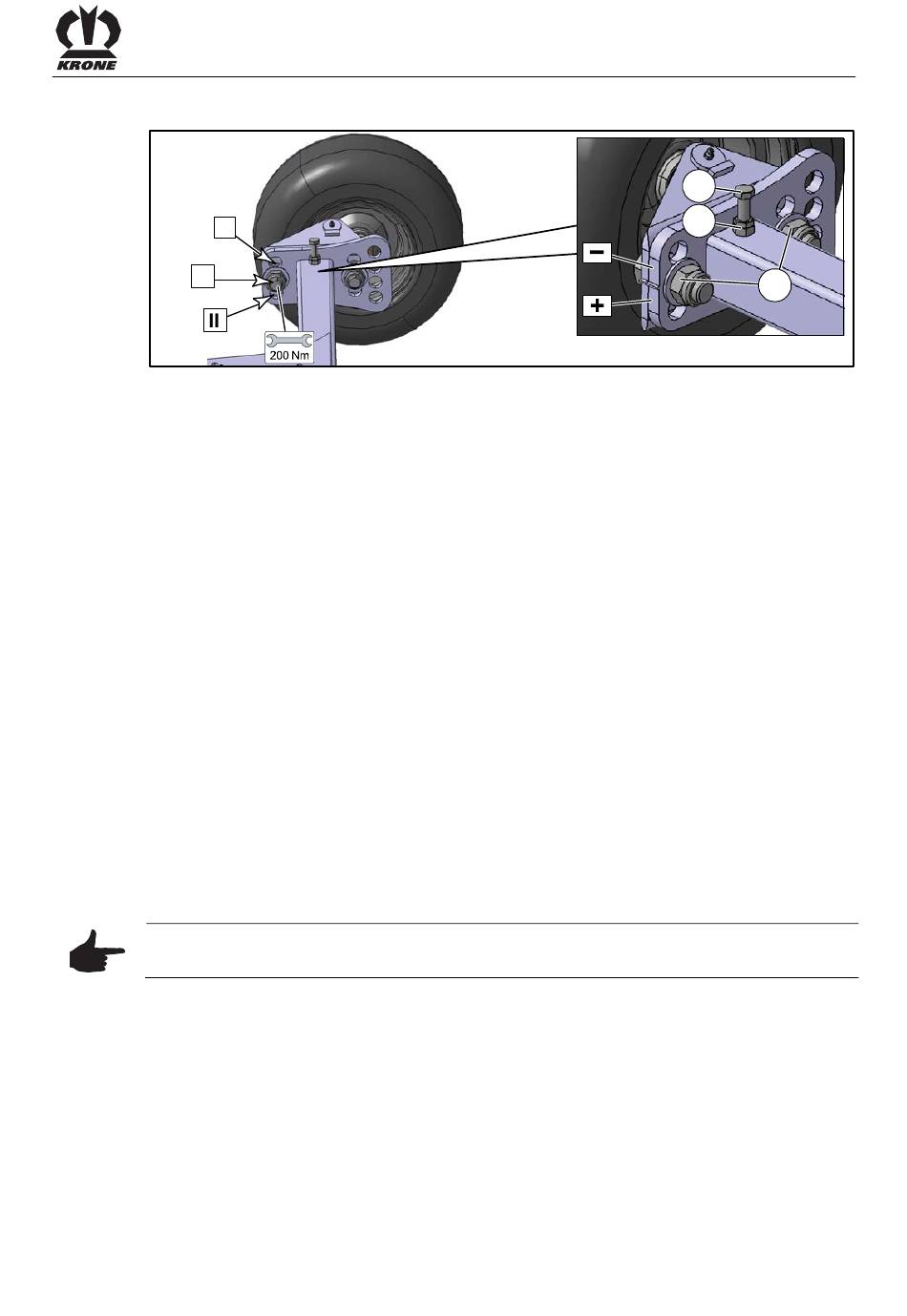

Fig. 46
Pos: 35.6.16 /Layout Module /----------------Leerzeile 5 Pt.-------------------- @ 120\mod_1342592918145_0.docx @ 1092566 @ @ 1
Pos: 35.6.17 /BA/Einstellungen/Schwader/Kreiselfahrwerk/Kreiselneigung einstellen Text Position_Mittel- und Seitenschwader @ 247\mod_1396419253305_78.docx @ 1924902 @ @ 1
Setting the rotor inclination:
Pos. I = Reducing rotor inclination
Pos. II = Increasing rotor inclination
Pos: 35.6.18 /BA/Einstellungen/Schwader/Kreiselfahrwerk/Kreiselfahrwerk Vorgehensweise Swadro TC 680_TC 760 @ 303\mod_1414143022104_78.docx @ 2357613 @ @ 1
Do not step under the raised rotors.
To do this, raise the outrigger arms until the changeover work can be performed.
To set rotor inclination, dismount the rear guide wheels and move them in the hole pattern.
Pos: 35.6.19 /BA/Einstellungen/Schwader/Kreiselfahrwerk/Kreiselneigung einstellen über Langloch_Mittel- und Seitenschwader @ 247\mod_1396418696967_78.docx @ 1924755 @ @ 1
Vernier adjustment by the screw on the oblong hole (3):
− = Reducing rotor inclination
+ = Increasing rotor inclination
Pos: 35.6.20 /BA/Einstellungen/Schwader/KreiselfahrwerkKreiselneigung Vorgehensweise Langloch_Mittel- und Seitenschwader (2014-11-13 08:59:15) @ 247\mod_1396419664129_78.docx @ 1924930 @ @ 1
Do not walk beneath the raised rotor.
Only lift the rotor arms as far as necessary to carry out changes.
Release the counter nut (1).
To adjust the guide wheel, turn the stop screw (2) several turns anti-clockwise (upward).
Release the nuts (3), but make sure the screws still prevent the guide wheel from moving.
Shift the guide wheel to adjust the rotor pitch.
Use the stop screw (2) to clamp the rotor at the desired pitch.
Tighten the counter nut (1).
Tighten the nuts (3).
Pos: 35.6.21 /BA/Einstellungen/Schwader/Kreiselfahrwerk/Hinweis schweres Futter - Fahrwerk innen möglichst niedrig einstellen @ 4\mod_1213084838226_78.docx @ 86157 @ @ 1
Note
If the forage is heavy, adjust the inner running gear as low as possible!
Pos: 35.6.22 /Layout Module /---------------Seitenumbruch---------------- @ 0\mod_1196175311226_0.docx @ 4165 @ @ 1
Settings
2
1
3
SW700091_1
81
