13.6

Tyres

Pos: 37.23 /BA/Sicherheit/7. Gefahrenhinweise alt/Warnung - Falsche Reifenmontage @ 0\mod_1197358162433_78.docx @ 18132 @ @ 1
Warning! - Tyre fitting incorrect
Effect: Injuries or damage to the machine
• Fitting tyres requires sufficient knowledge and the availability of proper tools!
• If tyres are not correctly fitted, it could explode when pumped up. This can cause serious
injury. If you do not have sufficient experience of fitting tyres, have tyres fitted by the
KRONE dealer or a qualified tyre specialist.
• When fitting tyres on the wheel rims, the maximum pressure given by the tyre manufacturer
must not be exceeded. The tyre or even the wheel rim could explode and/or burst.
• If the tyre heels do not fit properly when the maximum permitted pressure is reached, let
out the air, align tyres, lubricate the tyre heels and pump up the tyre again.
• Detailed information about how to fit tyres onto agricultural machinery can be obtained from
the tyre manufacturers.
Pos: 37.24 /Überschriften/Überschriften 3/P-T/RReifen prüfen und pflegen @ 0\mod_1197358037214_78.docx @ 18094 @ 3 @ 1
13.6.1

Checking and maintaining tyres

Pos: 37.25 /BA/Wartung/Reifen/Reihenfolge Bild 6-Loch @ 4\mod_1213086131413_78.docx @ 86197 @ @ 1

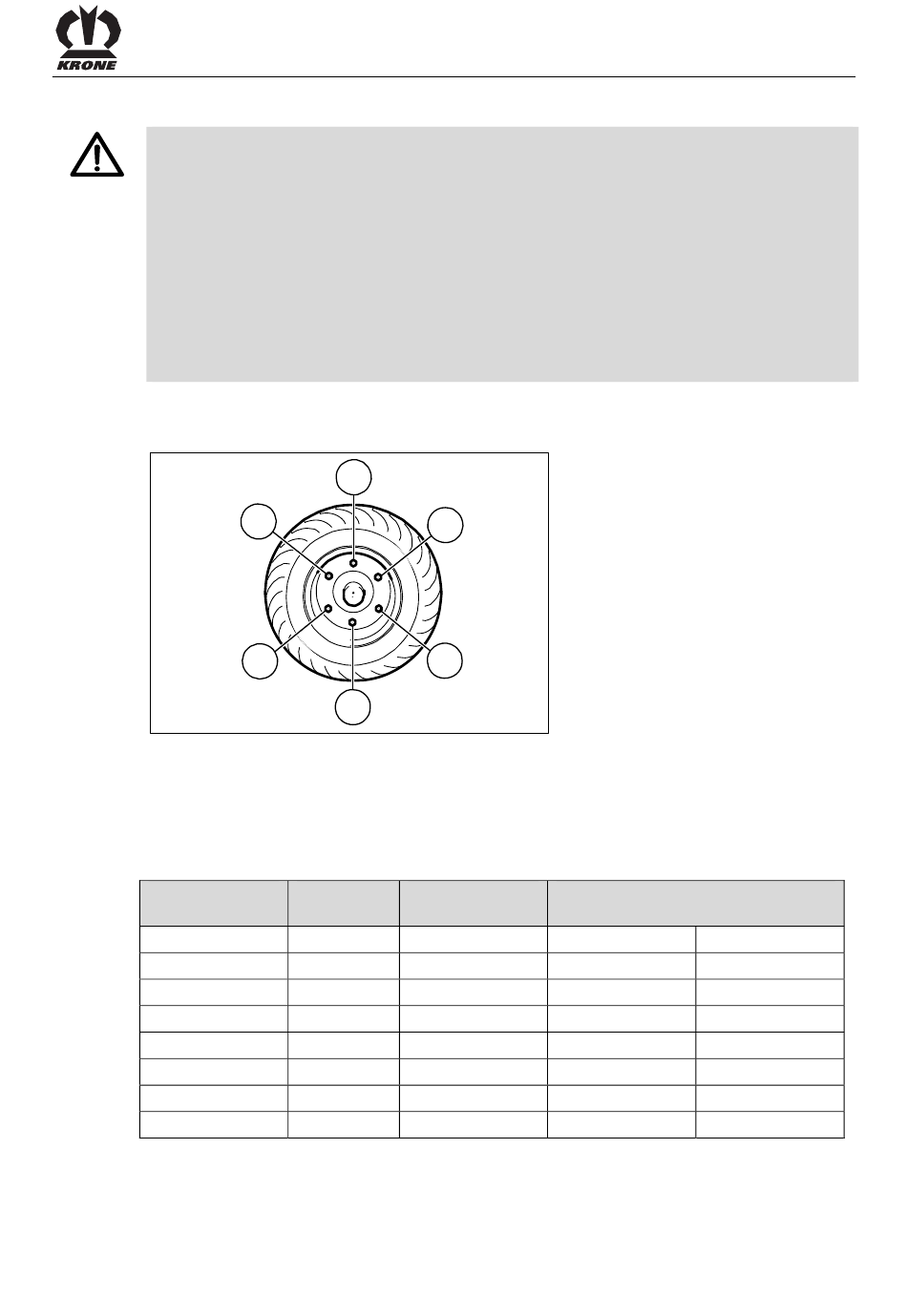

Fig. 51
Pos: 37.26 /BA/Wartung/Reifen/Reifen prüfen und pflegen nach Wartungstabelle @ 134\mod_1350480797454_78.docx @ 1187905 @ @ 1
When loosening and tightening the wheel nuts, observe the order indicated in the illustration.
Check the wheel nuts: According to the maintenance table
Check the tyre air pressure: According to the maintenance table
Pos: 37.27 /BA/Wartung/Reifen/Anziehdrehmoment @ 0\mod_1199955905460_78.docx @ 37340 @ @ 1
Tightening Torque
Threading
M12 x 1.5
M14 x 1.5
M18 x 1.5
M20 x 1.5
M20 x 1,5
M22 x 1.5
M22 x 2
Pos: 37.28 /Layout Module /---------------Seitenumbruch---------------- @ 0\mod_1196175311226_0.docx @ 4165 @ @ 1
1
6
4
2
Key size in Number of bolts
mm per hub - pieces
19
22
24
27
30
32
32
3
5
KS-0-034
Max. tightening torque
black
4/5 95 Nm
5 125 Nm
6 290 Nm
8 380 Nm
8 380 Nm
8/10 510 Nm
10 460 Nm
Maintenance
galvan.
95 Nm
125 Nm
320 Nm
420 Nm
420 Nm
560 Nm
505 Nm
89
