In case of electro-hydraulic single-rotor lifting mechanism design
Pos: 23.6.2 /BA/Maschinenbeschreibung/Schwader/elektrisch-hydraulische Einkreiselaushebung Mittelschwader_Bild @ 302\mod_1413983953479_78.docx @ 2354697 @ @ 1
3
Fig. 9
Pos: 23.6.3 /Layout Module /----------------Leerzeile 5 Pt.-------------------- @ 120\mod_1342592918145_0.docx @ 1092566 @ @ 1
Pos: 23.6.4 /BA/Maschinenbeschreibung/Schwader/elektrisch-hydraulische Einkreiselaushebung_Tabelle @ 302\mod_1413984135358_78.docx @ 2354759 @ @ 1

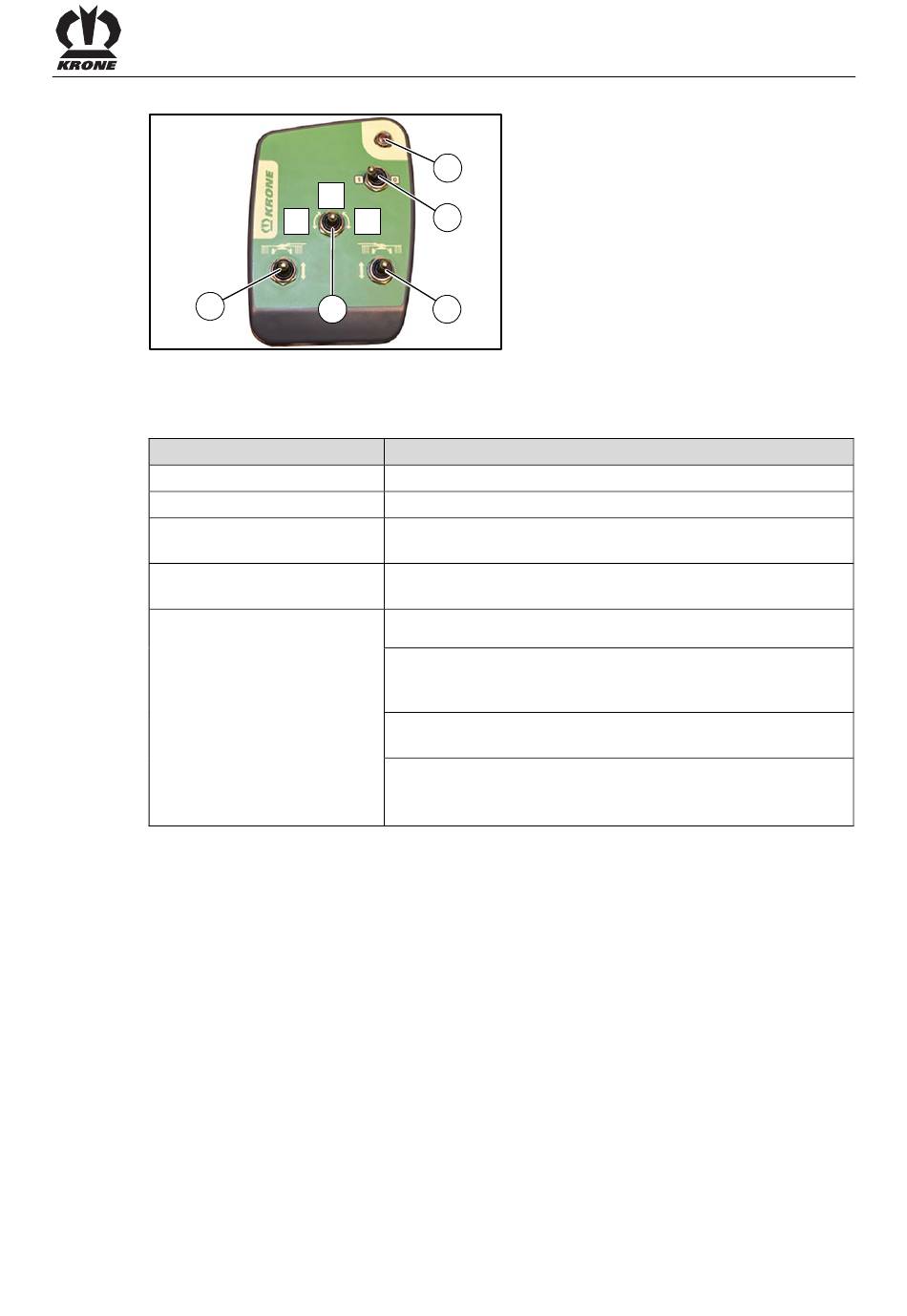

The following table explains the function of the individual
Switch
1) Main switch
2) Indicator lamp (red)
3) Momentary toggle switch
(momentary-action)
4) Momentary toggle switch
(momentary-action)
5) Momentary toggle switch
Pos: 24 /Layout Module /---------------Seitenumbruch---------------- @ 0\mod_1196175311226_0.docx @ 4165 @ @ 1
2
II
1
III
I
5
4
SW700087_1
Function
Switch on (I) and switch off (0) control unit.
Lit when the control unit is switched on.
Set the rotor height on the left rotor.
Set the rotor height on the right rotor.
Selects the rotor that is to be lifted or lowered. The actual
movement is made via the single-action control unit.
Single-rotor lifting mechanism of left rotor:
Pos. I
The right rotor remains in its position. The left rotor
is lifted or lowered.
Twin-rotor lifting mechanism:
Pos. II
Both rotors are raised or lowered.
Single-rotor lifting mechanism of right rotor:
Pos.III
The left rotor remains in its position. The right rotor
is lifted or lowered.
Control and Display Elements
switches.
