Operation
Pos: 31.91 /Überschriften/Überschriften 3/A-E/B/Bei Ausführung mit elektrisch-hydraulischer Einkreiselaushebung @ 302\mod_1414129218204_78.docx @ 2356675 @ 3 @ 1
11.11.2

In Case of Electro-Hydraulic Single-Rotor Lifting Mechanism Design

Pos: 31.92 /BA/Bedienung /Schwader/Schwaden/Kreiselbetriebe bei Ausführung elektrische Einkreiselaushebung @ 303\mod_1414136697549_78.docx @ 2357189 @ @ 1
3

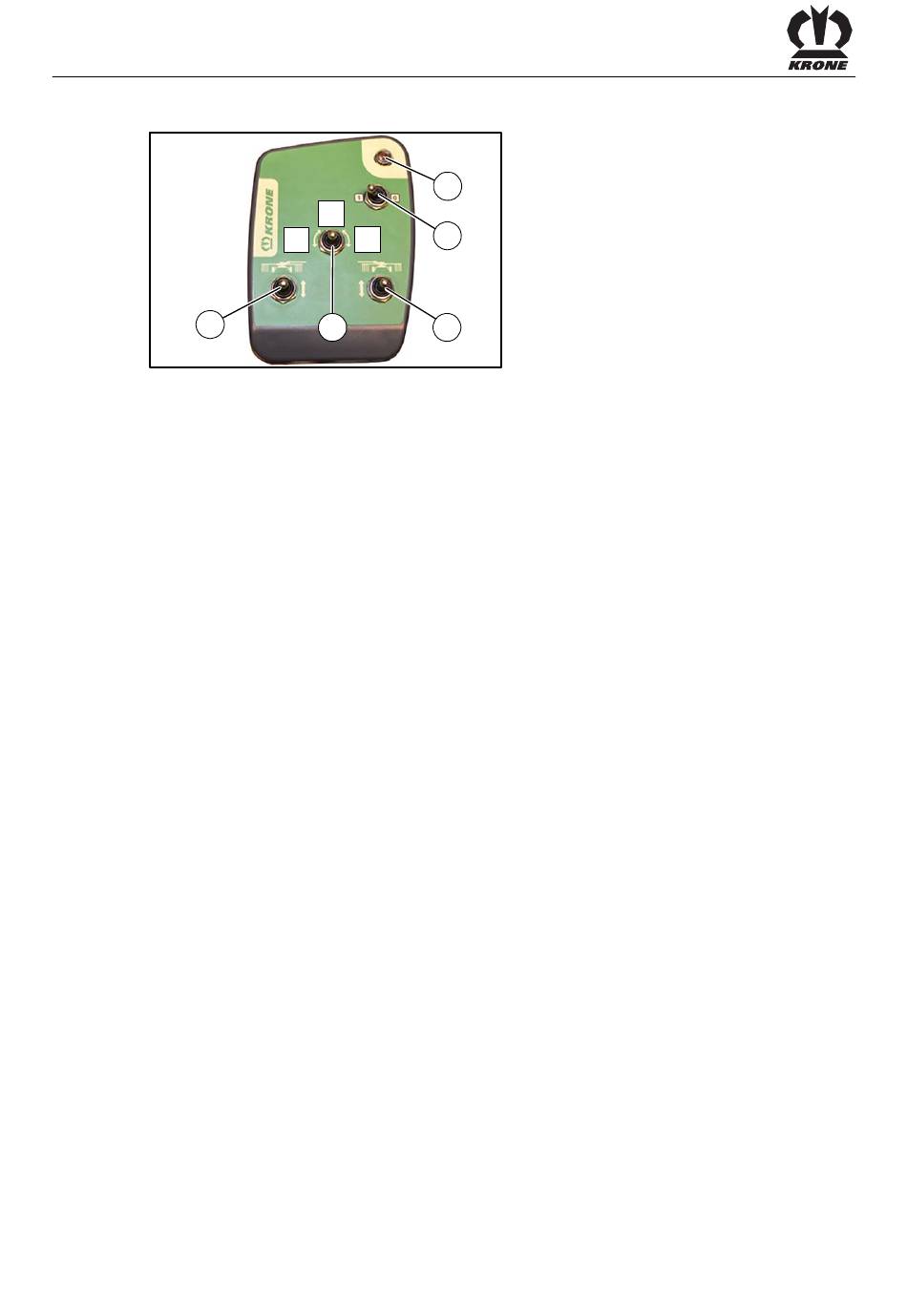

Fig. 44
Single-rotor operation with right rotor
In order to use just the right rotor for swathing, proceed as follows:
• Move outrigger arms into working position.
• Move switch (5) to position (I).
• Actuate the single-action control unit in order to raise the left rotor into headland position.
Twin-rotor operation
Proceed as follows in order to swath with both rotors:
• Move outrigger arms into working position.
• Move switch (5) to position (II).
• Move single-action control unit to position ("Lower / float position").
Single-rotor operation with left rotor
In order to use just the left rotor for swathing, proceed as follows:
• Move outrigger arms into working position.
• Move switch (5) to position (III).
• Actuate the single-action control unit in order to raise the right rotor into headland position.
Pos: 31.93 /Layout Module /---------------Seitenumbruch---------------- @ 0\mod_1196175311226_0.docx @ 4165 @ @ 1
76
2
II
1
III
I
5
4
SW700087_1
