8.3

Preparations on tractor

Pos: 25.10.2 /Überschriften/Überschriften 3/U-Z/Unterlenker einstellen @ 6\mod_1214454896135_78.docx @ 94186 @ 3 @ 1
8.3.1

Adjusting the lower suspension arms

Pos: 25.10.3 /BA/Erstinbetriebnahme/Schwader/Swadro 807_810_907/Bild_Aushubvorrichtung Traktor @ 2\mod_1202364384960_78.docx @ 58789 @ @ 1

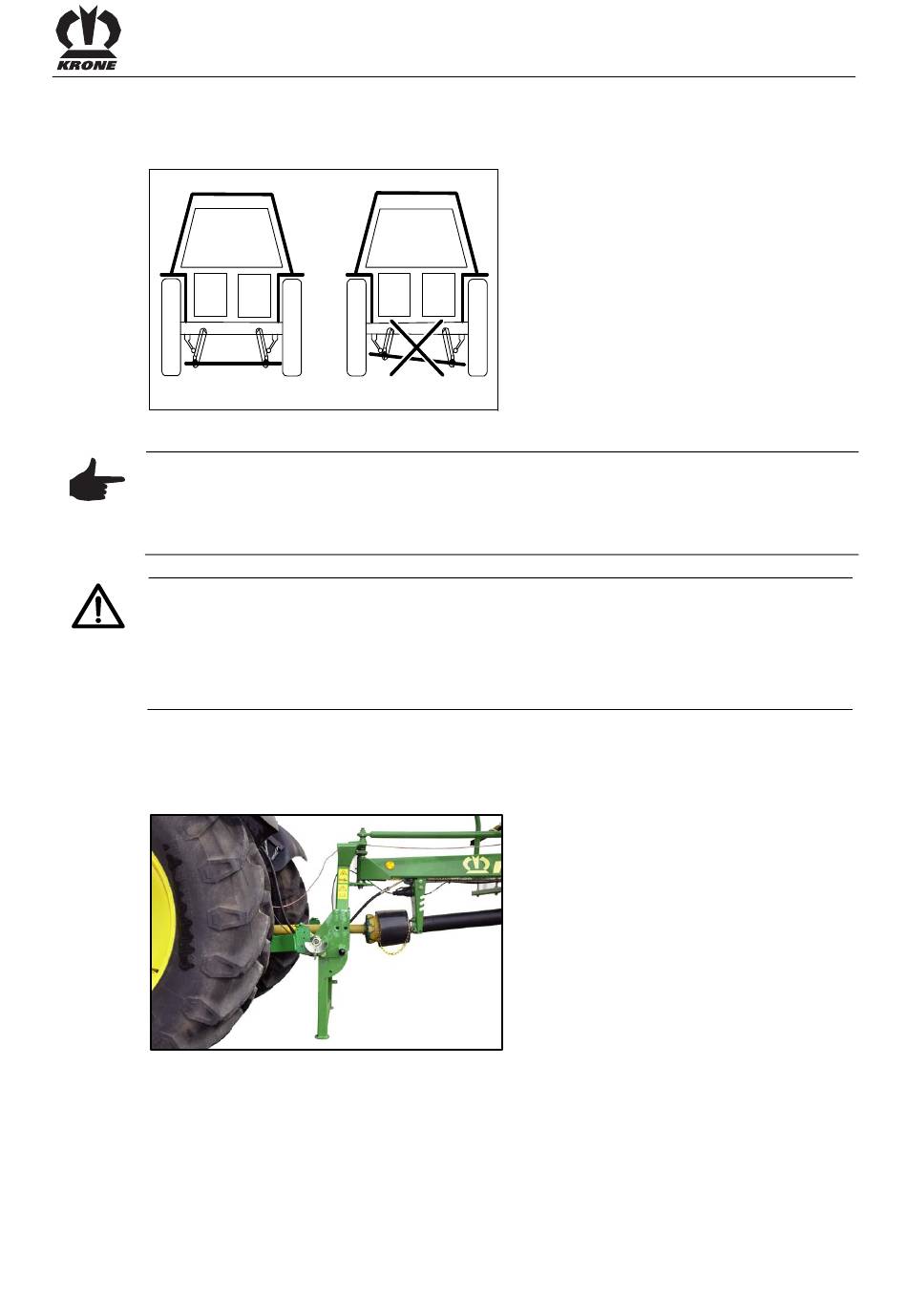

Fig. 10
Pos: 25.10.4 /Layout Module /----------------Leerzeile 5 Pt.-------------------- @ 120\mod_1342592918145_0.docx @ 1092566 @ @ 1
Pos: 25.10.5 /BA/Erstinbetriebnahme/Schwader/Swadro 807_810_907/Hinweis Unterlenker @ 2\mod_1202364126303_78.docx @ 58751 @ @ 1
Note
The tractor lower suspension arms must always be installed so that the lifting points of the
lower suspension arms are all at the same distance from the ground. In order to prevent
swivelling of the machine during transport or operation, the lower suspension arms must be
secured by limiting chains or bars.
Pos: 25.11 /BA/Erstinbetriebnahme/Wender/Hinweis - Je nach Traktortyp evtl. Anhängekupplung abbauen. @ 172\mod_1370506026261_78.docx @ 1479993 @ @ 1
CAUTION! – Collision with the trailer coupling
Effect: Damage to the tractor or machine
Depending on the type of tractor, the top link of the tractor and/or the universal shaft of the
machine could collide with the trailer coupling.
• To prevent damage, it may be necessary to detach the trailer coupling. For further
information refer to the tractor manufacturer's operating instructions.
Pos: 25.12 /Layout Module /----------------Leerzeile-------------------- @ 240\mod_1395147357027_0.docx @ 1890988 @ @ 1
Pos: 25.13 /Überschriften/Überschriften 2/U-Z/Unterlenker ankuppeln @ 134\mod_1350461609810_78.docx @ 1186832 @ 2 @ 1
8.4

Connecting the Lower Link

Pos: 25.14 /BA/Inbetriebnahme/Schwader/Anbau an den Traktor/Unterlenker ankuppeln_Bild_SW 700# @ 173\mod_1371109817897_78.docx @ 1485999 @ @ 1
Fig. 11
Pos: 25.15 /BA/Inbetriebnahme/Schwader/Anbau an den Traktor/Unterlenker ankuppeln_Text @ 133\mod_1349872612749_78.docx @ 1178384 @ @ 1
• Connect the machine according to the operating instructions of the tractor manufacturer to
the lower links, raise it slightly and secure it.
• Place the machine onto the parking support.
• Turn off the tractor and secure it.
Pos: 25.16 /Layout Module /---------------Seitenumbruch---------------- @ 0\mod_1196175311226_0.docx @ 4165 @ @ 1
KS-0-030
SW700060
Commissioning
41
