In Case of Electro-Hydraulic Single-Rotor Lifting Mechanism Design

Pos: 31.79 /BA/Bedienung /Schwader/Kreiselarme senken/heben/Kreiselarme heben elektrisch Bild SW TC 680_760 @ 206\mod_1386598897039_78.docx @ 1711860 @ @ 1
5

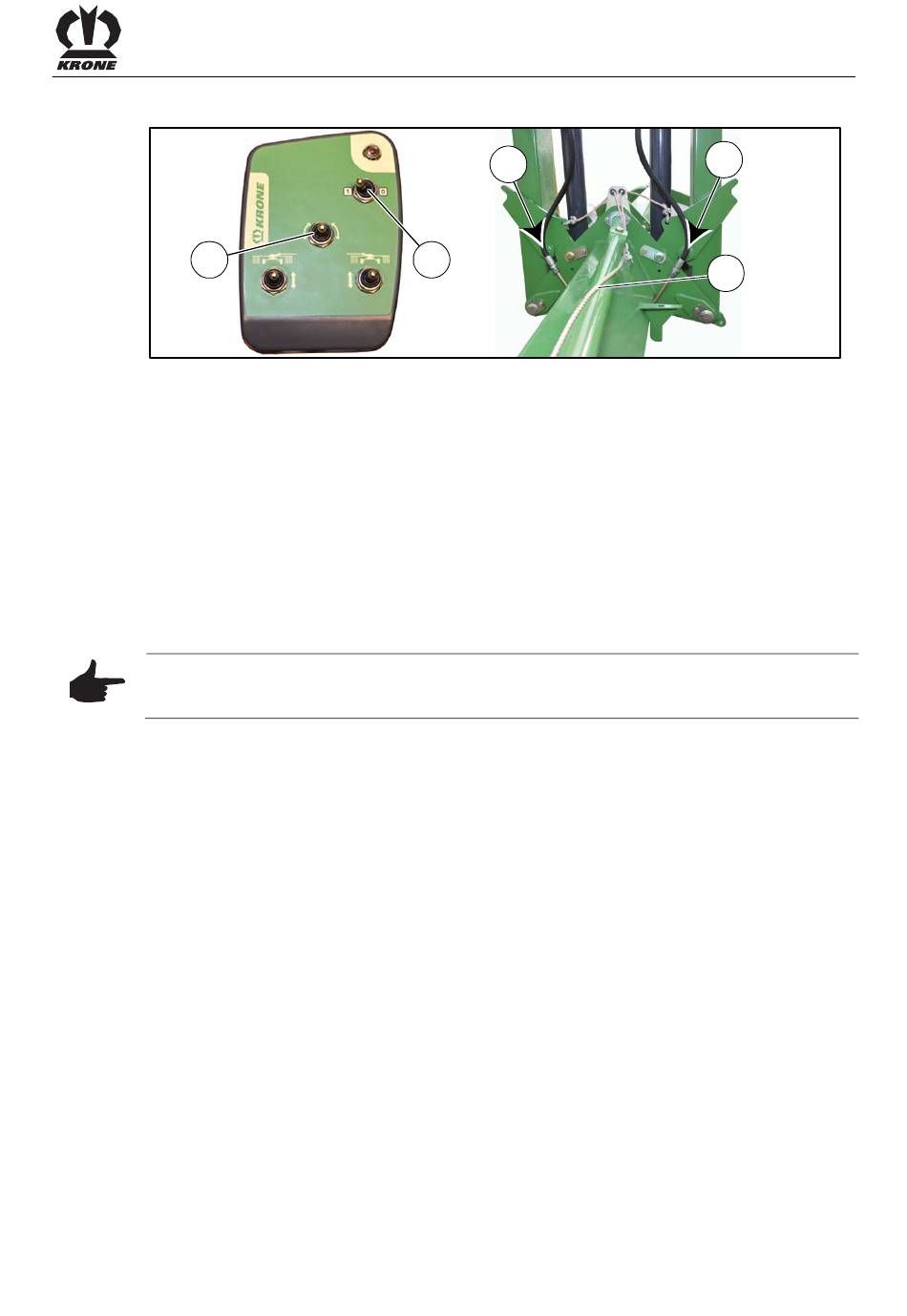

Fig. 41
Pos: 31.80 /BA/Bedienung /Schwader/Kreiselarme senken/heben/Kreiselarme heben elektrisch Text Swadro TC 680_TC 760_TC 760 X-tr @ 222\mod_1391752388609_78.docx @ 1802135 @ @ 1
• Switch on the controls via switch (3) (0 > 1).
• Set switch (5) to the central position.
• Switch on the tractor.
• In order to lift the locks (1), pull the operating rope (2) and keep it tensioned.
• Actuate the single-action control unit until the rotors have been lifted to the transport
position.
• Release the operating rope.
• Actuate the single-action control unit until the locks (1) on the right and left-hand side
engage in the retaining bolts.
• Set all hydraulic control units to the neutral position.
• Visually inspect whether the retaining bolts have engaged correctly in the locks (1).
• Switch off the controls via switch (3).
Pos: 31.81 /BA/Bedienung /Schwader/Kreiselarme senken/heben/Hinweis Achten Sie auf die Transportverriegelung @ 77\mod_1310110710995_78.docx @ 667836 @ @ 1
Note
Make certain the transport locks engage correctly and the actuating rope is not tight. Perform a
visual inspection to ensure the locks (1) have engaged correctly.
