11.8

Swivelling tine arms into transport position

Pos: 31.57 /BA/Sicherheit/8. Voraussetzungen/Handlungsanweisung für alle Maschinen/Handlungsanweisung: Maschine stillsetzen und sichern @ 274\mod_1404365253849_78.docx @ 2065151 @ @ 1
• Shut down and safeguard the machine, see chapter Safety -> Safety routines, "Shutting
down and safeguarding the machine".
Pos: 31.58 /Überschriften/Überschriften 3/A-E/B/Bei Ausführung starre Zinkenarme @ 78\mod_1313495329521_78.docx @ 691511 @ 3 @ 1
11.8.1

With rigid tine arms design

Pos: 31.59 /BA/Bedienung /Schwader/Zinken / Zinkenarme/Zinkenarme in Transportstellung_Ausführung starre Zinkenarme_Bild_SW 700_800_900 @ 78\mod_1313498320084_78.docx @ 691661 @ @ 1

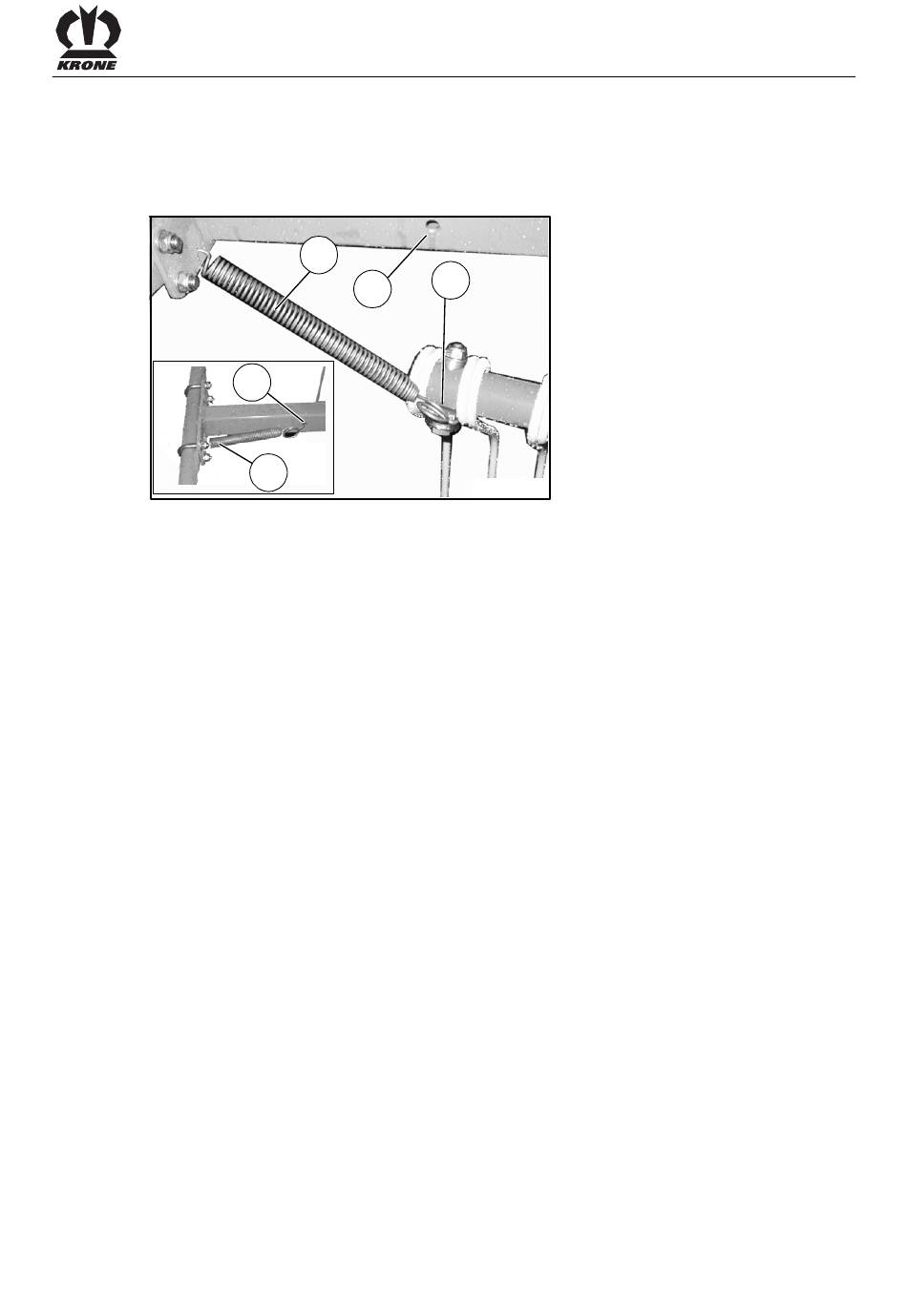

Fig. 37
Pos: 31.60 /BA/Bedienung /Schwader/Zinken / Zinkenarme/Zinkenarme in Transportstellung_Ausführung starre Zinkenarme_Text @ 134\mod_1350640178735_78.docx @ 1190521 @ 3 @ 1
11.8.2

Fixing the Rotors

• Lower the rotor arms into working position.
• Turn off the tractor and secure it against the possibility of rolling back.
• To prevent the rotors from turning, unhook the tension spring (4) from the retaining bore (5)
and hook into the fastening clamp (6).
Pos: 31.61 /Layout Module /---------------Seitenumbruch---------------- @ 0\mod_1196175311226_0.docx @ 4165 @ @ 1
4
5
5
4
6
SW700057
Operation
69
