11.2

Lowering Outrigger Arms into Working Position

Pos: 31.10 /BA/Sicherheit/8. Voraussetzungen/Handlungsanweisung für alle Maschinen/Handlungsanweisung: Maschine stillsetzen und sichern @ 274\mod_1404365253849_78.docx @ 2065151 @ @ 1
• Shut down and safeguard the machine, see chapter Safety -> Safety routines, "Shutting
down and safeguarding the machine".
Pos: 31.11 /Überschriften/Überschriften 3/A-E/B/Bei Ausführung ohne Einkreiselaushebung @ 77\mod_1310110349917_78.docx @ 667808 @ 3 @ 1
11.2.1

For design without single-rotor lifting mechanism

Pos: 31.12 /BA/Bedienung /Schwader/Kreiselarme senken/heben/Kreiselarme senken bei Ausführung ohne Einkreiselaushebung SW 700#_800# (Bild) @ 156\mod_1364201932285_78.docx @ 1381253 @ @ 1
2

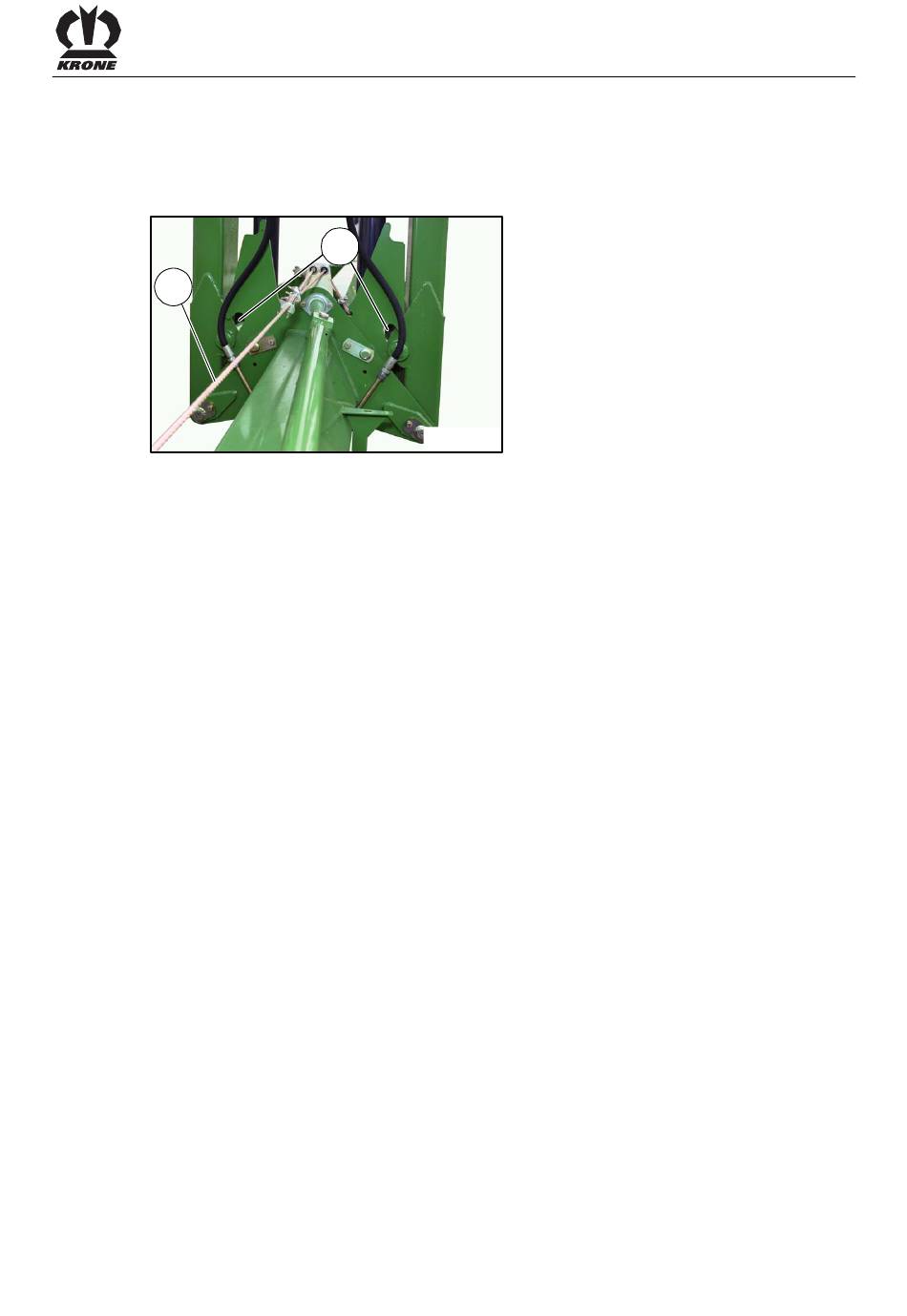

Fig. 27
Pos: 31.13 /BA/Bedienung /Schwader/Kreiselarme senken/heben/Kreiselarme senken bei Ausführung ohne Einkreiselaushebung SW TC 680_760 (Text) @ 214\mod_1390377372123_78.docx @ 1754835 @ @ 1
• Switch on the tractor.
• To relieve the locks (1), actuate the single-action control unit at the tractor and pressurise
the hydraulic cylinders.
• To release the locks
• Set the single-action control unit (red 1+) of the tractor to the float position.
• When the rotors are in the working position, release the actuating rope (2).
• Switch off the tractor and secure it against the possibility of rolling back.
Pos: 31.14 /Layout Module /---------------Seitenumbruch---------------- @ 0\mod_1196175311226_0.docx @ 4165 @ @ 1
1
SW700065
(1), pull the actuating rope (2) and keep it tensioned.
Operation
59
