11.8.3

For design with collapsible tine arm

Pos: 31.63 /BA/Bedienung /Schwader/Zinken / Zinkenarme/Zinkenarme in Transportstellung schwenken @ 2\mod_1202719970173_78.docx @ 60219 @ @ 1
1

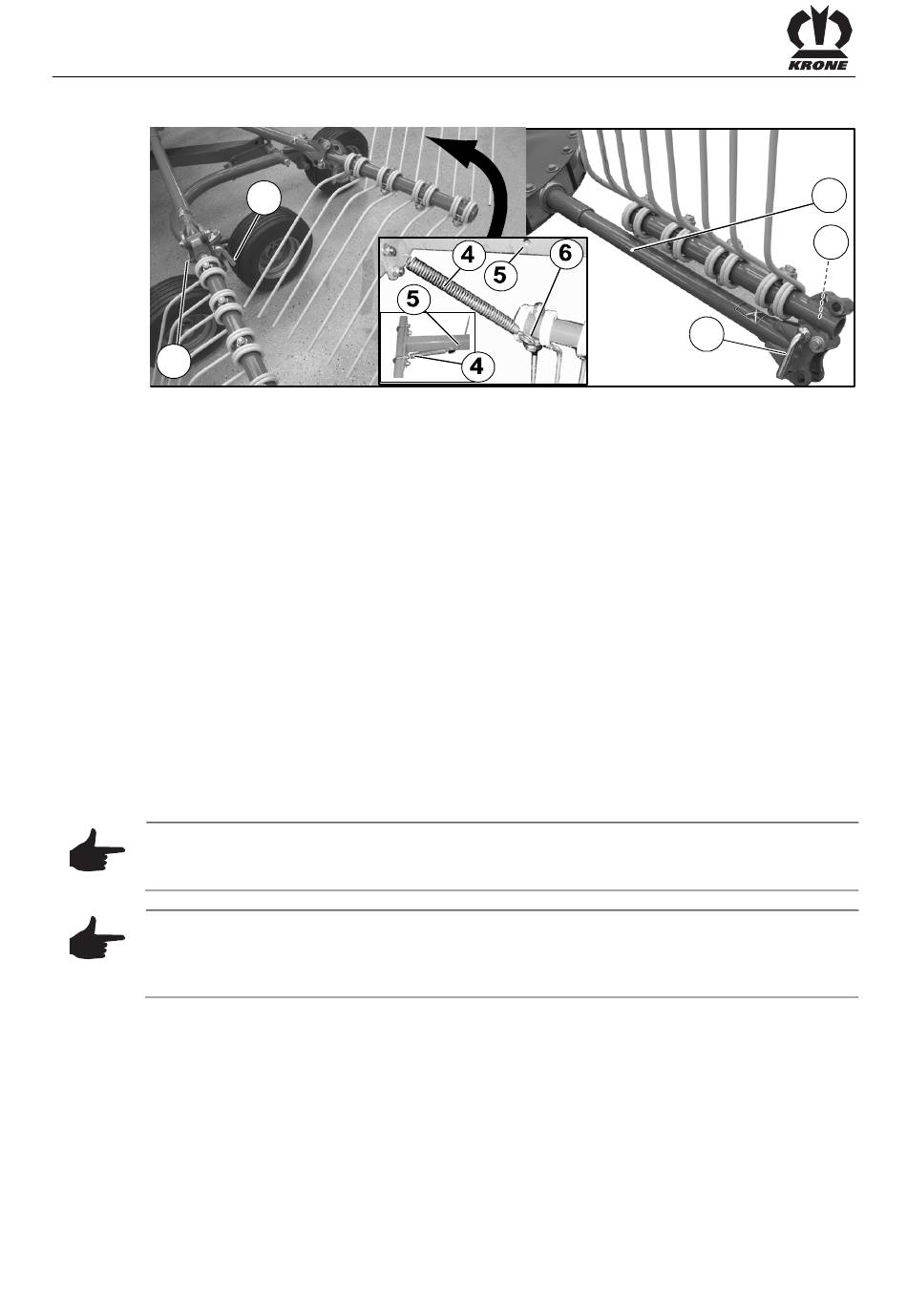

Figure 38
Firstly:
• Turn the left rotor far enough so that the swivelling tine arms are extended outwardly.
• Pull out the linch pin (1).
• Remove the bolts (2).
• Swivel tine arms (3) to transport position; the rotor must be turned so that the tine arms do
not collide with the protection when swivelling.
• Insert the bolts (2) and secure with the linch pin (1).
• Secure rotors so that they do not turn, unhook the tension spring (4) from the fastening hole
(5) and hook into the fastening clamp (6).
Then:
• Turn the right rotor far enough so that the swivelling tine arms are extended outwardly.
• Pull out the linch pin (1).
• Remove the bolts (2).
• Swivel tine arms (3) to transport position; the rotor must be turned so that the tine arms do
not collide with the protection when swivelling.
• Insert the bolts (2) and secure with the linch pin (1).
• Secure rotors so that they do not turn, unhook the tension spring (4) from the fastening hole
(5) and hook into the fastening clamp (6).
Note
Check that the swivelling tine arms of both rotors are extended outwards. If necessary, move
rotors to correct position.
Note
Swivel the right collapsible tine arm on the machine side in sequence from the front backwards
and the left collapsible tine arm on the machine side in sequence from the back forwards to the
transport position.
