9.5

Connecting the Operation

Pos: 27.37 /Abkürzungen /Bei Variante Plus @ 302\mod_1414047391014_78.docx @ 2355775 @ @ 1
In case of Plus version
Pos: 27.38 /BA/Inbetriebnahme/Schwader/Hinweis Sauberkeit der Stecker und Steckdosen @ 2\mod_1202399563131_78.docx @ 59273 @ @ 1
Note
Before inserting the plugs, make certain the plugs and sockets are clean and dry. Dirt and
moisture may result in short circuits!
Pos: 27.39 /BA/Inbetriebnahme/Schwader/Anschluss elektrische Bedienung/Anschluss elektrische Bedienung Swadro TC 680_760 @ 302\mod_1414052075029_78.docx @ 2355917 @ @ 1
3

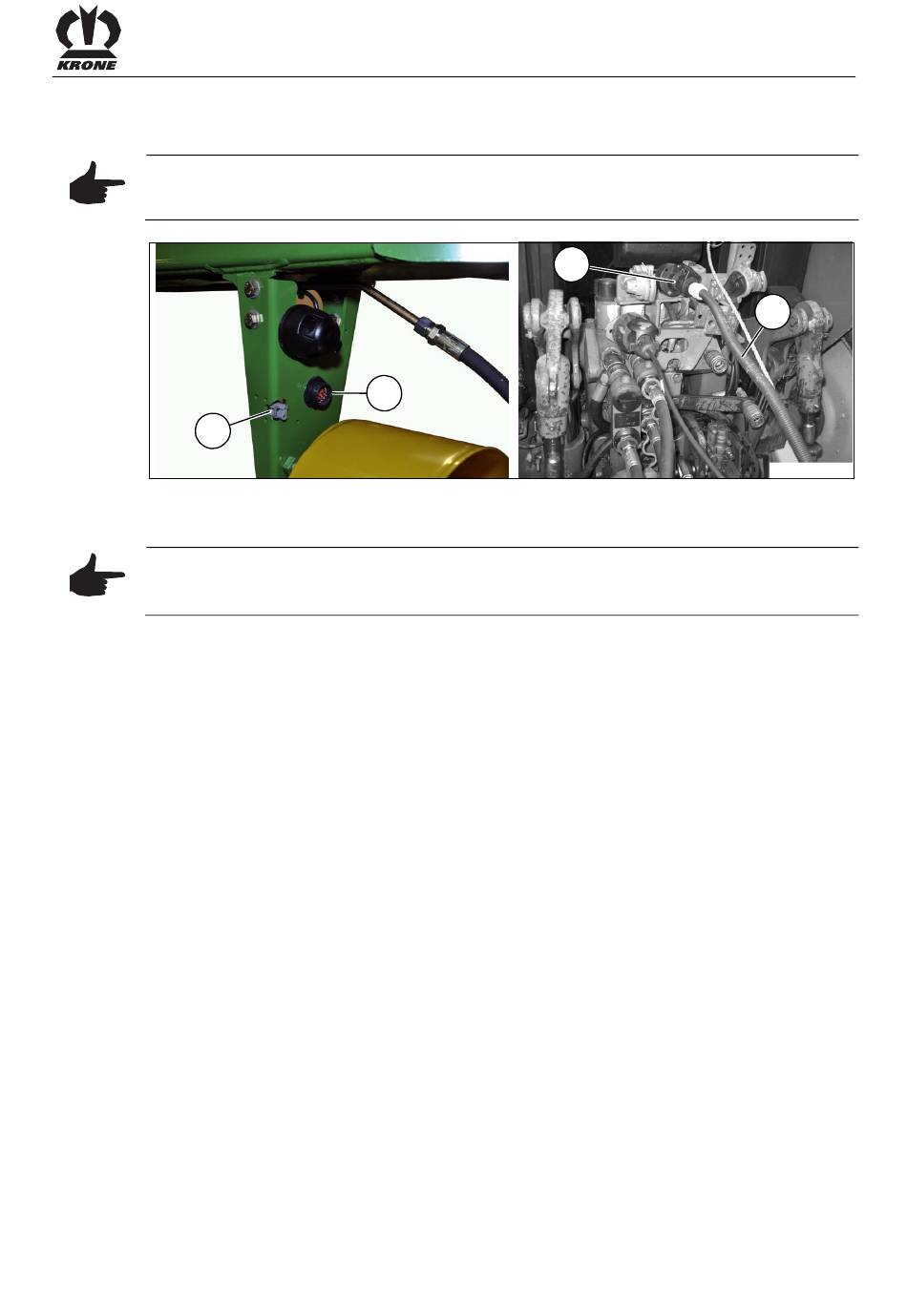

Fig. 18
The connection for operation is made via power supply cable (1).
Note
If need be, mount socket for power supply and support for operation panel on the tractor
beforehand.
To do this:
• Connect power supply cable (1) with socket for power supply (2) to tractor and with socket
(3) to the machine.
• Insert the plug of the operation panel into the appropriate socket (4) of the machine.
• Lay the cables so that they do not touch the wheels.
Pos: 27.40 /Layout Module /---------------Seitenumbruch---------------- @ 0\mod_1196175311226_0.docx @ 4165 @ @ 1
4
2
Start-up
1
SW700089
49
