Operation
Pos: 31.73 /Überschriften/Überschriften 3/A-E/B/Bei Ausführung mit hydraulischer Einkreiselaushebung @ 77\mod_1310050459478_78.docx @ 667495 @ 3 @ 1
11.9.2

For design with hydraulic single-rotor lifting mechanism

Pos: 31.74 /BA/Bedienung /Schwader/Kreiselarme senken/heben/Kreiselarme heben mit Einkreiselaushebung Bild Swadro TC 680_TC 760_TC 760 X-tr @ 221\mod_1391691219749_78.docx @ 1799015 @ @ 1

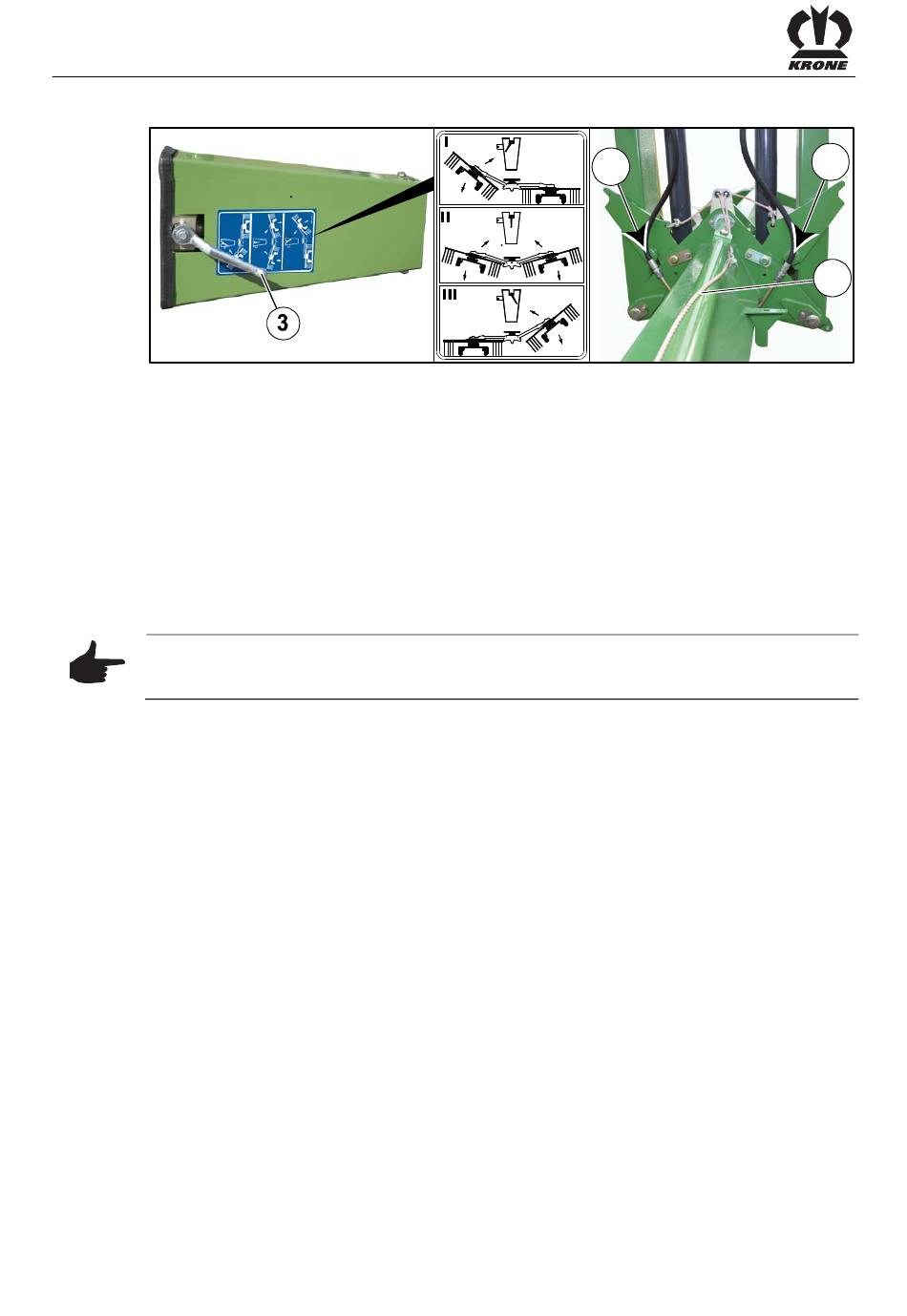

Fig. 40
• Set switching valve (3) to the central position (II).
Pos: 31.75 /BA/Bedienung /Schwader/Kreiselarme senken/heben/Kreiselarme heben mit und ohne Einkreiselaushebung Text Swadro TC 680_TC 760_TC 760 X-tr @ 221\mod_1391690340653_78.docx @ 1798756 @ @ 1
• Switch on the tractor.
• In order to lift the locks (1), pull the operating rope (2) and keep it tensioned.
• Actuate the single-action control unit until the rotors have been lifted to the transport
position.
• Release the operating rope.
• Actuate the single-action control unit until the locks (1) on the right and left-hand side
engage in the retaining bolts.
• Set all hydraulic control units to the neutral position.
• Visually inspect whether the retaining bolts have engaged correctly in the locks (1).
Pos: 31.76 /BA/Bedienung /Schwader/Kreiselarme senken/heben/Hinweis Achten Sie auf die Transportverriegelung @ 77\mod_1310110710995_78.docx @ 667836 @ @ 1
Note
Make certain the transport locks engage correctly and the actuating rope is not tight. Perform a
visual inspection to ensure the locks (1) have engaged correctly.
Pos: 31.77 /Layout Module /---------------Seitenumbruch---------------- @ 0\mod_1196175311226_0.docx @ 4165 @ @ 1
72
