Setting the Working Height

Pos: 31.34 /BA/Bedienung /Schwader/Kreiselhöhe einstellen (vorher: Arbeitstiefe)/Einstellen der Arbeitshöhe - mechanisch SW TC 680_760 @ 303\mod_1414136111440_78.docx @ 2357067 @ @ 1
Setting the working height in case of the mechanical version

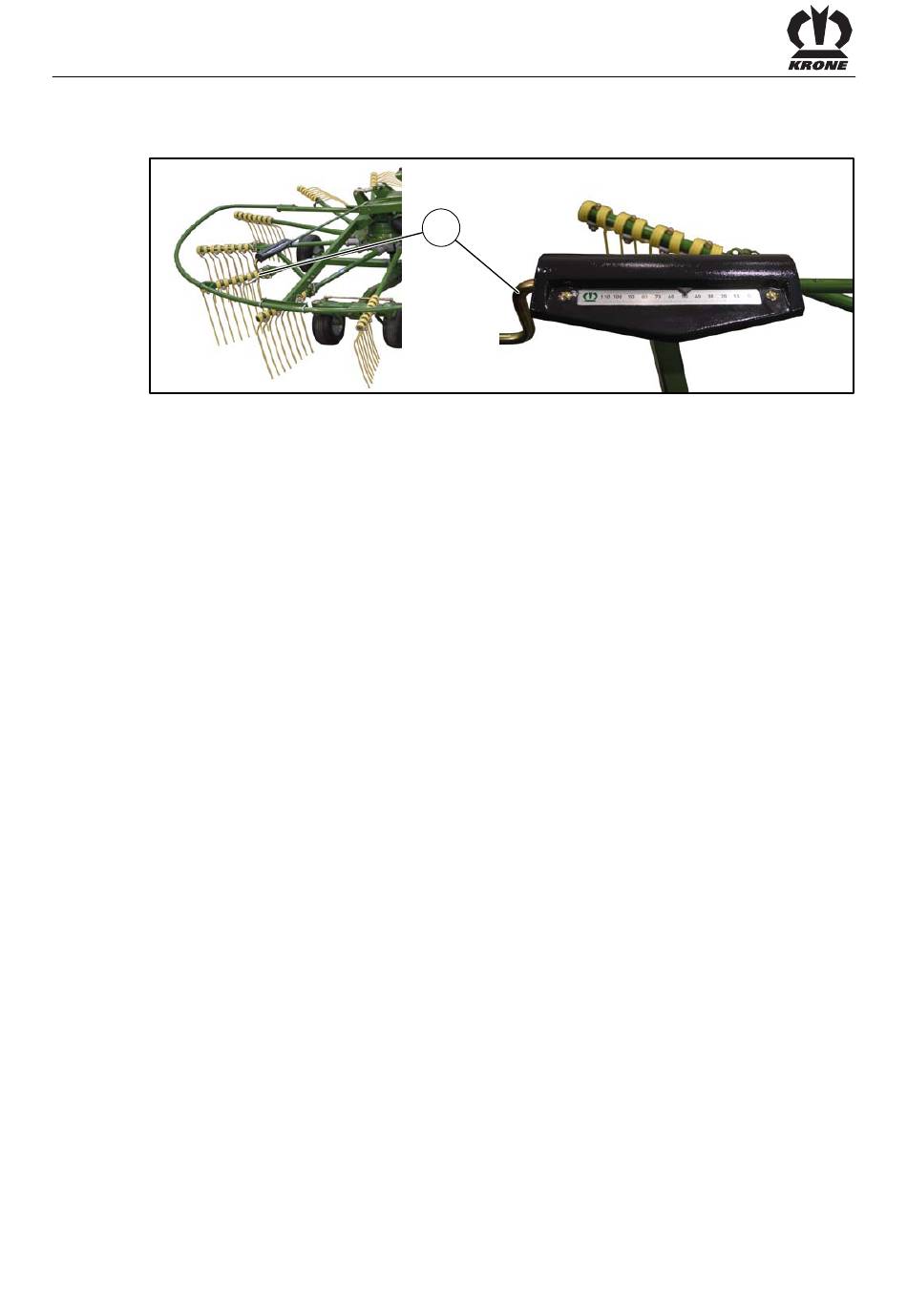

Fig. 33
• Lower outrigger arms into working position.
• Raise the lower links until the lower link pinions are approx. 630 mm above the ground.
• Switch off the tractor and secure it against the possibility of rolling away.
• Turn the crank (1) to the right to increase the spacing of tines to the ground.
• Turn the crank (1) to the left to reduce the spacing of the tines to the ground.
