Switching off the machine

Pos: 29.16 /BA/Sicherheit/2. Vorangestellte Warnhinweise/Warnung - Maschine sicher abstellen ohne Traktor_Unterlegkeile @ 278\mod_1404972644211_78.docx @ 2083305 @ @ 1
WARNING!
Risk of injury due to the unsecured machine rolling away!
If the machine is not secured against rolling away when it has been switched off, there is a risk
of people being injured by the machine rolling away in an uncontrolled manner.
• Secure the machine against rolling away with wheel chocks.
Pos: 29.17 /BA/Bedienung /Schwader/Abbau/Abbau vom Traktor Bild SW TC 680_TC 760_TC 760 X-tr @ 213\mod_1389959592198_78.docx @ 1748669 @ @ 1
6
3

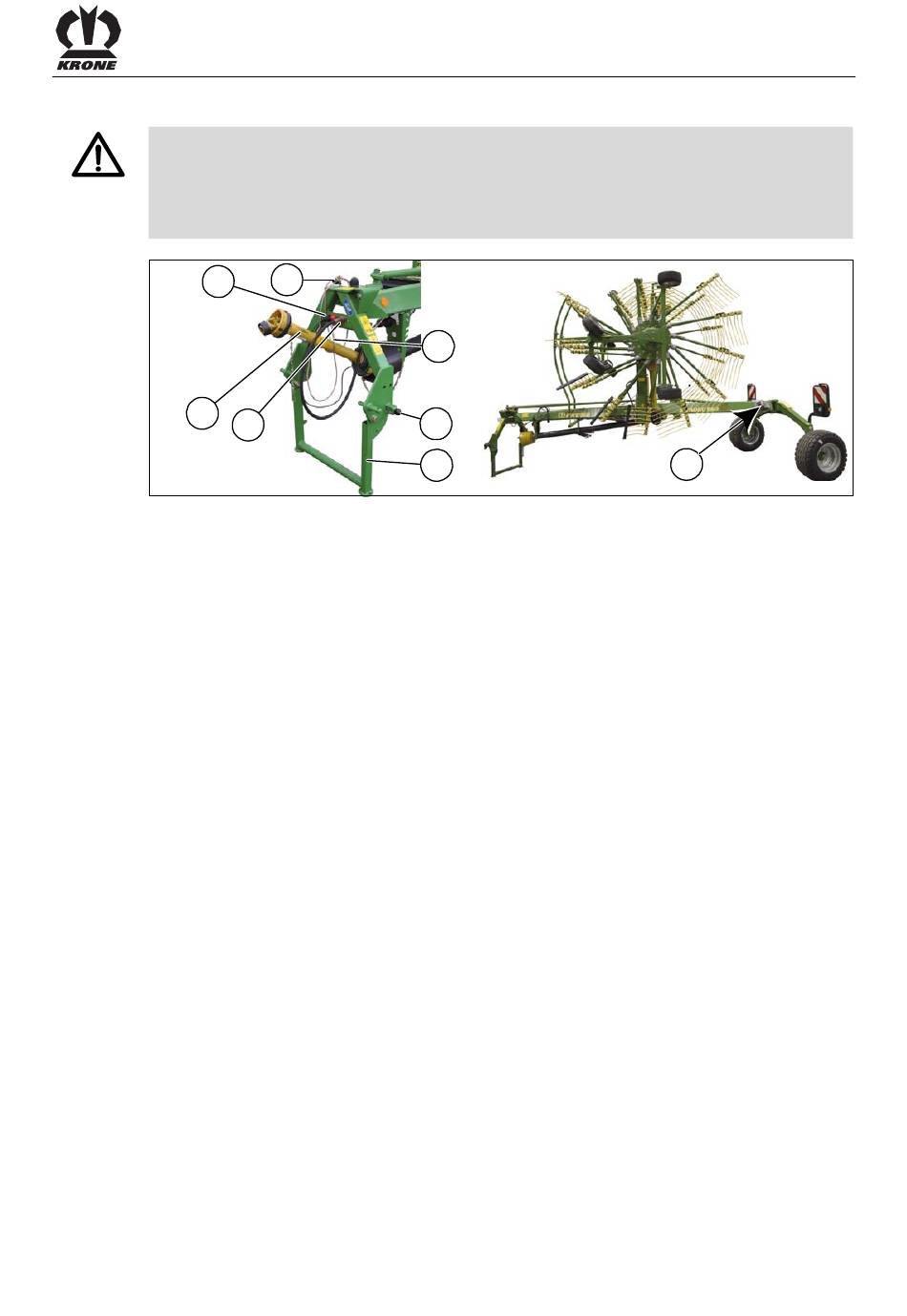

Fig. 25
Pos: 29.18 /BA/Bedienung /Schwader/Abbau/Abbau vom Traktor Text Swadro TC 680_760 @ 303\mod_1414138461498_78.docx @ 2357341 @ @ 1
Choose a level, dry and adequately stable surface.
• Set control unit(s) to float position.
• Switch off tractor and secure it against the possibility of rolling away.
• Secure the machine against the possibility of rolling away by means of wheel chocks (8).
• To swivel the parking support (1) downward, pull the bolt (2), swivel parking support
downward until the bolt locks.
• Lower the lower links until the parking support is on the ground.
• Disconnect universal shaft (3) and lay it down on the support (4).
• Uncouple hydraulic hoses (5) and insert them into the supports.
• Loosen lighting cable (6) between tractor and machine and insert it into the supports
intended for this purpose.
• Disconnect the power supply plug (7) (optional) between tractor and machine and place it in
the supports.
• Put down the operating cable.
• Lower the lower link pinions of the tractor until the tractor can be driven away safely.
