Selecing Rotor Operation

Depending on how the machine is equipped, different rotor operations can be selected with the
rotary rake.
Twin-rotor operation: Swath placement to the middle with right and left rotor
Single rotor operation: Swath placement to the middle with left rotor
Single rotor operation: Swath placement to the middle with the right rotor
Pos: 31.88 /Überschriften/Überschriften 3/A-E/B/Bei Ausführung mit hydraulischer Einkreiselaushebung @ 77\mod_1310050459478_78.docx @ 667495 @ 3 @ 1
11.11.1

For design with hydraulic single-rotor lifting mechanism

Pos: 31.89 /BA/Bedienung /Schwader/Schwaden/Kreiselbetriebe bei Ausführung hydraulische Einkreiselaushebung @ 225\mod_1392377947864_78.docx @ 1821250 @ @ 1

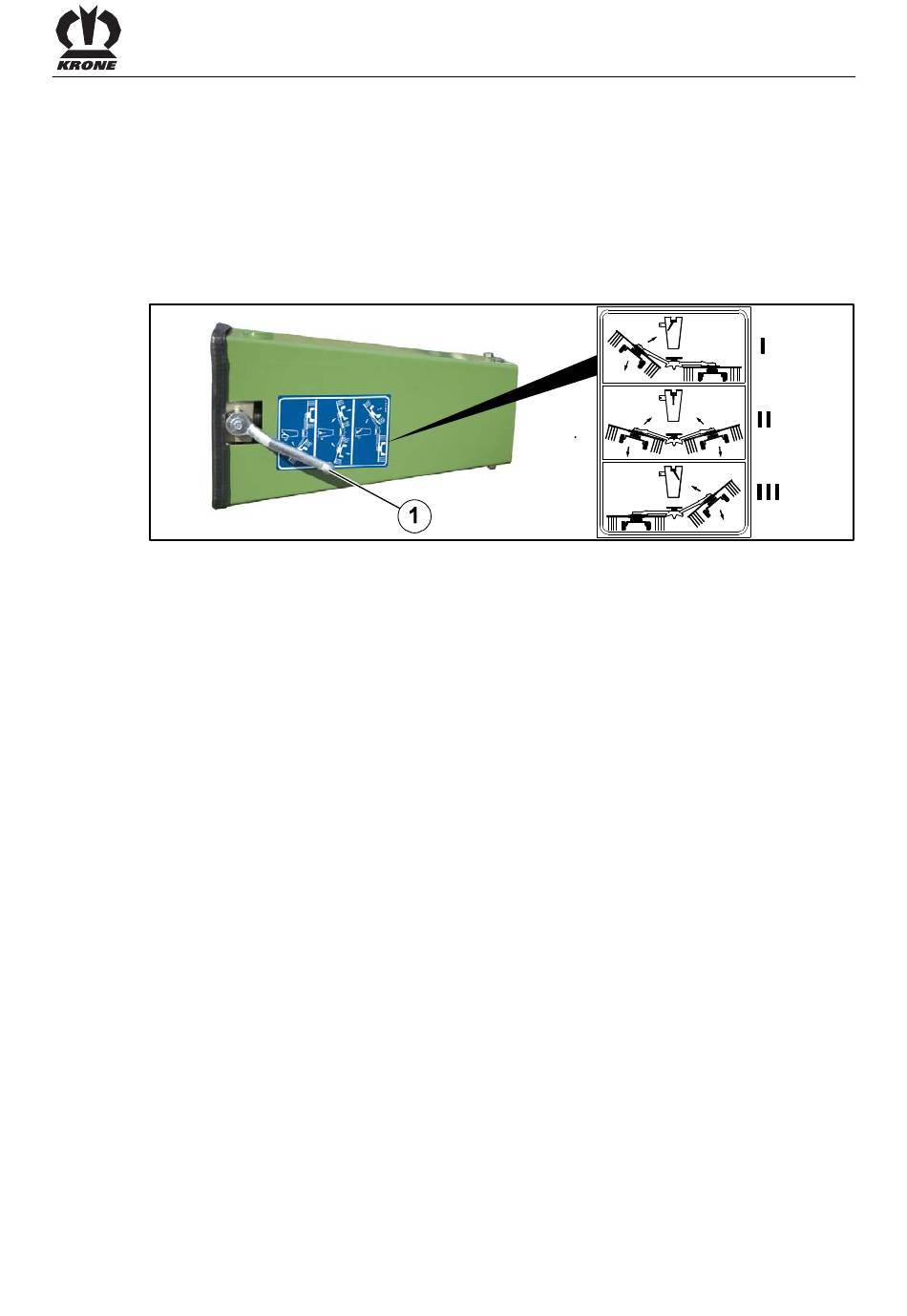

Fig. 43
Single-Rotor Operation with Right Rotor
To swath just with the right rotor, proceed as follows:
• Move the rotor arms to the working position.
• Move the switching valve (1) to position (1).
• Activate the single-acting control unit to lift the left rotor into headland position.
Twin-Rotor-Operation
To swath with both rotors, proceed as follows:
• Move the rotor arms to the working position.
• Bring switching valve (1) to position (II).
• Move the single-acting control unit to position ("Lowering / Float Position").
Single-Rotor Operation with Left Rotor
To swath just with the left rotor, proceed as follows:
• Move the rotor arms to the working position.
• Move the switching valve (1) to position (III).
• Activate the single-acting control unit to lift the right rotor into headland position.
