11.6

Adjusting the Working Width

Pos: 31.39 /BA/Sicherheit/8. Voraussetzungen/Handlungsanweisung für alle Maschinen/Handlungsanweisung: Maschine stillsetzen und sichern @ 274\mod_1404365253849_78.docx @ 2065151 @ @ 1
• Shut down and safeguard the machine, see chapter Safety -> Safety routines, "Shutting
down and safeguarding the machine".
Pos: 31.40 /BA/Bedienung /Schwader/Bei Ausführung mechanische Arbeitsbreitenverstellung: @ 77\mod_1310372030273_78.docx @ 668105 @ @ 1
For design with mechanical working width setting:
Pos: 31.41 /BA/Bedienung /Schwader/Ausführung mechanische Arbeitsbreitenverstellung Bild SW 700_ 800_900 @ 77\mod_1310545909337_78.docx @ 669049 @ @ 1

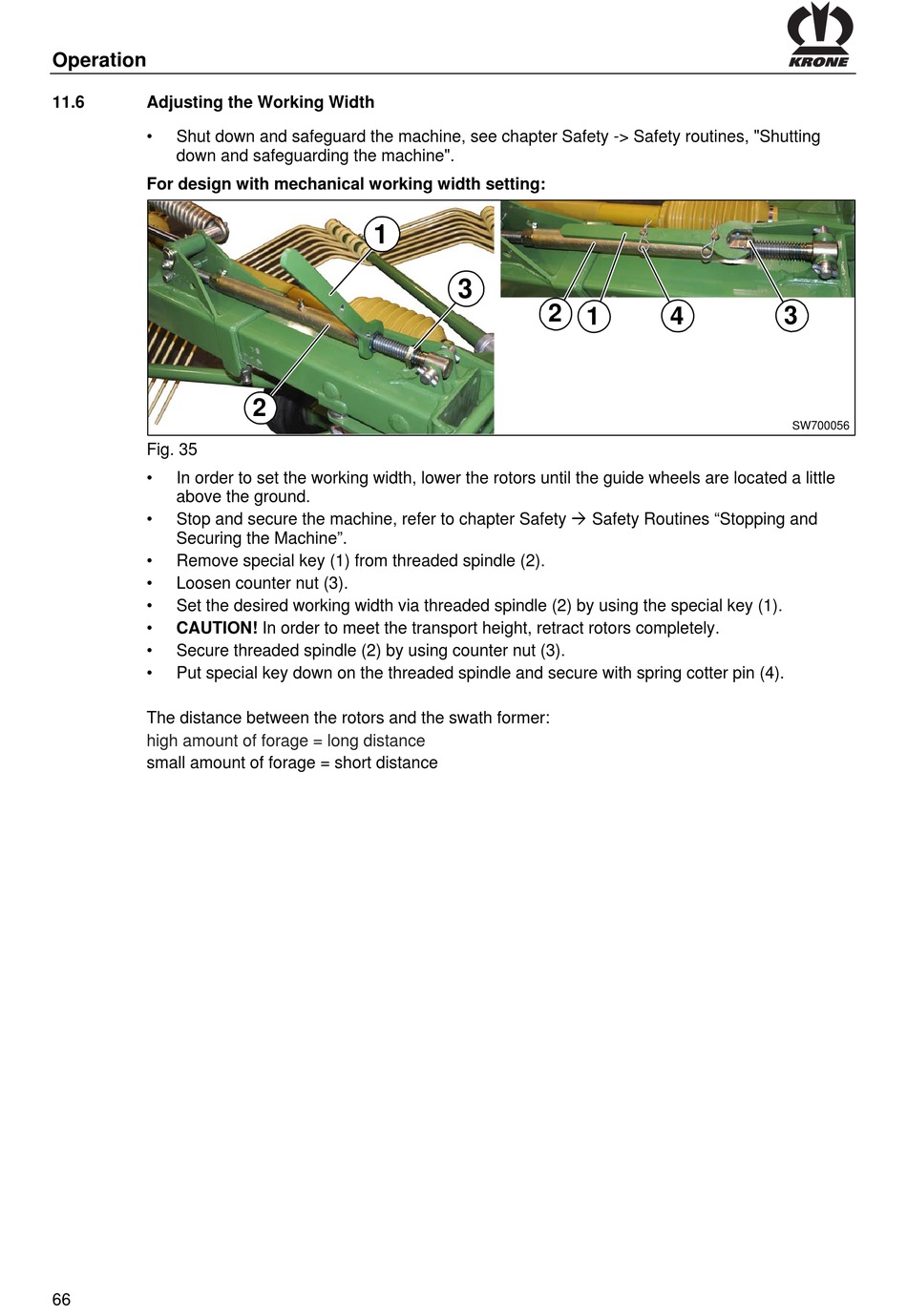

Fig. 35
Pos: 31.42 /BA/Bedienung /Schwader/Ausführung mechanische Arbeistbreitenverstellung Swadro TC 680_760 @ 303\mod_1414132276881_78.docx @ 2356856 @ @ 1
• In order to set the working width, lower the rotors until the guide wheels are located a little
above the ground.
Stop and secure the machine, refer to chapter Safety  Safety Routines "Stopping and
•
Securing the Machine".
• Remove special key (1) from threaded spindle (2).
• Loosen counter nut (3).
• Set the desired working width via threaded spindle (2) by using the special key (1).
• CAUTION! In order to meet the transport height, retract rotors completely.
• Secure threaded spindle (2) by using counter nut (3).
• Put special key down on the threaded spindle and secure with spring cotter pin (4).
Pos: 31.43 /BA/Bedienung /Schwader/Abstand der Kreisel zum Schwadformer @ 77\mod_1310104344400_78.docx @ 667697 @ @ 1
The distance between the rotors and the swath former:
high amount of forage = long distance
small amount of forage = short distance
