11.2.3

In Case of Electro-Hydraulic Single-Rotor Lifting Mechanism Design

Pos: 31.19 /BA/Bedienung /Schwader/Kreiselarme senken/heben/Kreiselarme senken -elektrisch SW TC 680_760 @ 303\mod_1414415758165_78.docx @ 2359157 @ @ 1
4

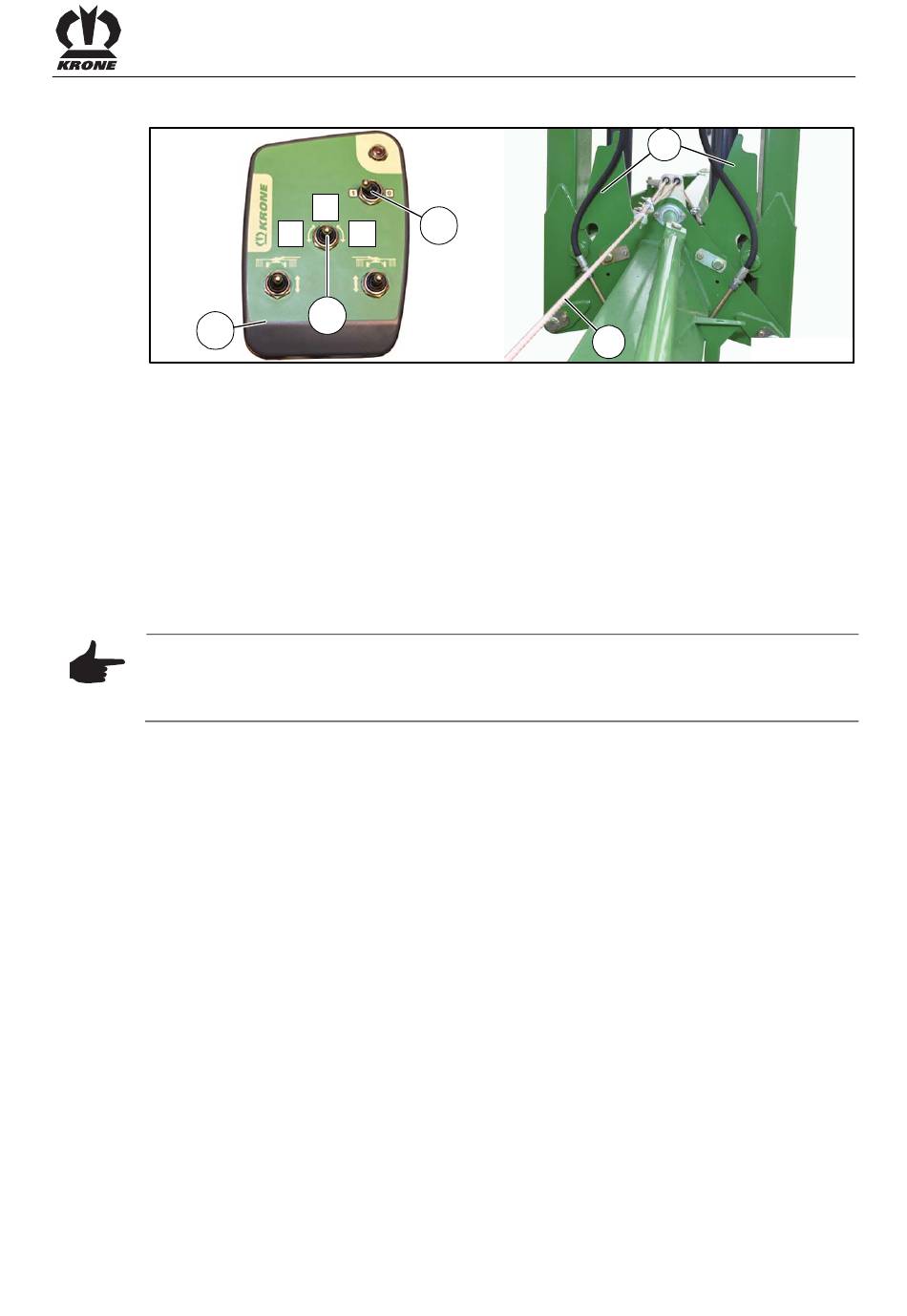

Fig. 29
• Fasten operation panel (4) in the tractor cab.
• Start tractor.
• Switch on operation panel (0>1).
• Move switch (5) into central position (II).
• In order to release the lockings (1), actuate the single-action control unit on the tractor and
pressurize the hydraulic cylinders.
• To release the lockings (1), pull the
• Set the single-action control unit (red 1+) of the tractor to float position.
• Release the actuating rope (2) when the rotors are located in the working position.
• Switch off tractor and secure it against the possibility of rolling away.
Pos: 31.20 /BA/Bedienung /Schwader/Kreiselarme senken/heben/Hinweis Kreiselarme senken ohne Einschhalten der Bedieneinheit @ 303\mod_1414414735689_78.docx @ 2358707 @ @ 1
Note
The changeover of the outrigger arms from the transport position into working position can also
be performed without the operation panel being switched on. In this case, both outrigger arms
are always activated at the same time.
Pos: 31.21 /Layout Module /---------------Seitenumbruch---------------- @ 0\mod_1196175311226_0.docx @ 4165 @ @ 1
II
3
III
I
5
actuating rope (2) and keep it tensioned.
Operation
1
2
SW700067_1
