Setting the working height in case of electrical design (optional))
3

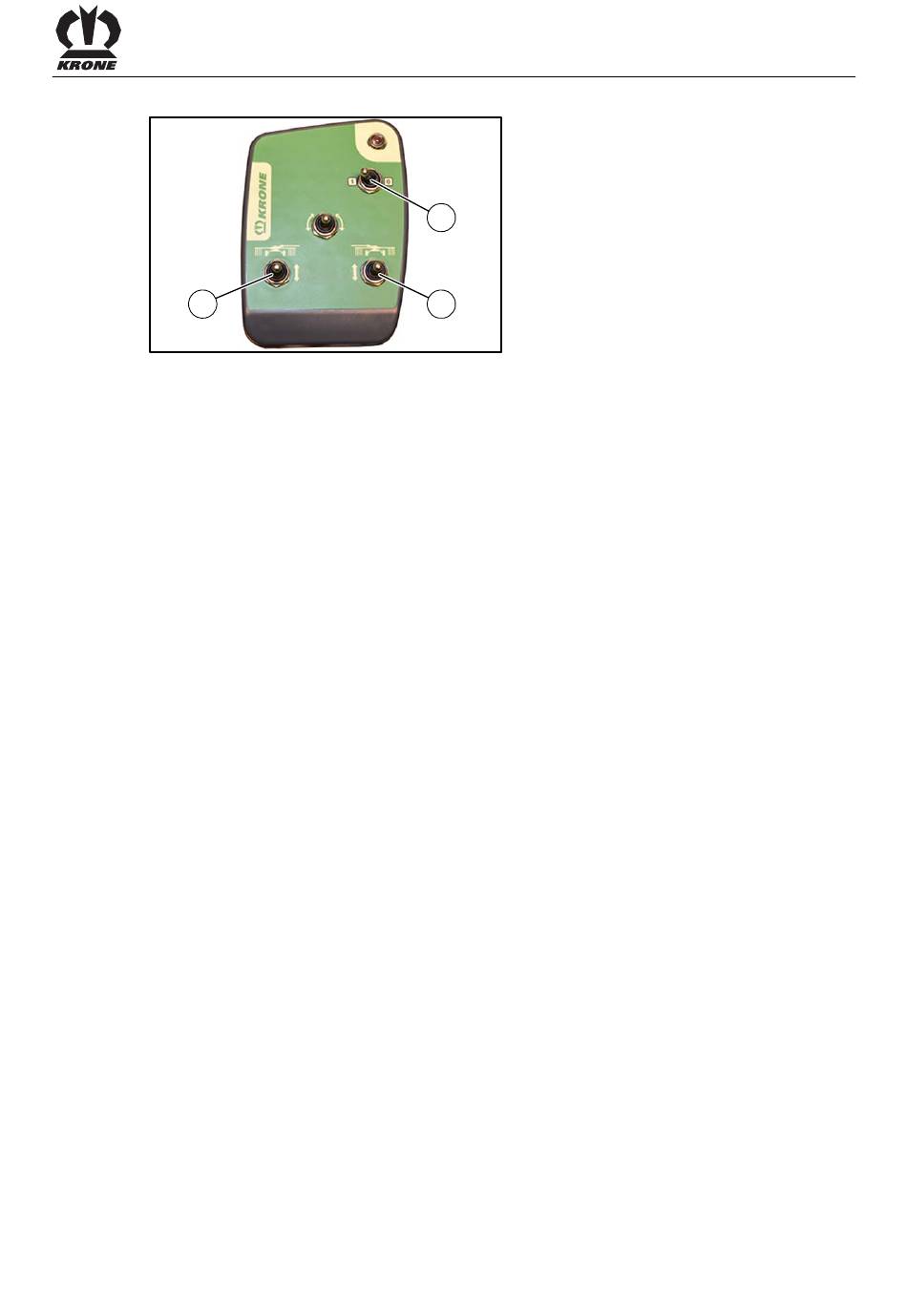

Fig. 34
The working height can be adapted to crop and terrain while the machine is in operation or in
headland position.
To do this:
•
Raise the lower links until the lower link pinions are located approx. 630 mm above the
ground.
•
Move outrigger arms to headland position or working position.
•
Switch on operation panel.
Working height of left rotor:
•
To increase the working height of the left rotor, press switch (3) upward.
•
To reduce the working height of the left rotor, press switch (3) downward.
Working height of right rotor:
•
To increase the working height of the right rotor, press switch (4) upward.
•
To reduce the working height of the right rotor, press switch (4) downward.
