Lighting connection

Pos: 27.32 /BA/Inbetriebnahme/Schwader/Hinweis Sauberkeit der Stecker und Steckdosen @ 2\mod_1202399563131_78.docx @ 59273 @ @ 1
Note
Before inserting the plugs, make certain the plugs and sockets are clean and dry. Dirt and
moisture may result in short circuits!
Pos: 27.33 /BA/Inbetriebnahme/Schwader/Anschluss Beleuchtung/Anschluss Beleuchtung Bild SW TC 680_TC 760_TC 760 X-tr @ 214\mod_1390396347380_78.docx @ 1755543 @ @ 1
3
Fig. 17
Pos: 27.34 /BA/Inbetriebnahme/Schwader/Anschluss Beleuchtung/Anschluss Beleuchtung Text @ 36\mod_1260783798936_78.docx @ 336718 @ @ 1

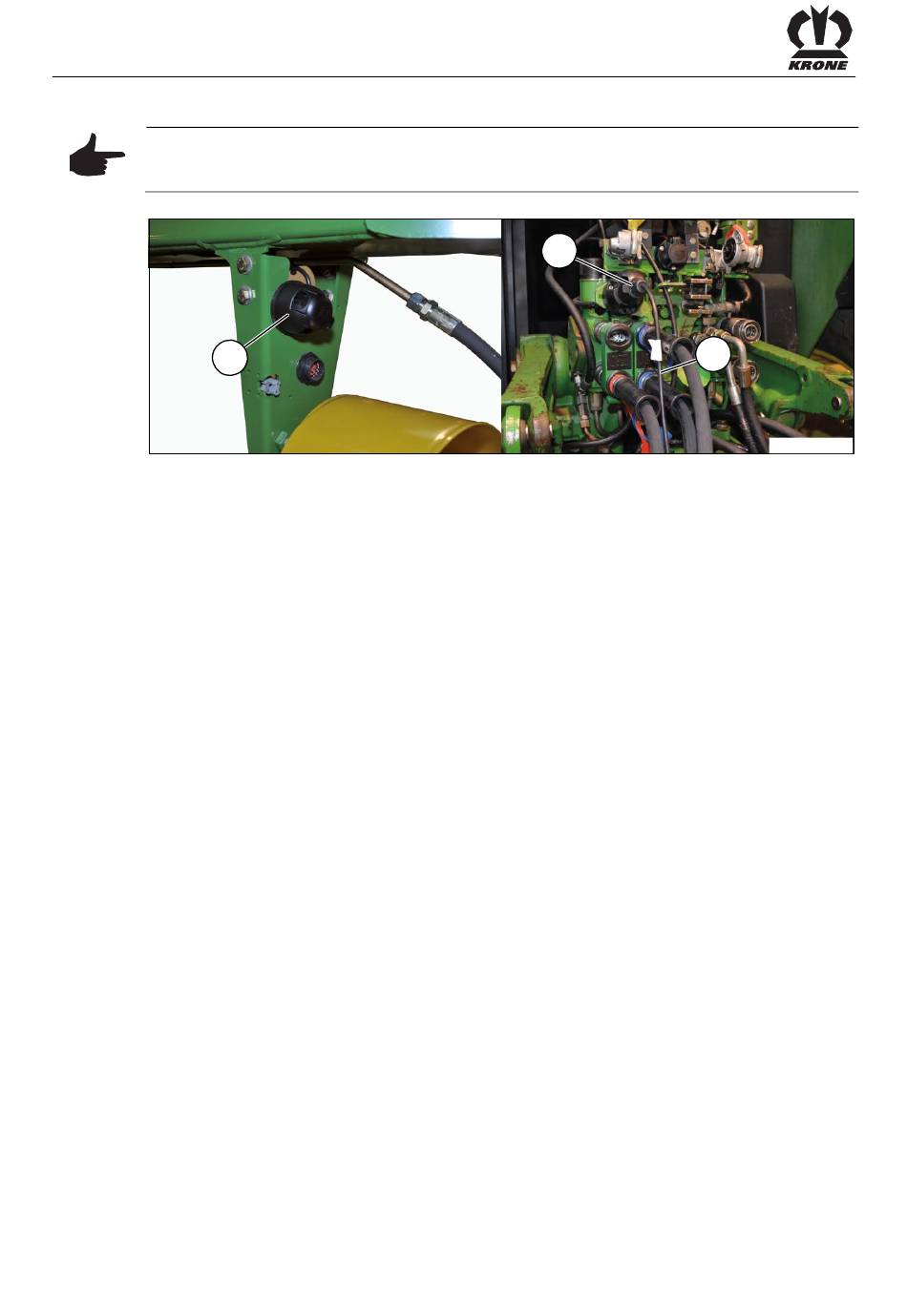

The lighting system is connected via the 7-pin connection cable (1).
To do this:
• Insert the 7-pin plug of the connection cable (1) into the relevant socket (2) of the tractor.
• Insert the 7-pin connection cable plug (1) into the appropriate socket (3) of the machine.
• Position the cable so that it will not come in contact with the wheels.
