Control and Display Elements
Pos: 23.4 /BA/Maschinenbeschreibung/Schwader/Funktionsübersicht Hydraulische Bedieneinheit @ 225\mod_1392617499198_78.docx @ 1821315 @ @ 1
With Hydraulic Single-Rotor Lifting Mechanism Design

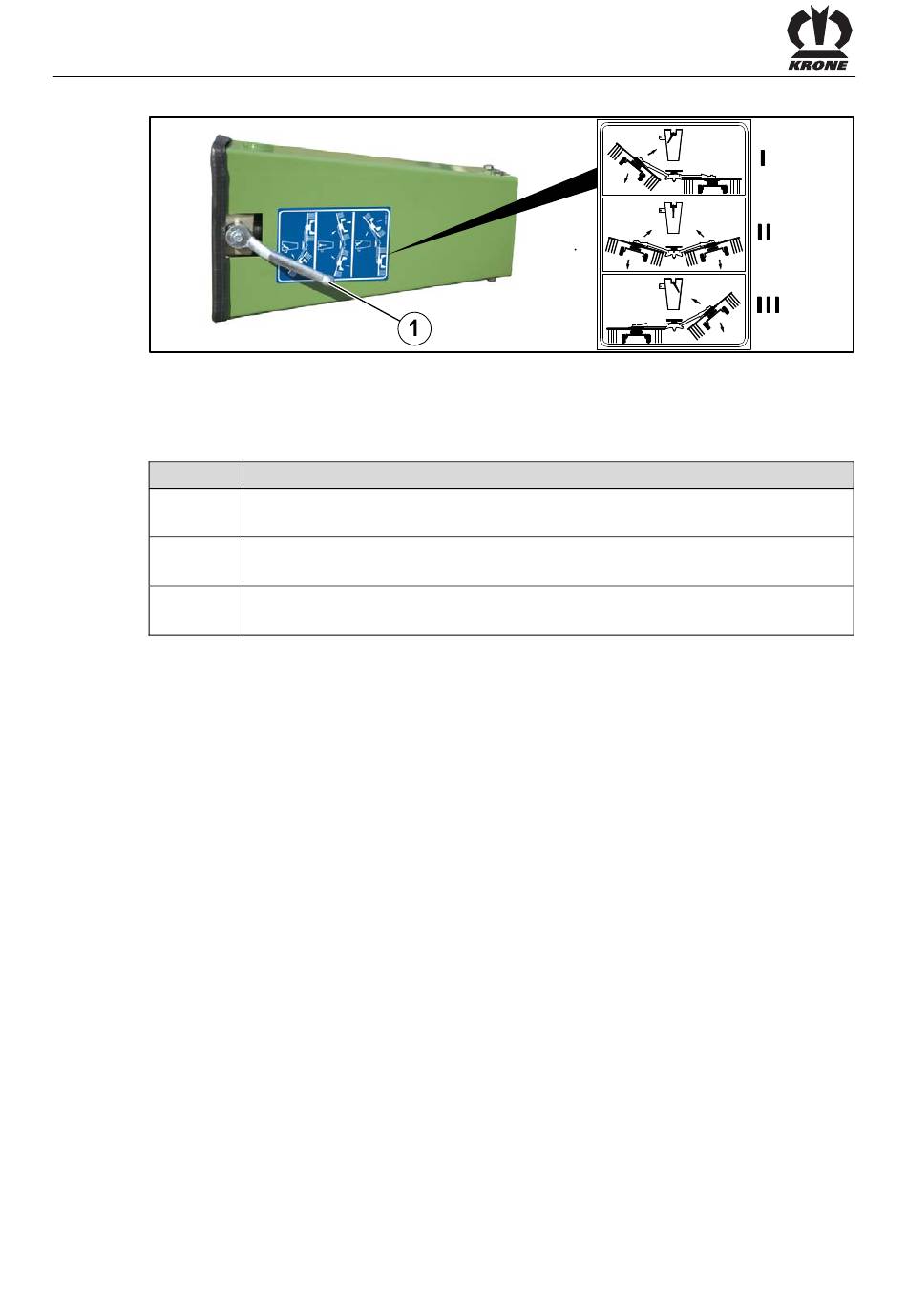

Fig. 8
The position of the switching valve (1) determines which rotor is lifted or lowered. The actual
movement is made via the single-acting control unit.
Position
I
II
III
Pos: 23.5 /Layout Module /---------------Seitenumbruch---------------- @ 0\mod_1196175311226_0.docx @ 4165 @ @ 1
38
Function
Single-rotor lifting mechanism of the left rotor:
The right rotor remains in working position. The left rotor is lifted or lowered.
Twin-rotor lifting mechanism:
Both rotors are lifted or lowered.
Single-rotor-lifting mechanism of the right rotor:
The left rotor remains in working position. The right rotor is lifted or lowered.
