11.3.1
For design with collapsible tine arm
Pos: 31.27 /BA/Bedienung /Schwader/Zinken / Zinkenarme/Zinkenarme in die Arbeitsstellung schwenken @ 304\mod_1414578966773_78.docx @ 2362456 @ @ 1
3

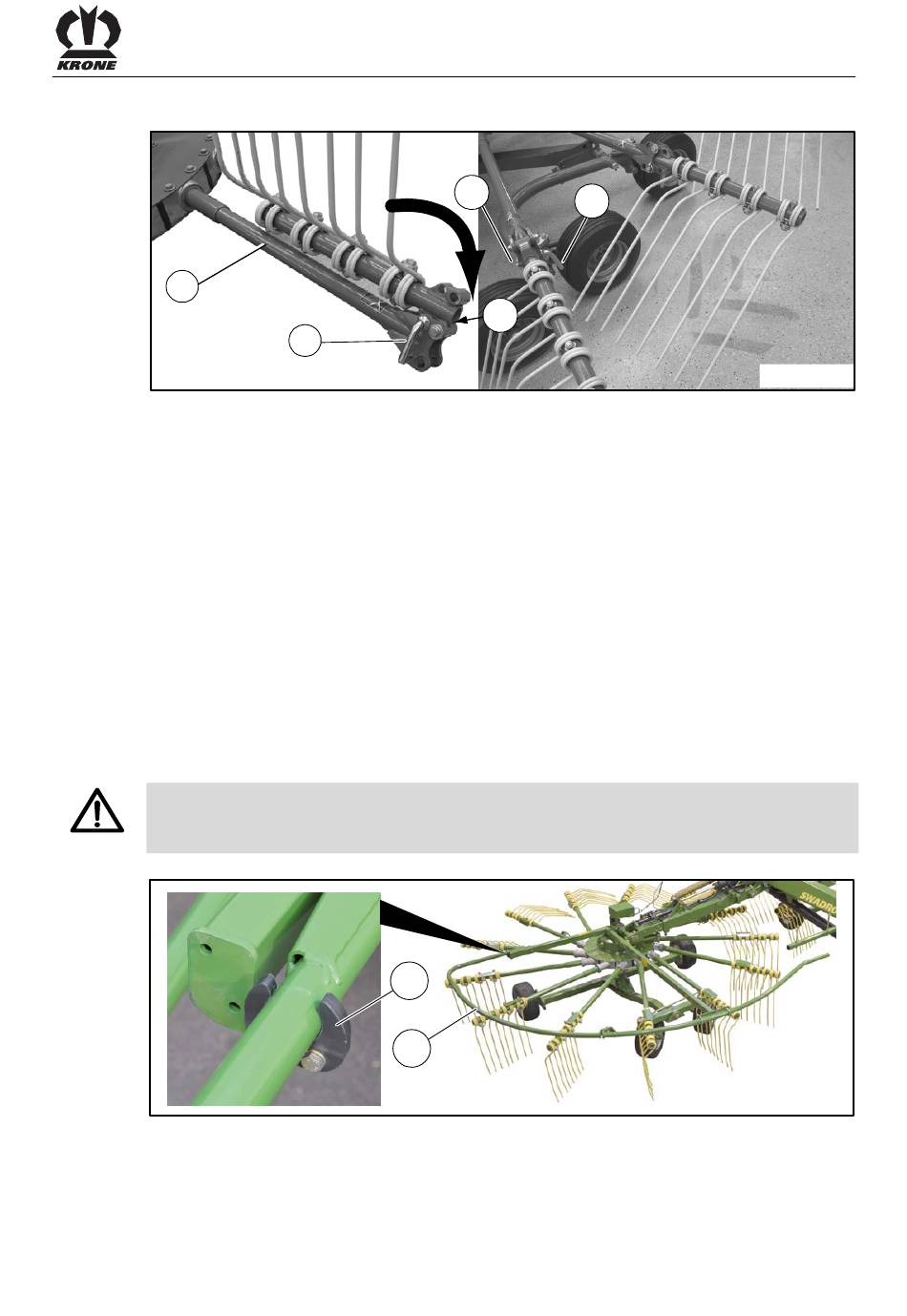

Fig. 31
NOTE! Swivel folding tine arms into working position in a certain order:
-
In direction of travel right, swivel the folding tine arms into working position starting from the
rear.
-
In direction of travel left, swivel the folding tine arms into working position starting from the
front.
•
Pull linch pin (1).
•
Pull out bolt (2).
CAUTION! When swivelling the tine arms into working position, turn the rotors so that the tine
arms do not collide with the guard.
•
Swivel tine arm (3) into working position.
NOTE! The bolts may get lost when they are not inserted from above and secured.
•
Insert bolt (2) from above.
•
Secure bolt with linch pin (1).
Make sure that the linch pin (1) engages properly (the ring of the linch pin must be located in the
groove of the shaft).
Pos: 31.28 /Überschriften/Überschriften 2/P-T/Schutzbügel in Arbeitsstellung bringen @ 2\mod_1202972231499_78.docx @ 63393 @ 2 @ 1
11.4
Move the hoop guards to the working position.
Pos: 31.29 /BA/Sicherheit/7. Gefahrenhinweise alt/Wartung - Quetschgefahr @ 2\mod_1202971999343_78.docx @ 63374 @ @ 1
Warning - Crush hazard!
Effect: Injury to hands
Do not hold onto hoop guards to swivel within range of the rotating points.
Pos: 31.30 /BA/Bedienung /Schwader/Schutzbügel/Schutzbügel in Arbeitsstellung bringen Bild SW TC 680_760 @ 213\mod_1389957893594_78.docx @ 1748407 @ @ 1
Fig. 32
Pos: 31.31 /BA/Bedienung /Schwader/Schutzbügel/Schutzbügel in Arbeitsstellung bringen Text SW700#_800#_900# @ 133\mod_1350033039848_78.docx @ 1180812 @ @ 1
•
Swivel the hoop guard (1) to the outside into working position and allow the locking (2) to
lock in place.
Pos: 31.32 /Layout Module /---------------Seitenumbruch---------------- @ 0\mod_1196175311226_0.docx @ 4165 @ @ 1
1
2
2
1
2
1
Operation
SW9070017
SW700068_1
63
