10.1

Preparations for road travel

Pos: 29.8 /BA/Fahren und Transport/Schwader/Prüfen Sie vor der Straßenfahrt, dass Swadro TC 680_TC 760 @ 302\mod_1414054680489_78.docx @ 2356095 @ @ 1

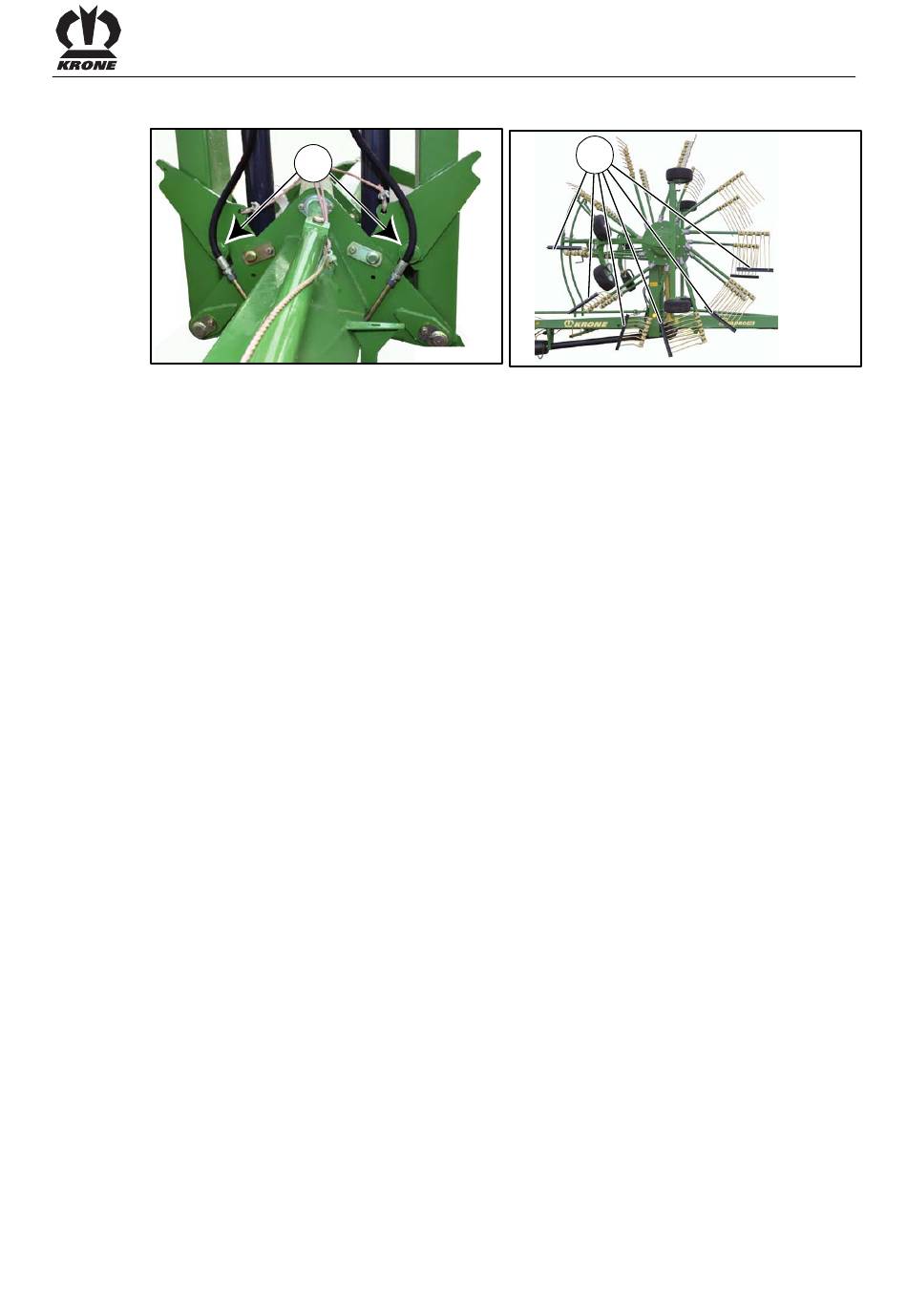

Fig. 23
Before road travel, make certain that
• the machine is fully and correctly hitched.
• the PTO shaft is switched off and the rotors have come to a standstill.
• the rotors are locked.
• the rotor arms are completely retracted, in case of working width adjustment design.
• the operation panel is switched off, in case of the electro-hydraulic single-rotor lifting
mechanism design.
• the machine is in the transport position.
• all hydraulic control units are in neutral position.
• the retaining bolts are correctly engaged in the lockings (1).
• the tine guards (2) are attached on the tines which are located in transport position below 2
m.
• the lighting system is working.
• the lower links are lowered to a height of 355 mm to the ground in order to meet the
transport height.
Pos: 29.9 /Layout Module /---------------Seitenumbruch---------------- @ 0\mod_1196175311226_0.docx @ 4165 @ @ 1
1
SW700063
Driving and Transport
2
SW700062_1
55
