Operation
Pos: 31.22 /Überschriften/Überschriften 2/U-Z/Zinkenarme in Arbeitstellung schwenken @ 2\mod_1202709358751_78.docx @ 59873 @ 2 @ 1
11.3

Swivel tine arms to working position.

Pos: 31.23 /BA/Sicherheit/8. Voraussetzungen/Handlungsanweisung für alle Maschinen/Handlungsanweisung: Maschine stillsetzen und sichern @ 274\mod_1404365253849_78.docx @ 2065151 @ @ 1
• Shut down and safeguard the machine, see chapter Safety -> Safety routines, "Shutting
down and safeguarding the machine".
Pos: 31.24 /BA/Bedienung /Schwader/Kreiselarretierung lösen @ 303\mod_1414416459527_78.docx @ 2359368 @ @ 1
Releasing rotor lock

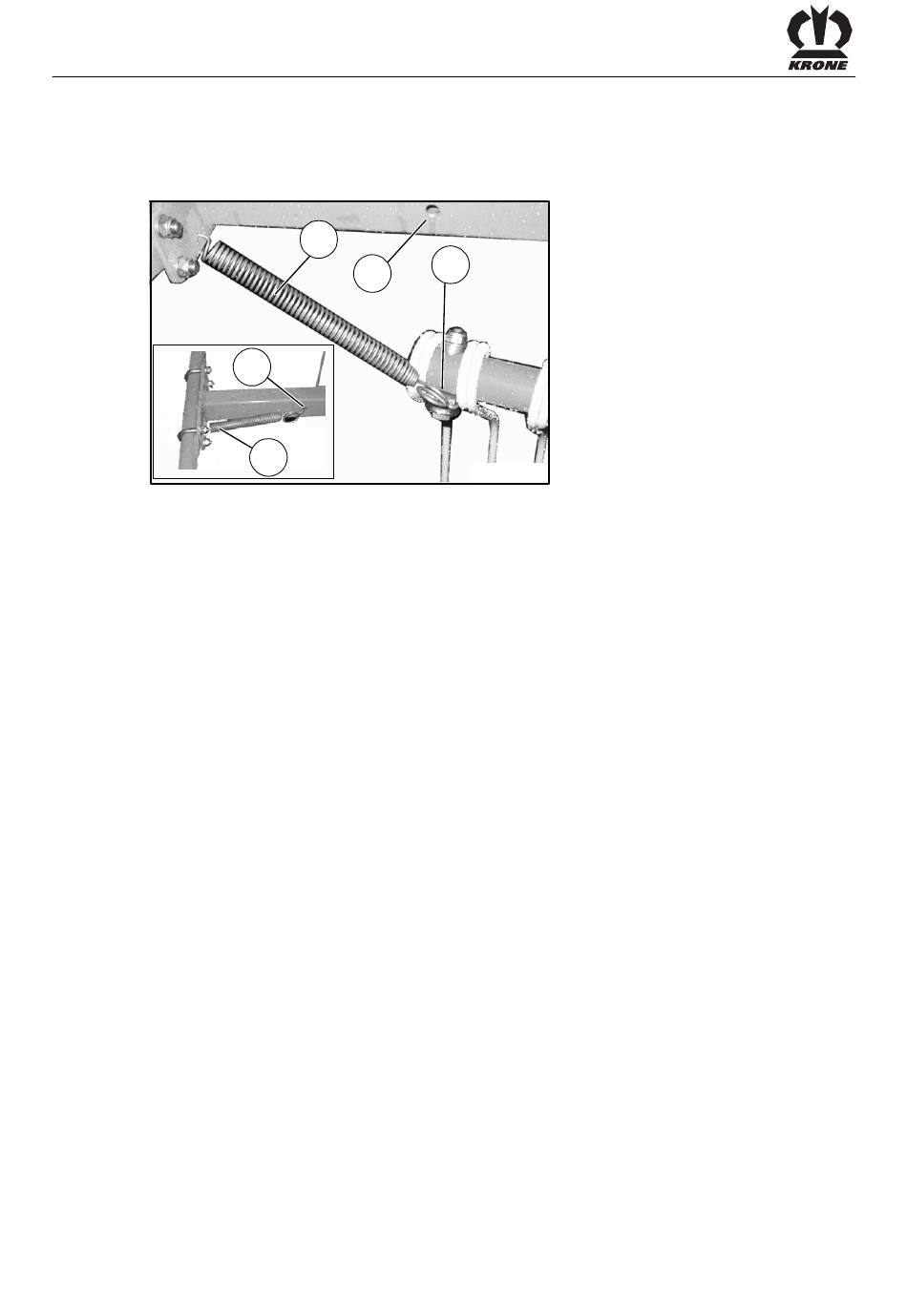

Fig. 30
• Lower outrigger arms into working position.
• Switch off tractor and secure it against the possibility of rolling away.
• To release rotor lock, loosen the tension spring (1) out of the fastening clamp (2) of the tine.
• Hang the tension spring into the retaining bore hole (3).
Pos: 31.25 /Layout Module /---------------Seitenumbruch---------------- @ 0\mod_1196175311226_0.docx @ 4165 @ @ 1
62
1
3
3
1
2
SW700036
