Control and Display Elements

Pos: 23.2 /BA/Maschinenbeschreibung/SchwaderFunktionsübersicht Standard (2014-11-18 14:43:16) @ 250\mod_1396939092825_78.docx @ 1936072 @ @ 1

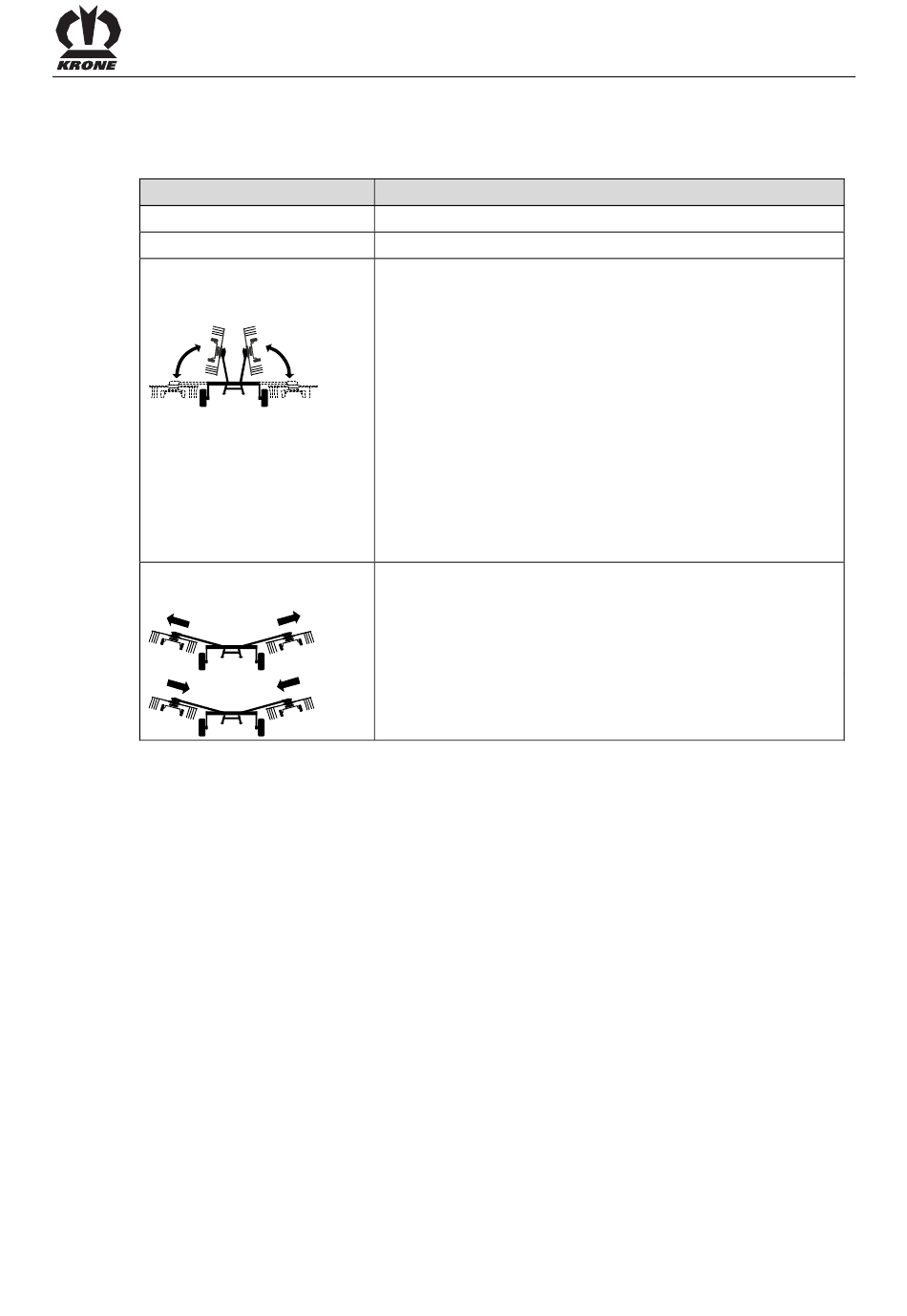

The following table shows the functions on the machine (depending on machine design)
Function
Crank on left rotor
Crank on right rotor
Single-action control unit
(red 1+)
Double-action control unit
(blue 2+/ blue 2-)
Pos: 23.3 /Layout Module /---------------Seitenumbruch---------------- @ 0\mod_1196175311226_0.docx @ 4165 @ @ 1
Description
• Increase or reduce the rotor height of the left rotor.
• Increase or reduce the rotor height of the right rotor.
From transport position to working position:
• Pull the operating cable and keep it under tension.
• Float position (red 1+): Lowers the machine from
transport position to working position.
Headland position:
• Pressure (red 1+): Raises the machine from working
position to headland position.
• Float position (red 1+): Lowers the machine from
headland position to working position.
From working position to transport position:
• Switch off PTO drive.
• Pull the operating cable and keep it under tension.
• Pressure (red 1+): Raises the machine from working
position to transport position.
Increasing the working width
• Pressure (blue 2+): Increase the working width.
Reducing the working width
• Pressure (blue 2+): Reduce the working width.
