Setting the Rotor Inclination

Pos: 35.6.2 /BA/Einstellungen/Schwader/Kreiselfahrwerk/Kreiselneigung einstellen Text Einleitung Swadro TC 680_TC 760 @ 223\mod_1392114706229_78.docx @ 1808993 @ @ 1
The rotor pitch angle has been set at a transverse angle to the chassis in the factory. If the
crops are not picked up properly, the working quality can be improved by adjusting the rotor
pitch.
The rotor pitch angle is adjusted for each rotor via the guide wheels at the chassis. The best
results are achieved if the rotor pitch adjustment ensures the tines are closer to the ground level
when outputting the crops than at the start when picking up the crops.
Pos: 35.6.3 /BA/Sicherheit/8. Voraussetzungen/Handlungsanweisung für alle Maschinen/Handlungsanweisung: Maschine stillsetzen und sichern @ 274\mod_1404365253849_78.docx @ 2065151 @ @ 1
• Shut down and safeguard the machine, see chapter Safety -> Safety routines, "Shutting
down and safeguarding the machine".
Pos: 35.6.4 /Layout Module /----------------Leerzeile-------------------- @ 240\mod_1395147357027_0.docx @ 1890988 @ @ 1
Pos: 35.6.5 /Überschriften/Überschriften 3/K-O/Kreiselfahrwerk (Serie) @ 223\mod_1392126168498_78.docx @ 1810305 @ 3 @ 1
12.1.1

Rotor chassis (serial)

Pos: 35.6.6 /BA/Einstellungen/Schwader/Kreiselfahrwerk/Kreiselfahrwerk Bild Swadro TC 680_TC 760_TS 620_ TS 680 @ 247\mod_1396424074075_78.docx @ 1925403 @ @ 1

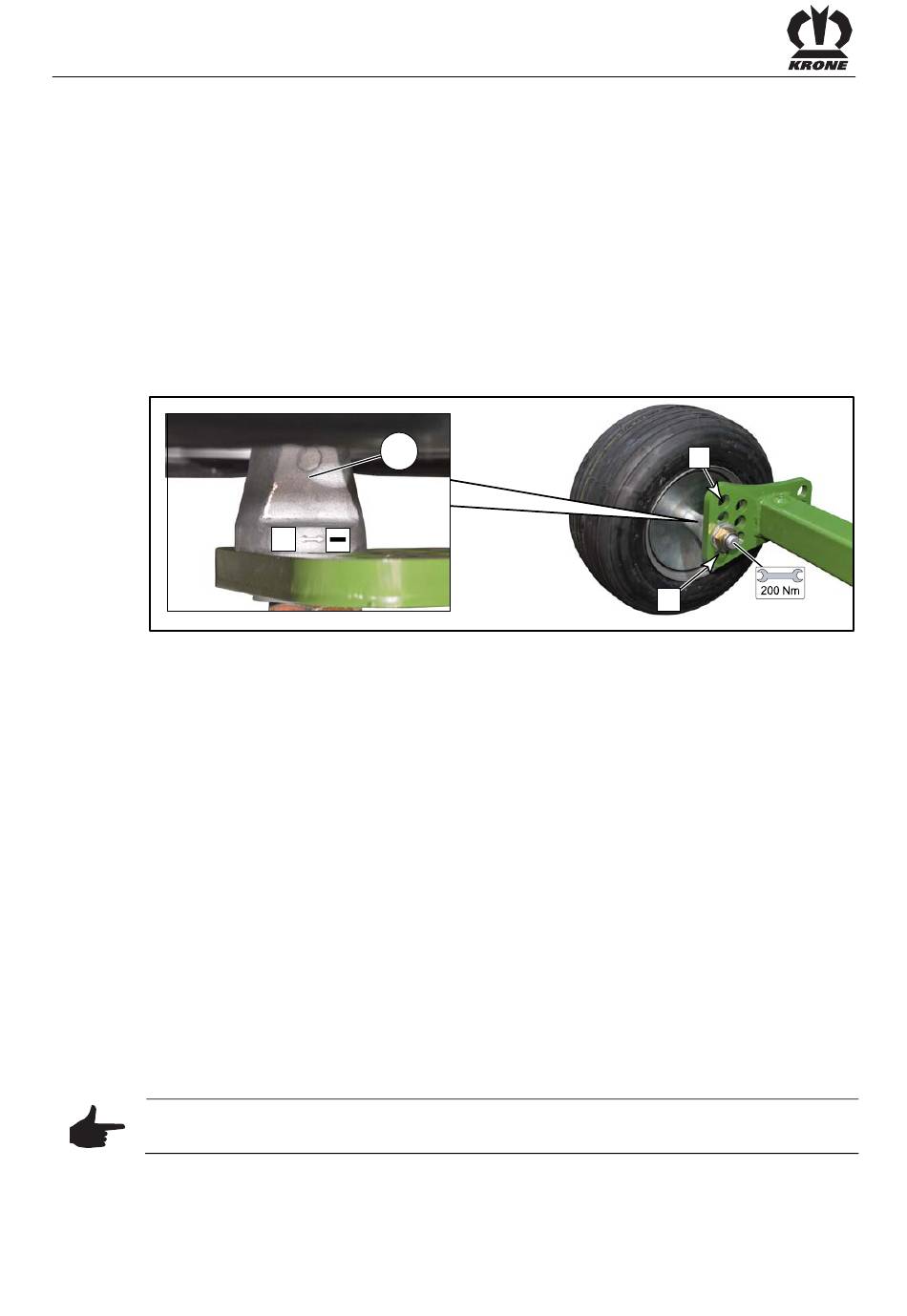

Fig. 45
Pos: 35.6.7 /Layout Module /----------------Leerzeile 5 Pt.-------------------- @ 120\mod_1342592918145_0.docx @ 1092566 @ @ 1
Pos: 35.6.8 /BA/Einstellungen/Schwader/Kreiselfahrwerk/Kreiselneigung einstellen Text Position_Mittel- und Seitenschwader @ 247\mod_1396419253305_78.docx @ 1924902 @ @ 1
Setting the rotor inclination:
Pos. I = Reducing rotor inclination
Pos. II = Increasing rotor inclination
Pos: 35.6.9 /BA/Einstellungen/Schwader/Kreiselfahrwerk/Kreiselfahrwerk Vorgehensweise Swadro TC 680_TC 760 @ 303\mod_1414143022104_78.docx @ 2357613 @ @ 1
Do not step under the raised rotors.
• To do this, raise the outrigger arms until the changeover work can be performed.
• To set rotor inclination, dismount the rear guide wheels and move them in the hole pattern.
Pos: 35.6.10 /BA/Einstellungen/Schwader/Kreiselfahrwerk/Kreiselfahrwerk Feinjustierung Exzenter_Mittel- und Seitenschwader @ 247\mod_1396419059030_78.docx @ 1924843 @ @ 1
Vernier adjustment via eccentric cam (1):
− = Reducing rotor inclination
+ = Increasing rotor inclination
Pos: 35.6.11 /BA/Einstellungen/Schwader/Kreiselfahrwerk/Kreiselneigung einstellen über Exzenter im Radbolzen Swadro TC 680_TC 760 _TC 880 @ 303\mod_1414144684500_78.docx @ 2357644 @ @ 1
Do not step under the raised rotors.
• Raise the outrigger arms until the changeover work can be performed.
• Loosen the nut of the wheel bolt.
• Turn the eccentric (1) to set the rotor inclination.
• Tighten the nut of wheel bolt.
Pos: 35.6.12 /BA/Einstellungen/Schwader/Kreiselfahrwerk/Hinweis schweres Futter - Fahrwerk innen möglichst niedrig einstellen @ 4\mod_1213084838226_78.docx @ 86157 @ @ 1
Note
If the forage is heavy, adjust the inner running gear as low as possible!
