8.5

PTO shaft

Pos: 25.17.2 /Überschriften/Überschriften 3/K-O/Längenanpassung @ 1\mod_1201687632810_78.docx @ 53589 @ 3 @ 1
8.5.1

Length adjustment

Pos: 25.17.3 /BA/Erstinbetriebnahme/Gelenkwelle/Traktorwechsel Gelenkwellenlänge beachten @ 6\mod_1214996938591_78.docx @ 97742 @ @ 1
Caution! - Changing the tractor
Effect: Damage to the machine
When using the machine for the first time and whenever changing the tractor Check PTO shaft
for the correct length. If the length of the PTO shaft does not match the tractor, always observe
the chapter entitled "Adjusting the length of the PTO shaft".

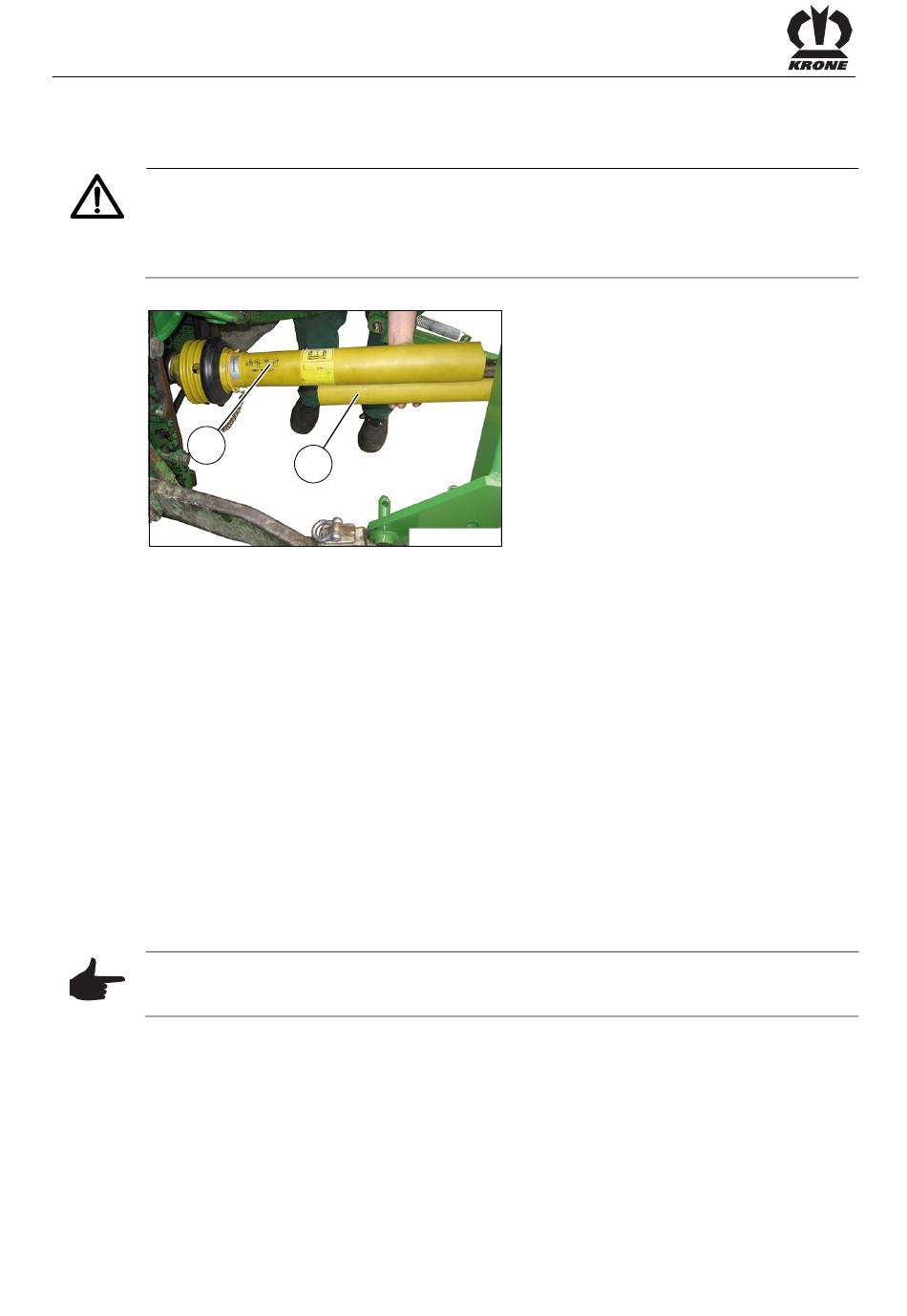

Pos: 25.17.4 /BA/Erstinbetriebnahme/Gelenkwelle/Schwader/Längenanpassung Bild Schwader @ 292\mod_1410936317652_78.docx @ 2299128 @ @ 1
2
Fig. 12
Pos: 25.17.5 /BA/Erstinbetriebnahme/Gelenkwelle/Schwader/Längenanpassung_mit Weitwinkel Text_Schwader und Wender neu @ 247\mod_1396367821732_78.docx @ 1924335 @ @ 1
The length of the universal shaft must be adjusted.
• Connect the machine to the tractor without universal shaft.
• Raise the lower links of the tractor.
• Drive three-point hitch in all the way.
• Position machine in the shortest universal shaft position setting.
The shortest position is reached if the PTO shaft end of the tractor is on the same hight
(horizontal) as the drive journal of the machine.
• Place the machine onto the parking support.
• Turn off the tractor, remove the ignition key and carry it with you. Secure the machine from
rolling away.
• Disassemble the universal shaft.
• Attach universal shaft half with wide-angle coupling (1) on machine side.
• Attach the other universal shaft half (2) on tractor side.
Observe the marking on the universal shaft.
For further procedure, please refer to the operating instructions of the universal shaft
manufacturer.
Pos: 25.17.6 /BA/Erstinbetriebnahme/Gelenkwelle/Hinweis Schwenkbereich/Freiraum beachten @ 6\mod_1214544723898_78.docx @ 94820 @ @ 1
Note
Check the swivel range and clearance of the PTO shaft! Damage can be caused if the tractor or
the machine touch the PTO shaft (e.g. hitching device, hitching frame, lower suspension arms).
