11.9

Raising Outrigger Arms into Transport Position

Pos: 31.66 /BA/Sicherheit/7. Gefahrenhinweise alt/Schwader/Achtung - Ausheben der Kreisel Zapfwelle abschalten @ 2\mod_1202717797986_78.docx @ 60142 @ @ 1
Caution!
Before swivelling the mowing unit up into transport position, turn off the PTO.
• Before lifting the rotors from the headland position, turn off PTO shaft and wait for rotors to
come to a standstill.
• Nobody should be in the swivel range of the rotors.
Pos: 31.67 /BA/Bedienung /Schwader/Hinweis: Breitenverstellung (Arbeitsbreite) einfahren @ 77\mod_1310372456788_78.docx @ 668133 @ @ 1
Note
Before switching from the working to the transport position, make sure the width adjustment
(working width) is fully retracted.
Pos: 31.68 /Überschriften/Überschriften 3/A-E/B/Bei Ausführung ohne Einkreiselaushebung @ 77\mod_1310110349917_78.docx @ 667808 @ 3 @ 1
11.9.1

For design without single-rotor lifting mechanism

Pos: 31.69 /BA/Bedienung /Schwader/Kreiselarme senken/heben/Kreiselarme heben ohne Einkreiselaushebung Bild SW 700#_800# @ 133\mod_1350286904276_78.docx @ 1181094 @ @ 1
1

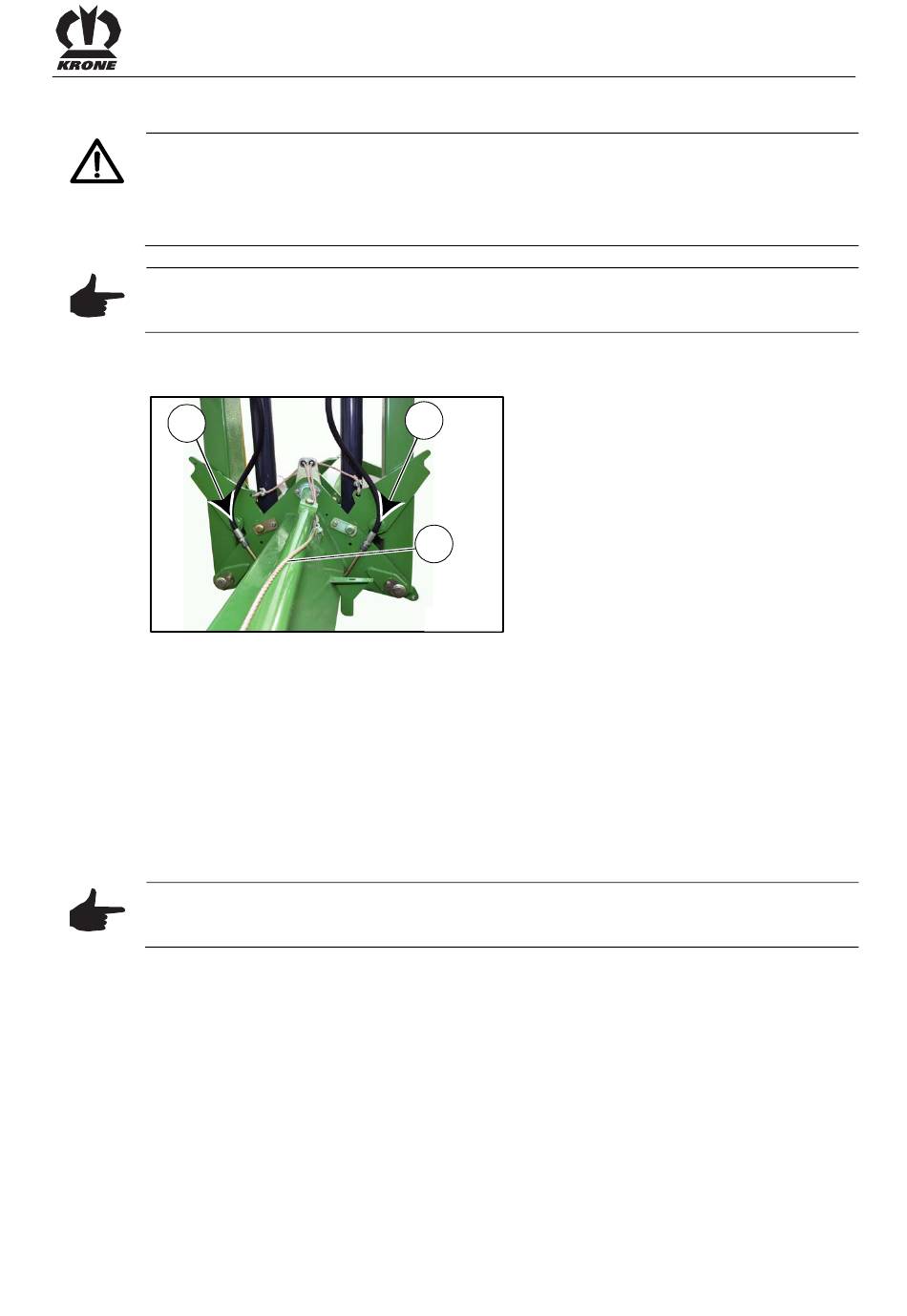

Fig. 39
Pos: 31.70 /BA/Bedienung /Schwader/Kreiselarme senken/heben/Kreiselarme heben mit und ohne Einkreiselaushebung Text Swadro TC 680_TC 760_TC 760 X-tr @ 221\mod_1391690340653_78.docx @ 1798756 @ @ 1
• Switch on the tractor.
• In order to lift the locks (1), pull the operating rope (2) and keep it tensioned.
• Actuate the single-action control unit until the rotors have been lifted to the transport
position.
• Release the operating rope.
• Actuate the single-action control unit until the locks (1) on the right and left-hand side
engage in the retaining bolts.
• Set all hydraulic control units to the neutral position.
• Visually inspect whether the retaining bolts have engaged correctly in the locks (1).
Pos: 31.71 /BA/Bedienung /Schwader/Kreiselarme senken/heben/Hinweis Achten Sie auf die Transportverriegelung @ 77\mod_1310110710995_78.docx @ 667836 @ @ 1
Note
Make certain the transport locks engage correctly and the actuating rope is not tight. Perform a
visual inspection to ensure the locks (1) have engaged correctly.
Pos: 31.72 /Layout Module /---------------Seitenumbruch---------------- @ 0\mod_1196175311226_0.docx @ 4165 @ @ 1
1
2
SW700072
Operation
71
