Type 8696
Disassembly
2. Electrical connection
Danger!
risk of electric shock.
▶ Before working on equipment or device, switch off the power supply and secure to prevent reactivation.
▶ Observe applicable accident prevention and safety regulations for electrical equipment.
→
Loosen the circular plug-in connector.
3. Mechanical connection
→
Loosen the fastening screws.
→
Remove the positioner upwards.

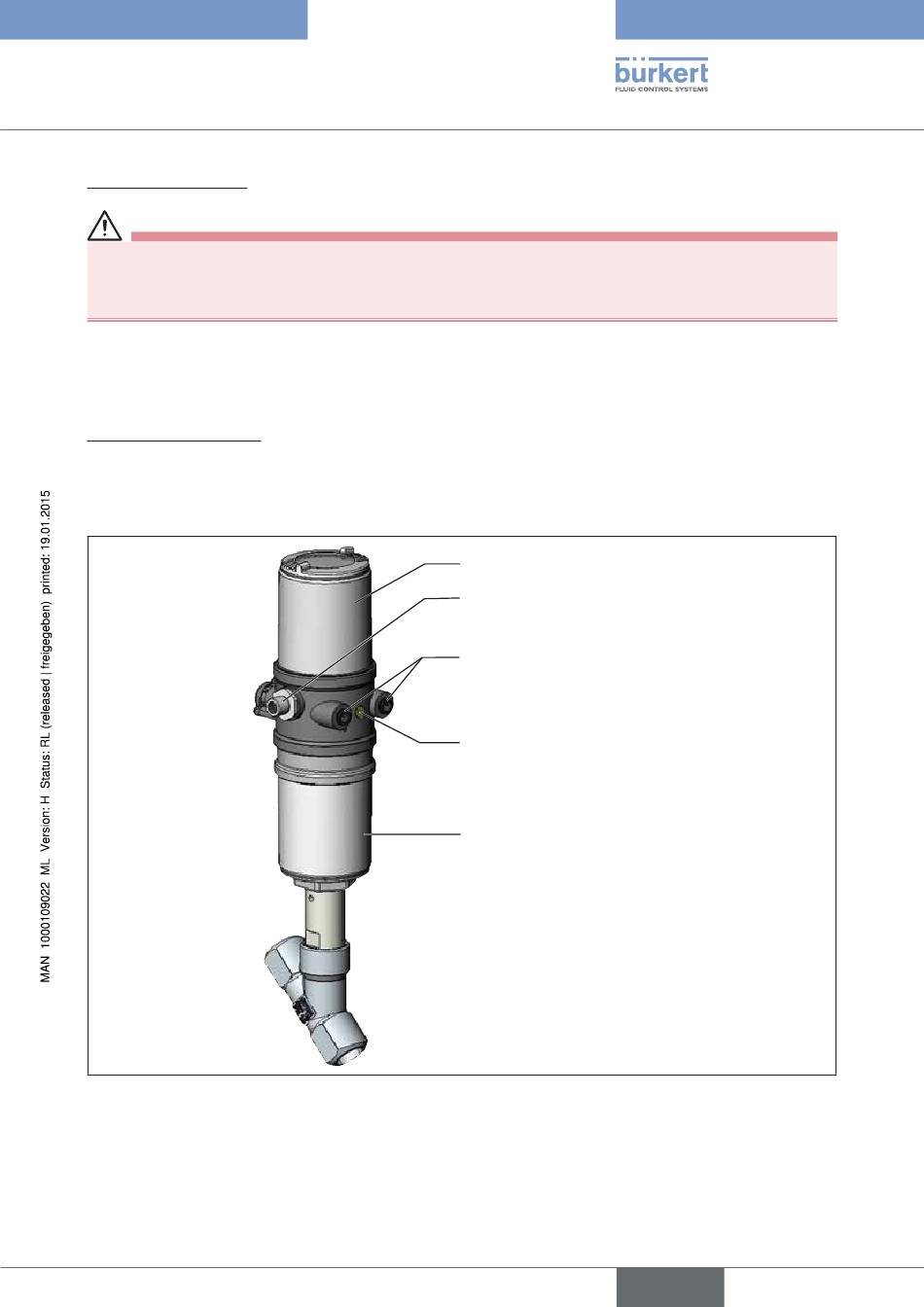

Figure 37:
Disassembly the positioner
Positioner
Electrical connection
circular plug-in connector
Pneumatic connections
Fastening screws (2x)
Actuator
