noTe!
Breakage of the pneumatic connection pieces due to rotational impact.
▶ When unscrewing and screwing in the transparent cap, do not hold the actuator of the process valve but the
connection housing.

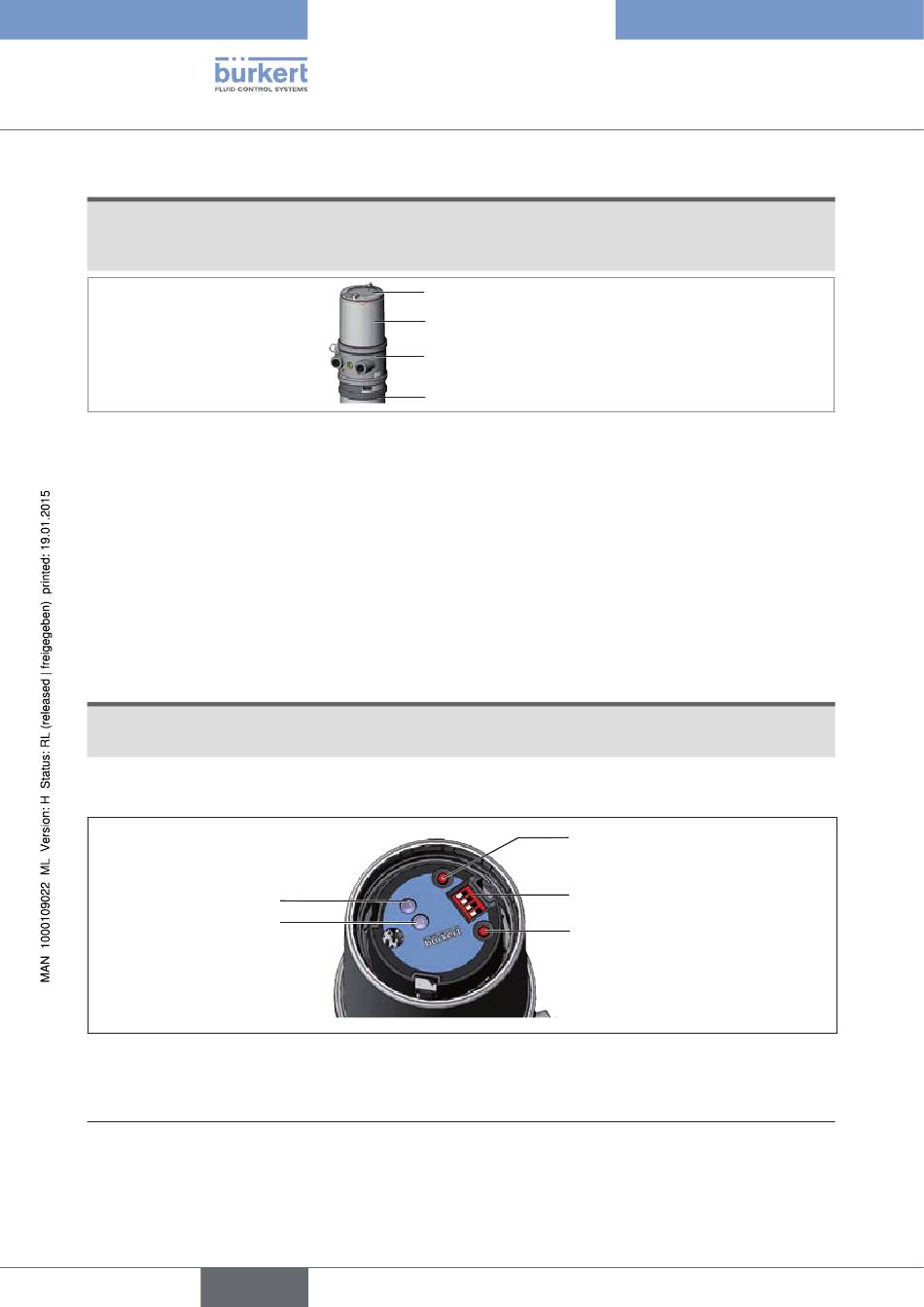

Figure 25: Open positioner
→
Screw off the transparent cap of the positioner to operate the keys and DIP switches.
→
Start the X.TUNE by pressing key 1
While the X.TUNE is running, LED 1 flashes quickly (green).
When the automatic adjustment is complete, LED 1 flashes slowly (green)
The changes are automatically transferred to the memory (EEPROM) provided the X.TUNE function is successful.
noTe!
Damage or malfunction due to penetration of dirt and humidity.
▶ To observe degree of protection IP65 / IP67, screw the transparent cap in all the way.
→
Close the device (assembly tool: 674078
Figure 26: Starting X.TUNE
The X.TUNE can also be started via communications software.
16)
if a fault occurs, LED 1 is lit red.
17)
The assembly tool (674078) is available from your Bürkert sales office
18)
44
for 5 s.
16)
).
18)
LED 2
LED 1
english
Transparent cap
Body casing
Connection housing
Actuator
.
17)
Key 1
DIP switches
Key 2
Type 8696
Start-up
