Supply voltage (circular plug M12 x 1, 8-pole)
pin Wire color
15)
4 yellow
3 green

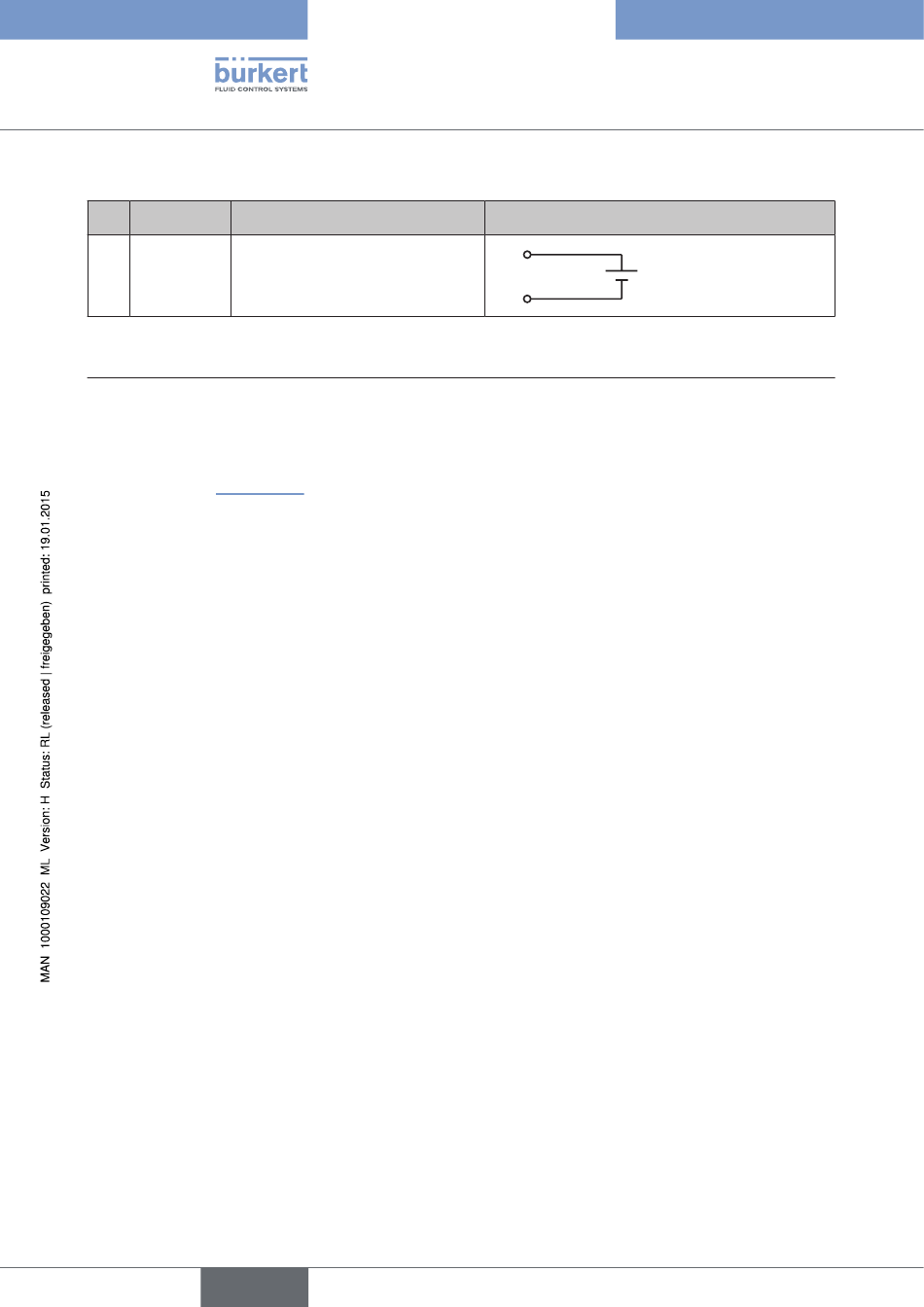

Table 16: Pin assignment - supply voltage (circular plug M12 x 1, 8-pole)
The indicated colors refer to the connecting cable available as an accessory (919061)
15)
When the supply voltage is applied, the positioner is operating.
→
Make the required basic settings and actuate the automatic adjustment of the positioner, as described in the
chapter entitled "11 Start-up".
42
configuration
+ 24 V
GND
english
Type 8696
Electricalinstallation24VDC
external circuit
4
24 V DC ± 10 %
max. residual ripple 10 %
3
