Ul Additional Label; Electrical Data - bürkert TopControl Basic 8696 Bedienungsanleitung

Type 8696
Technicaldata
6.8 ul additional label
Example:

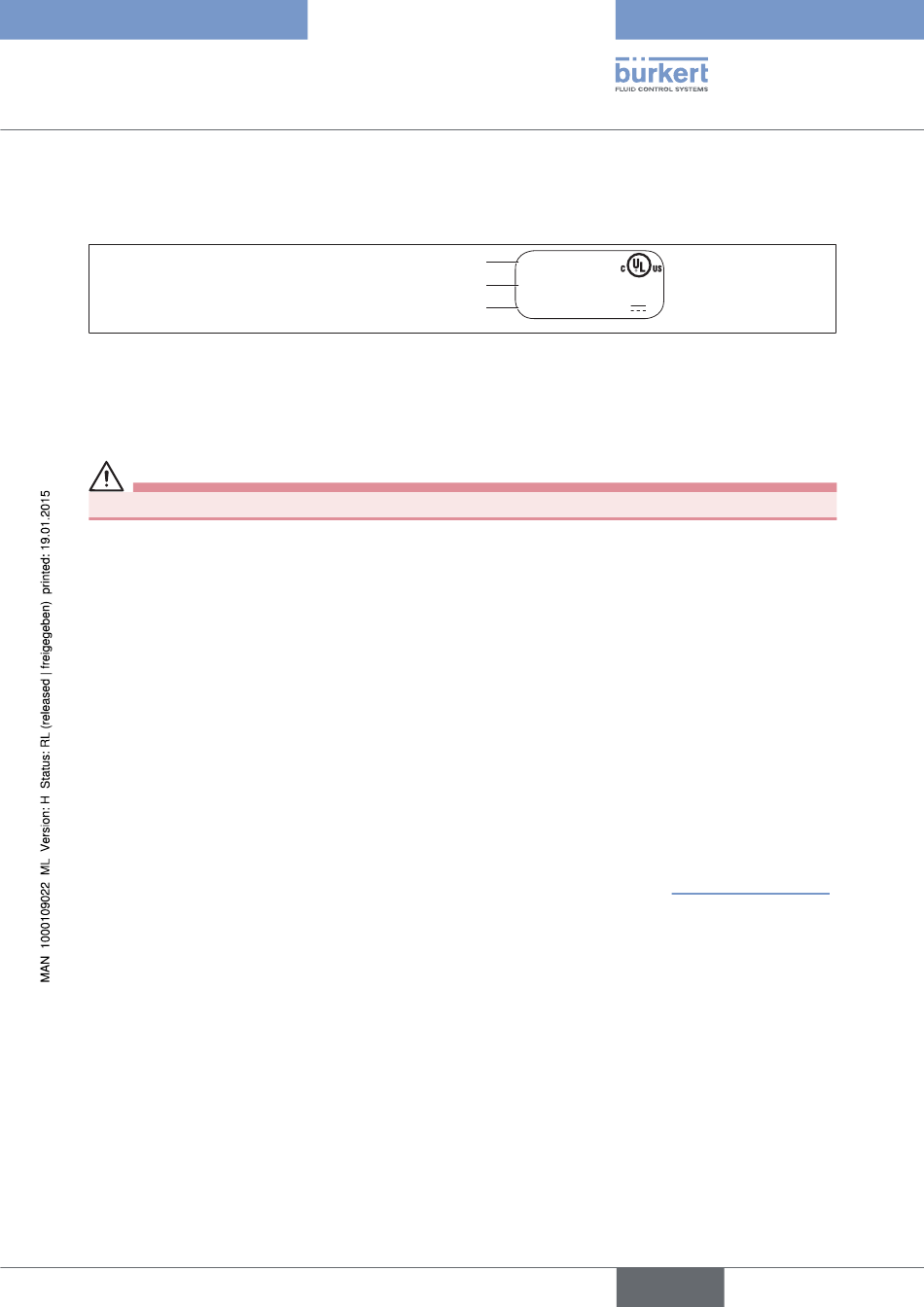

Figure 9: UL additional label (example)
6.9 electrical data
Warning!
Only circuits with limited power may be used for UL approved components according to "NEC Class 2".
Connections
Pilot valve
Operating voltage
Power input
Input resistance
for set-point value signal
Protection class
Analogue position feedback
max. load
for current output 0/4 – 20 mA
Binary input
Communications interface
Degree of protection
Circuit with limited power
Supply voltage device
Circular plug-in connector (M12 x 1, 8-pole)
24 V DC ± 10% - max. residual ripple 10 %
≤ 3.5 W
180 Ω at 0/4 – 20 mA / 12 bit resolution
3 as per DIN EN 61140 (VDE 0140-1)
560 Ω
0 – 5 V = log "0",
12 – 30 V = log "1"
inverted input in reverse order
Direct connection to PC via USB adapter with integrated interface driver,
communication with communications software, see "Table 25: Accessories"
Type 4X enclosure
NEC Class 2 only
Supply voltage: 24 V
