Type 8696
Installation
Connection
pieces

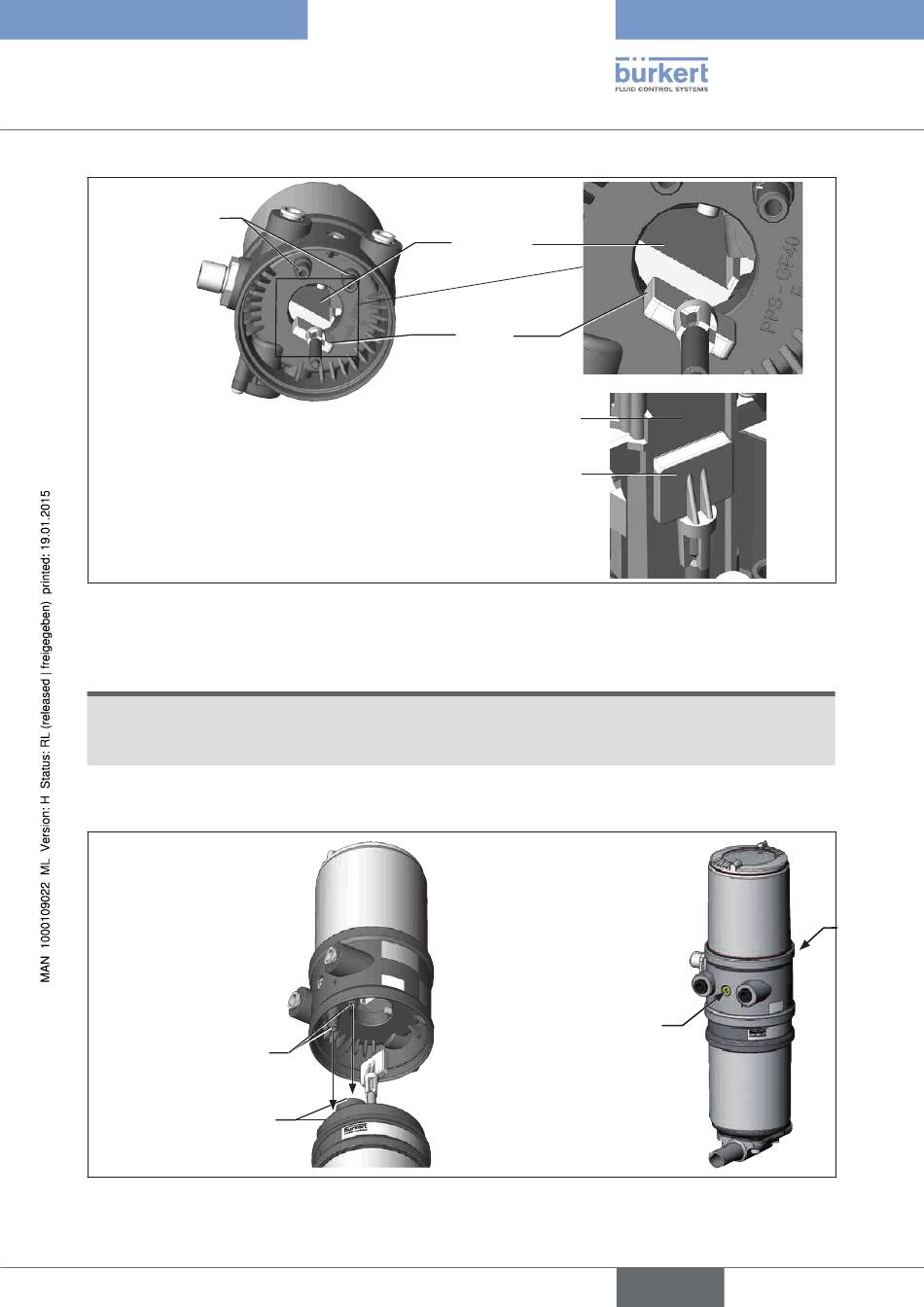

Figure 19:
Aligning the puck
→
Push the positioner, without turning it, onto the actuator until no gap is visible on the form seal.
noTe!
too high torque when screwing in the fastening screw does not ensure degree of protection ip65 /
ip67.
▶ The fastening screws may be tightened to a maximum torque of 1.5 Nm only.
→
Attach the positioner to the actuator using the two side fastening screws. In doing so, tighten the screws only
hand-tight (max. torque: 1.5 Nm).
Connection
pieces
Pilot air ports
(actuator)
Figure 20:
Installation of the positioner
Guide rail
Puck
Guide rail
Puck
Fastening screws
max. 1.5 Nm
