The following basic function can be changed via the communications software only.
function Description
INPUT Entry of the standard signal input
for the set-point value
RESET Reset to factory settings
X.TUNE Automatic adjustment of the posi-
tioner to the relevant operating
conditions
Table 18: Basic function of communications software
The INPUT, CUTOFF and CHARACT functions can be parameterized via the communications software.
12.1.1 DIR.CMD -
effective direction of the positioner set-point value
You can use this function to adjust the effective direction between the input signal (INPUT) and the nominal
position of the actuator.
Factory setting: DIP switch set to OFF (ascending)
DiP Switches Position
1 ON
OFF
Table 19: DIP switch 1
The effective direction (DIR.CMD) can only be changed via DIP switch 1 in the positioner.
Nominal position

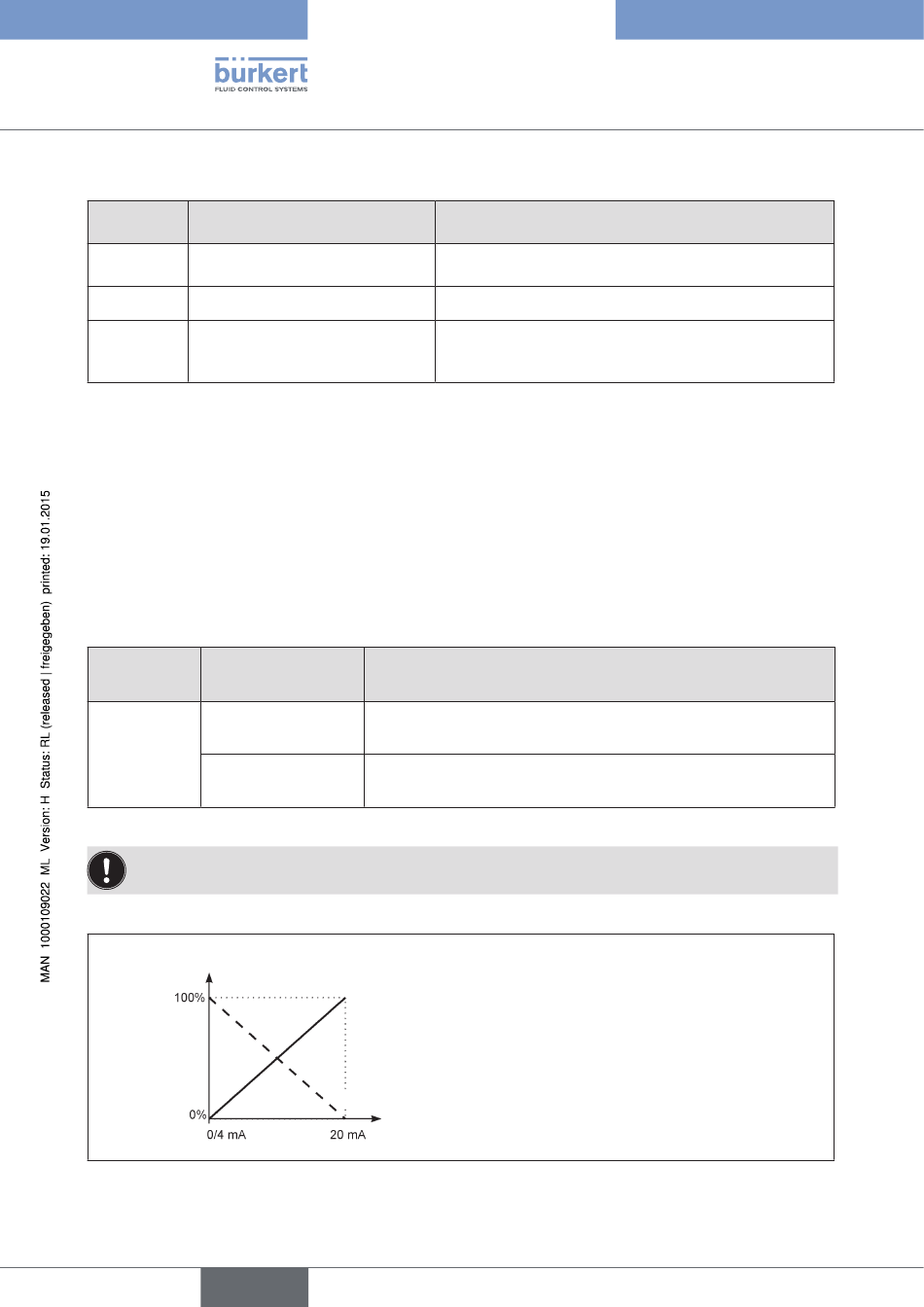

Figure 28: DIR.CMD graph
46
Function
Reversal of the effective direction of the set-point value (DIR.CMD)
(set-point value 20 – 4 mA corresponds to position 0 – 100 %), fall
Normal effective direction of the set-point value
(set-point value 4 – 20 mA corresponds to position 0 – 100 %), rise
rise
fall
Input signal
(INPUT)
english
Type 8696
Operationandfunction
factory setting
4 – 20 mA
