noTe!
Breakage of the pneumatic connection pieces due to rotational impact.
▶ When unscrewing and screwing in the transparent cap, do not hold the actuator of the process valve but the
connection housing.

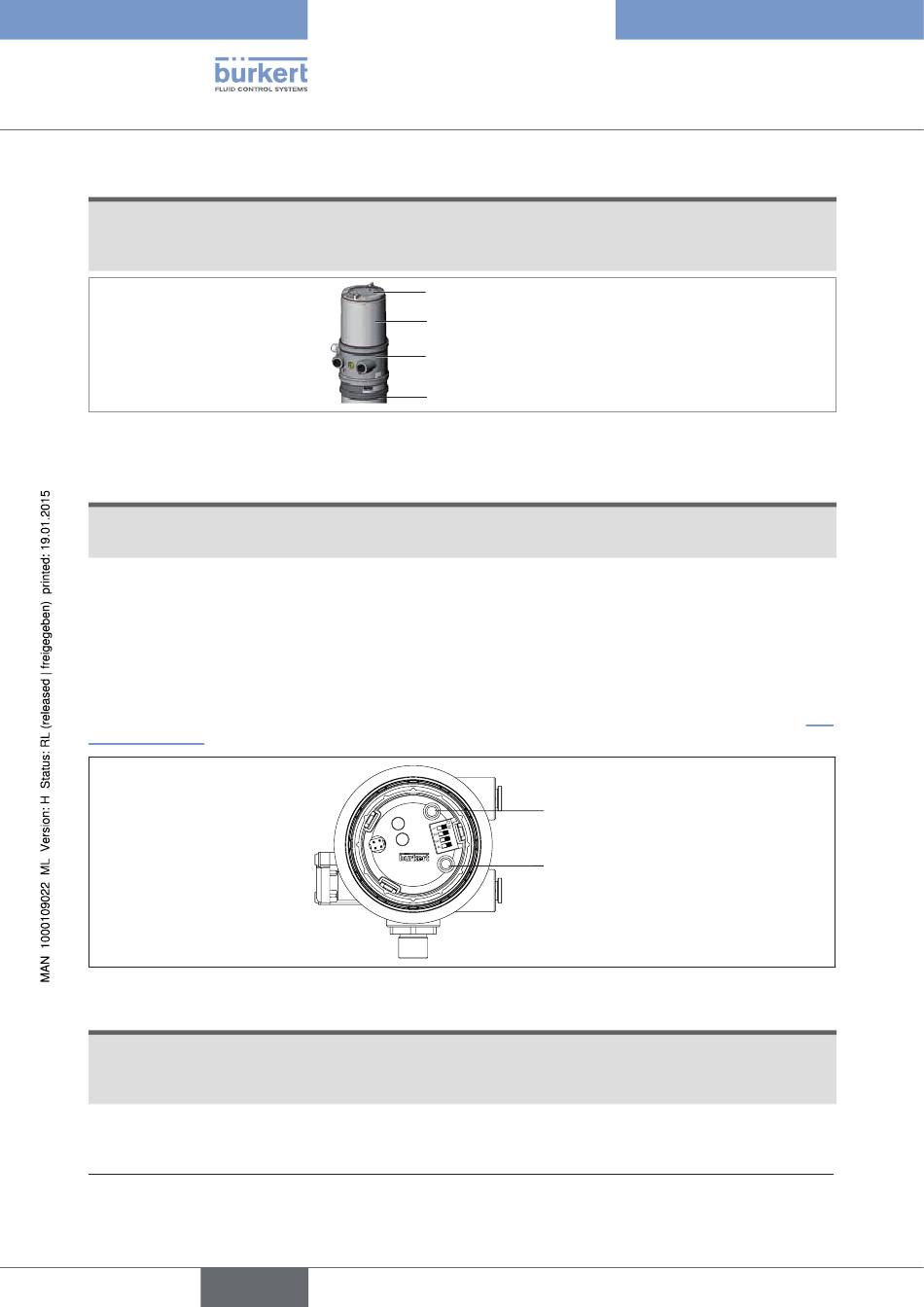

Figure 11: Open positioner
→
Screw off the transparent cap of the positioner to operate the keys and DIP switches.
noTe!
Damage or malfunction due to penetration of dirt and humidity.
▶ To observe degree of protection IP65 / IP67, screw the transparent cap in all the way.
→
Close the device (assembly tool: 674078
7.3 configuration of the keys
The configuration of the 2 keys on the board varies depending on the operating status (AUTOMATIC / MANUAL).
The description of the operating statuses (AUTOMATIC / MANUAL) can be found in the chapter entitled "7.1
Operating status".
Figure 12: Description of the keys
noTe!
Breakage of the pneumatic connection pieces due to rotational impact.
▶ When unscrewing and screwing in the transparent cap, do not hold the actuator of the process valve but the
connection housing.
→
To operate the keys unscrew the transparent cap.
The assembly tool (674078) is available from your Bürkert sales office.
26
7)
).
7)
english
Transparent cap
Body casing
Connection housing
Actuator
Key 1
Key 2
Type 8696
Controlanddisplayelements
