Type 8696
Controlanddisplayelements

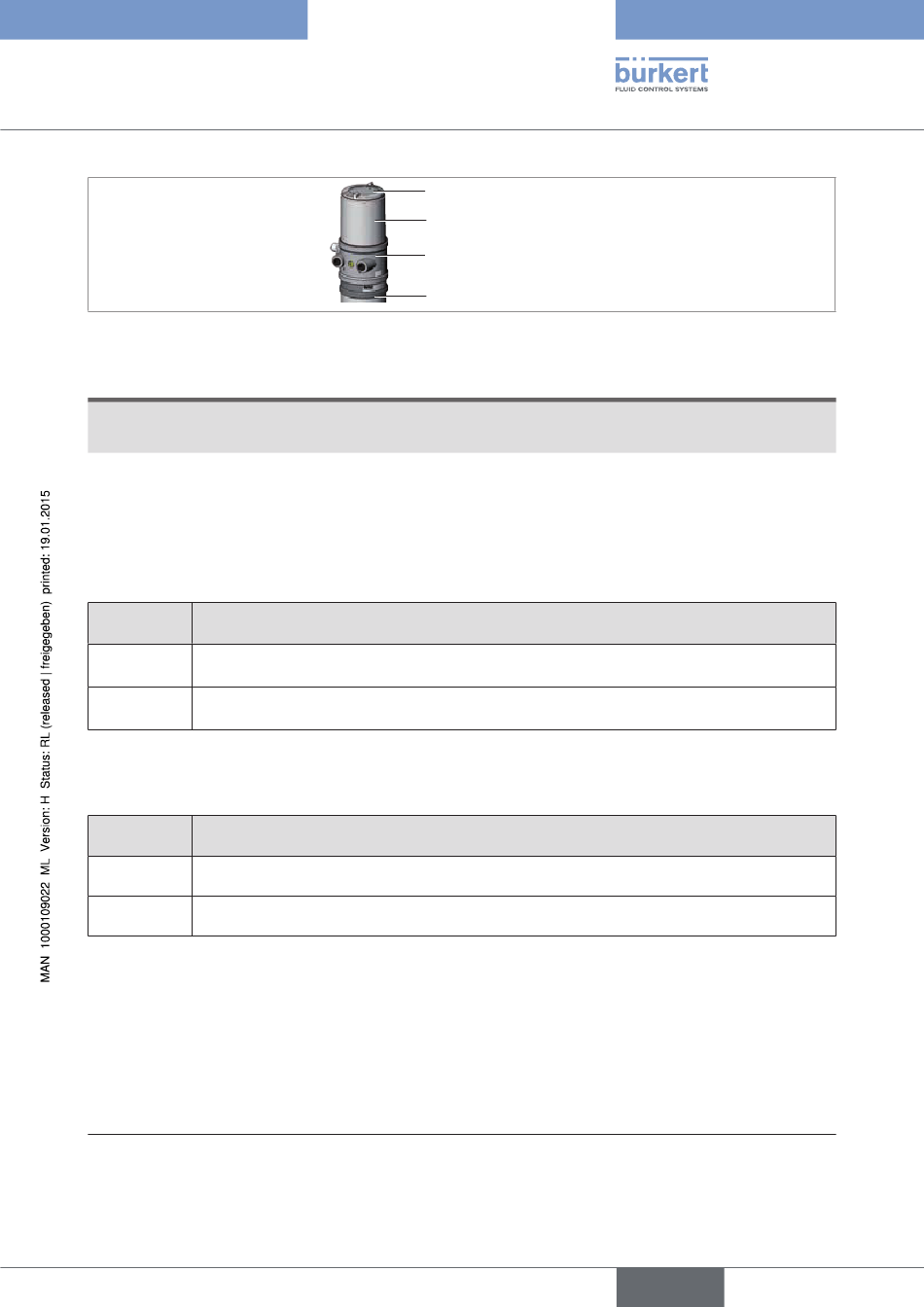

Figure 13: Open positioner
noTe!
Damage or malfunction due to penetration of dirt and humidity.
▶ To observe degree of protection IP65 / IP67, screw the transparent cap in all the way.
→
Close the device (assembly tool: 674078
MANUAL operating status (DIP switch 4 set to ON):
Key Function
1 Aerate
9)
(manually open / close the actuator)
2 Deaerate
9)
(manually open / close the actuator)
Table 7: Configuration of the keys for MANUAL operating status
AUTOMATIC operating status (DIP switch 4 set to OFF):
Key Function
1 Press for 5 s to start the X.TUNE function
2 -
Table 8: Configuration of the keys for AUTOMATIC operating status
The assembly tool (674078) is available from your Bürkert sales office.
8)
No function if the binary input was activated with the "Manual/Auto change-over" via the communications software.
9)
depending on the operating principle of the actuator.
10)
Transparent cap
Body casing
Connection housing
Actuator
).
8)
10)
10)
