Controlanddisplayelements
7 cOnTrOl anD Display elemenTs
The following chapter describes the operating statuses as well as the control and display elements of the
positioner.
For further information on the operation of the positioner, refer to chapter "11 Start-up".
7.1 Operating status
AUTOMATIC (AUTO)
Normal controller mode is implemented and monitored in AUTOMATIC operating state.
→ LED1 flashes green.
MANUAL (MANU)
In MANUAL operating state the valve can be opened and closed manually via the keys.
→ LED1 flashes red / green alternately.
The DIP switch 4 can be used to switch between the two operating states AUTOMATIC and MANUAL.
7.2 control and display elements of the positioner
LED 2
LED 1
Communications
interface

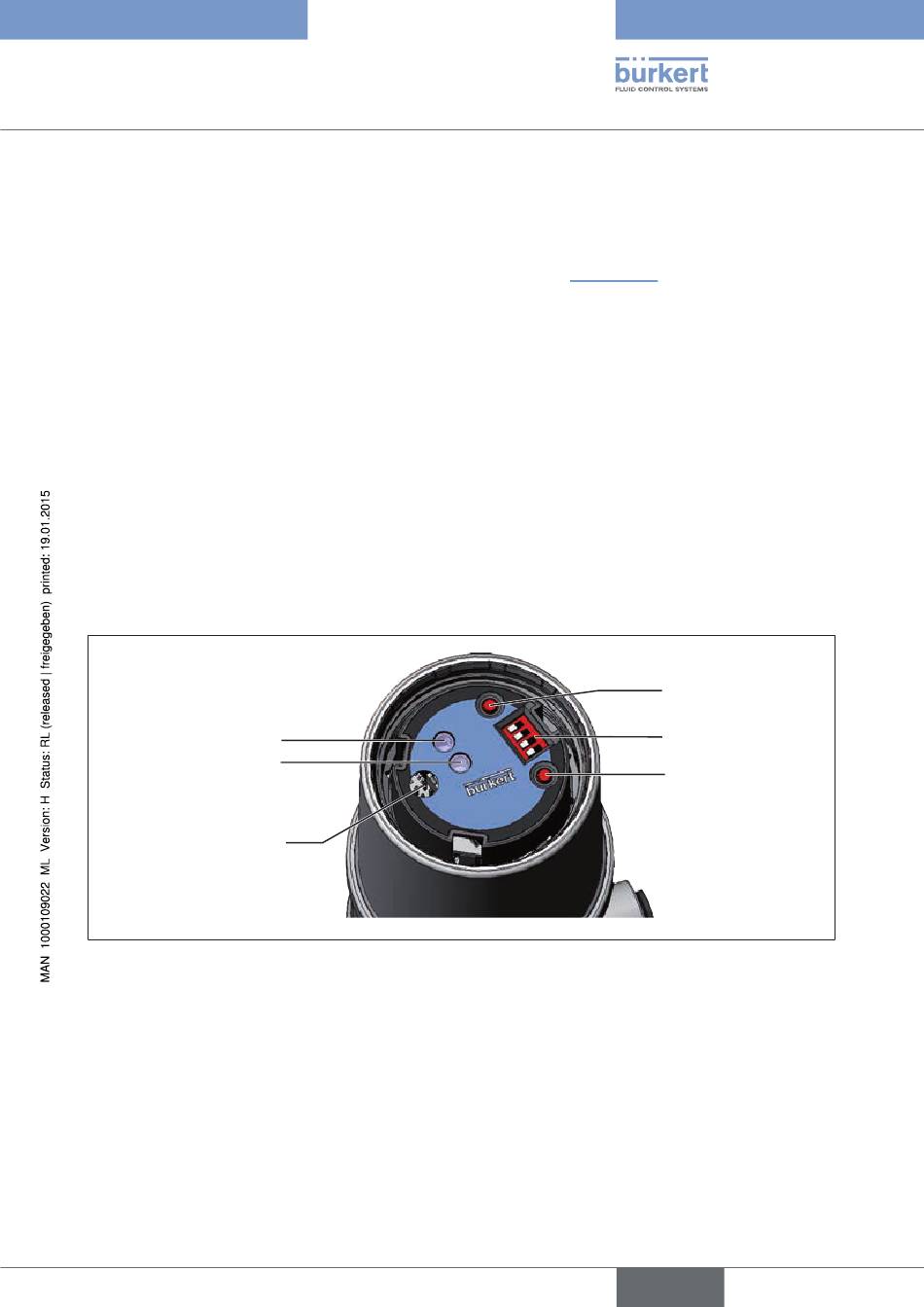

Figure 10: Description of the control elements
The positioner features two keys, a 4-pole DIP switch and 2 2-colored LEDs as a display element.
Key 1
DIP Switches
Key 2
english
